General References

• Bare sheet metal, for example around drilled holes, must be treated with anti-corrosive coating.

• Secure hoses, cables and wiring harnesses with cable ties and fit protective hoses around them at chafing

points.

• Fit edge protectors (split fuel hose, grommet, split-loom, etc.) to sharp edges.

• Replace hose clamps as necessary. Hose clamps should be inspected before re-use. Look for damage to the

screw and to the band due to fatigue, corrosion, or improper installation.

Refer to the manufacturer's instructions as

necessary:

• Remove left-side interior body panels.

• Remove the headliner.

• Remove the overhead package tray.

• Drain the cooling system.

• Remove the battery tray.

• Remove the cover from the power distribu-

tion center under the driver's seat.

WARNING: Review and adhere to all manu-

facturer's recommendations and specifica-

tions when mounting this unit or any

components to the vehicle structure.

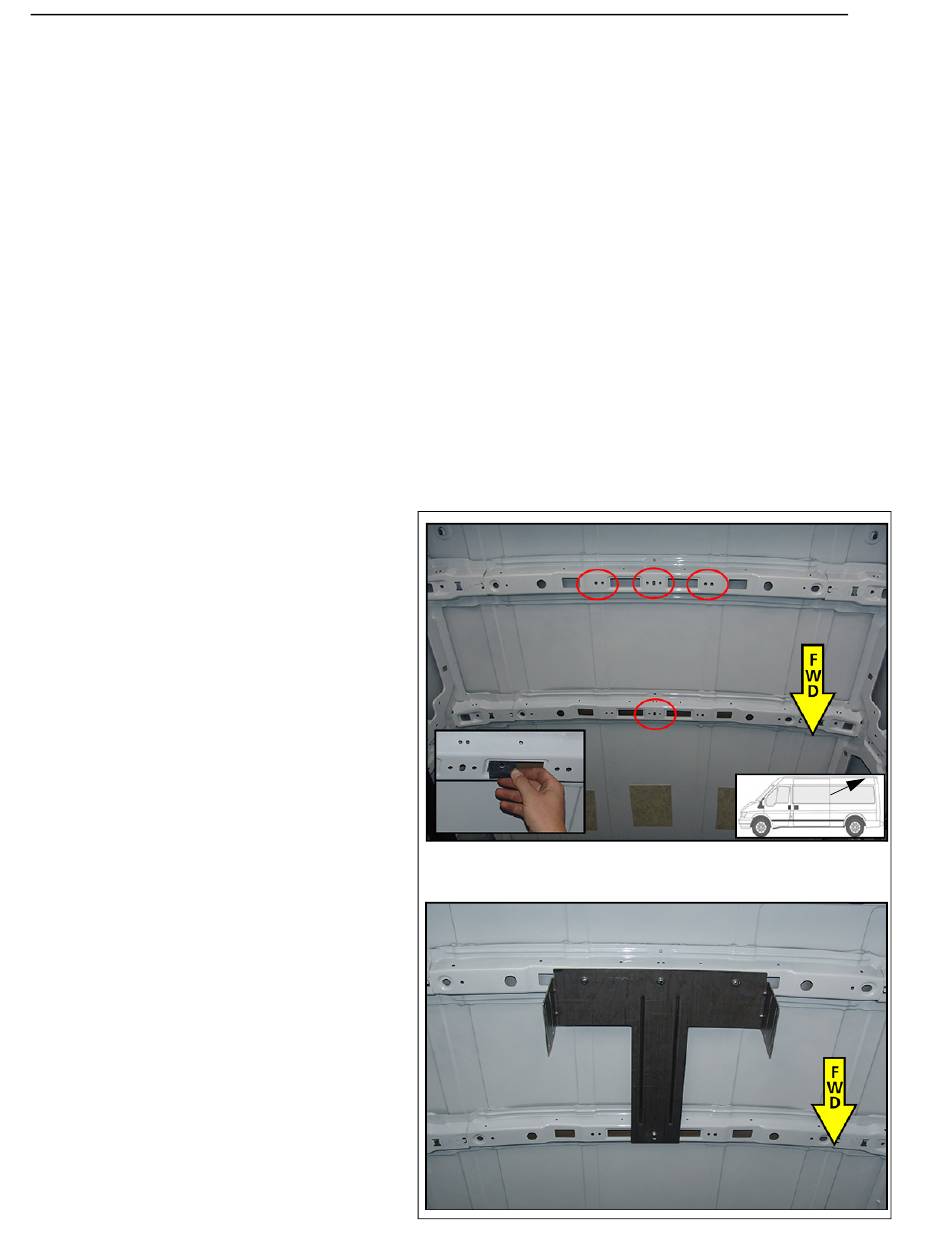

1. Insert four threaded mounting plates in the

locations as shown.

2. Install the mounting bracket and London

HVAC unit.
