Parts Required For Hose Installation - Webasto Transit Vancouver Standard Manual

Vancouver
Item Part Number
Number
5 5011613
28 5011002
11 5011028
17 5011164
13 5011428
14 PPC201065A
15 152560
26 5011202
29 5011005
25 905682
32 21499
9 5011487
16 5011166

Parts required for Hose installation

Tie-In Kit Transit
Fitting Refrigerant 90 -06
Fitting Refrigerant 45 -06
Refrigerant Hose H-06
Cap Screw
TXV Mounting Plate Outer
Lock Washer
Fitting Refrigerant 45 -06
Refrigerant Fitting 90 10HOSE
Grommit
P-Clip
Self-Tapping Screws
Refrigerant Hose H-10
14
Description

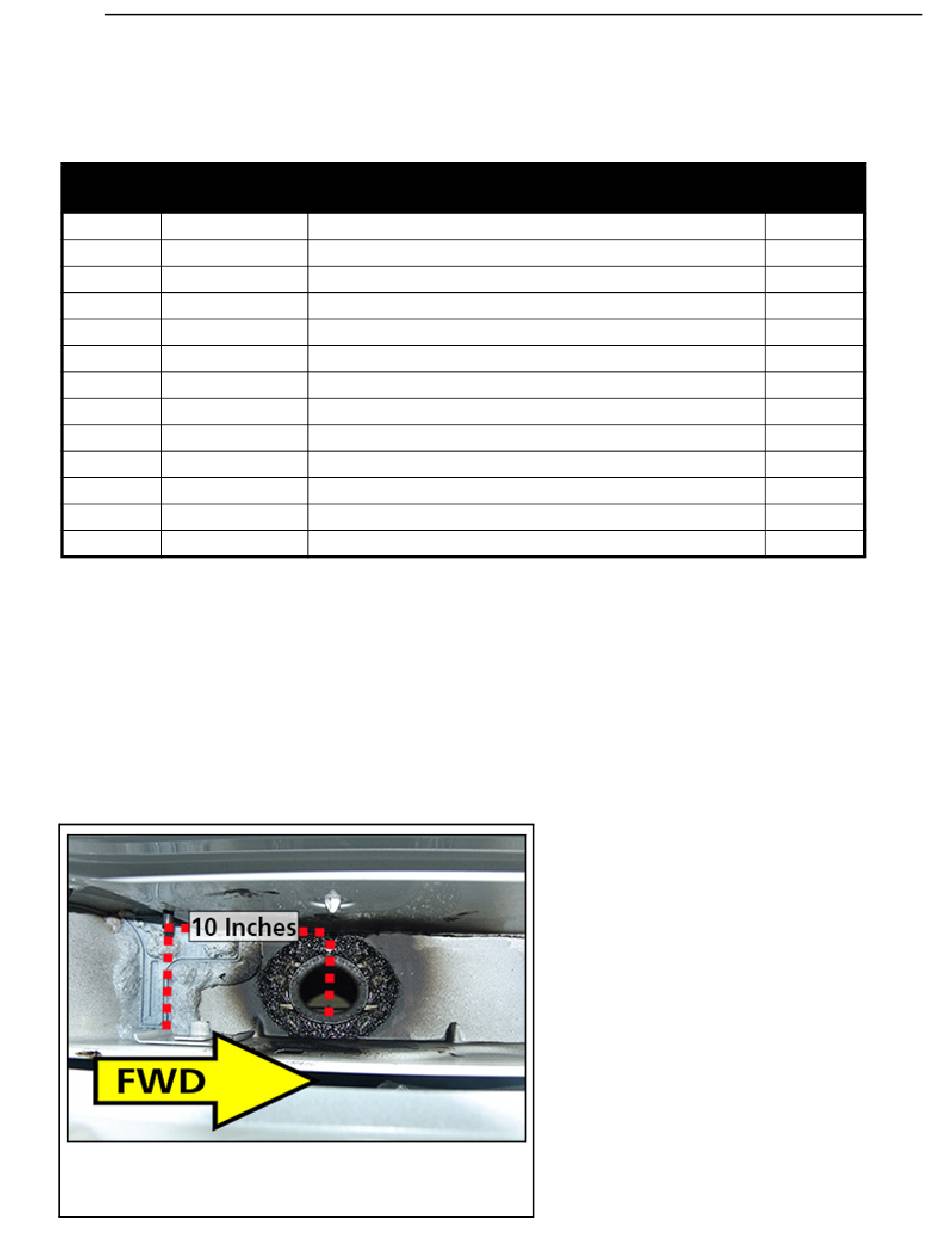

7. In front of the left-rear wheel, between the
inner and outer body panels, drill a 1 3/4
inch (45 millimeters) hole. Protect the cut
edge against corrosion and install the rubber
grommit (25).
Ford Transit
Quantity
1
1
1
As needed
1
1
1
1
1
2
As needed
As needed
As needed
