Default Configuration
To connect the EZ-KIT Lite board:
1. Remove the EZ-KIT Lite board from the package. Be careful when
handling the board to avoid the discharge of static electricity,
which may damage some components.
2. Figure 1-1
tor locations, and LEDs used in installation. Confirm that your
board is set up in the default configuration before continuing.

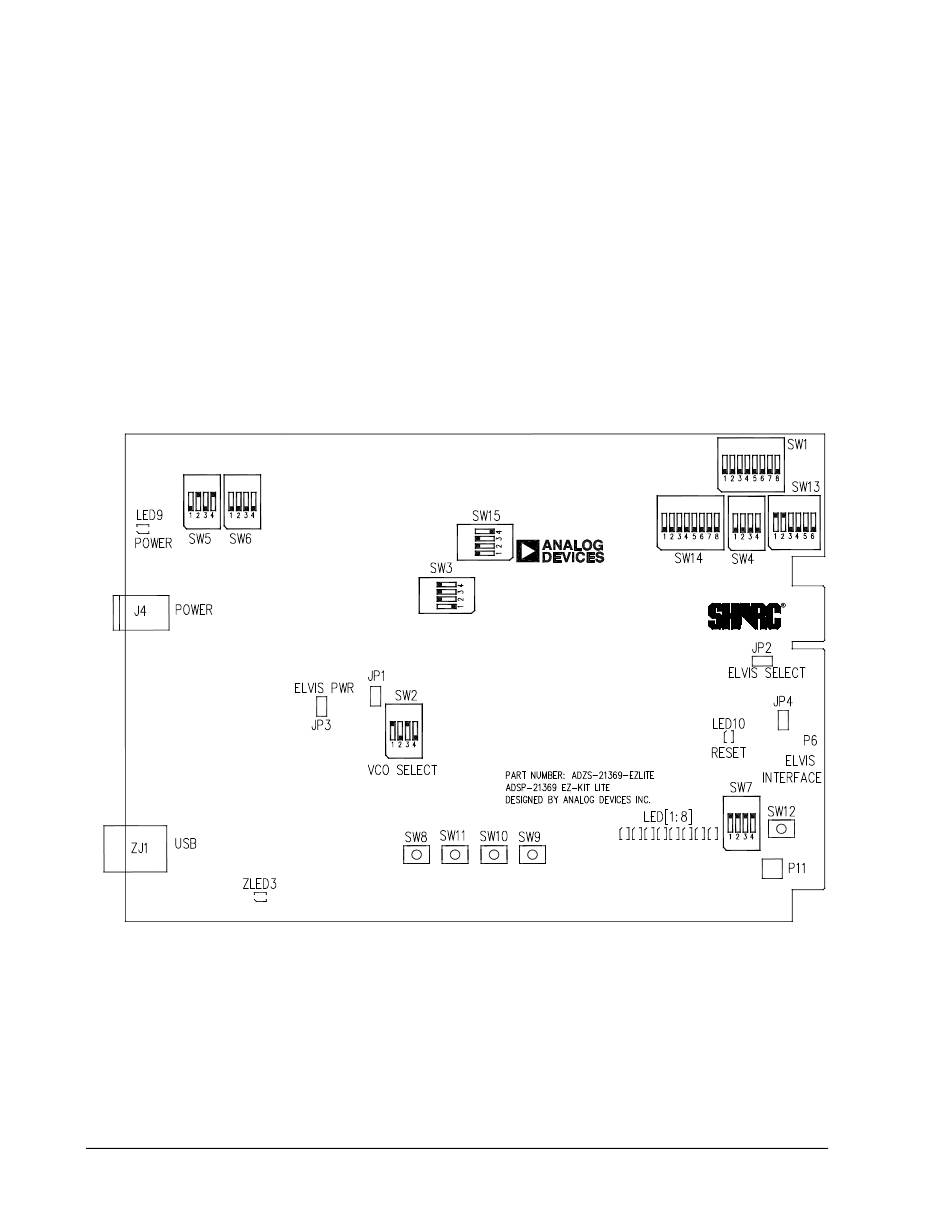

Figure 1-1. EZ-KIT Lite Hardware Setup
1-4
