Ports And Connectors - Matrix SETU VFXTH Quick Start Manual

SETU VFXTH0032
Reset Ethernet
Button Port

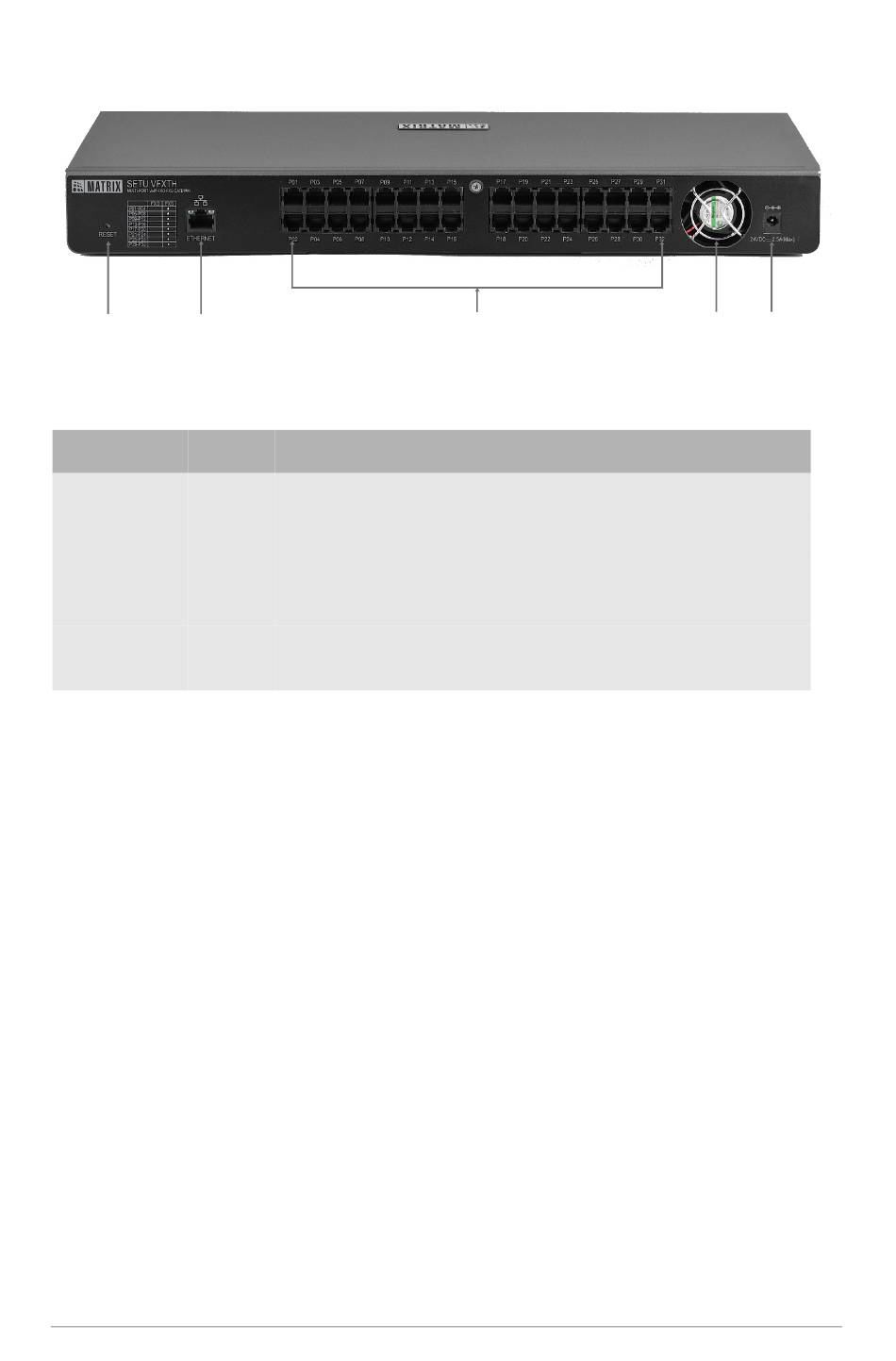

Ports and Connectors

System Status Color
Reset Button
Ethernet RJ45
a
P01 to P32
RJ11
(FXS Ports)
24VDC-
DC Jack
2.5A(Max)
a. If your SETU VFXTH supports only FXO Ports (SETU VFXTH3200), P01 to P32 will be used to connect
PSTN lines or a PBX. However, if you system supports both FXO and FXS Ports (SETU VFXTH0808) then
P01 to P08 (FXO Ports) will be used to connect PSTN lines or a PBX and P09 to P16 (FXS Ports) will be
used to connect telephone instruments or a Fax Machine or a PBX.
2
--- To restart the system or to restore the default IP Address.
To connect to the IP network over a DSL Modem or Router or a LAN Swtich.
To connect standard telephone instruments, or a Fax Machine or a PBX.
To connect 24VDC, 2.5A power adapter.
P01 to P32
FXS Ports
STS
Matrix SETU VFXTH Quick Start
FAN Power
Adapter
