If any of these items is missing or damaged, please contact the dealer/reseller from whom
you purchased the system.
• Place the system at the selected site.
If you are mounting the system on a wall, refer to the mechanical dimensions of the product
and use the mounting template for drilling holes on the wall.

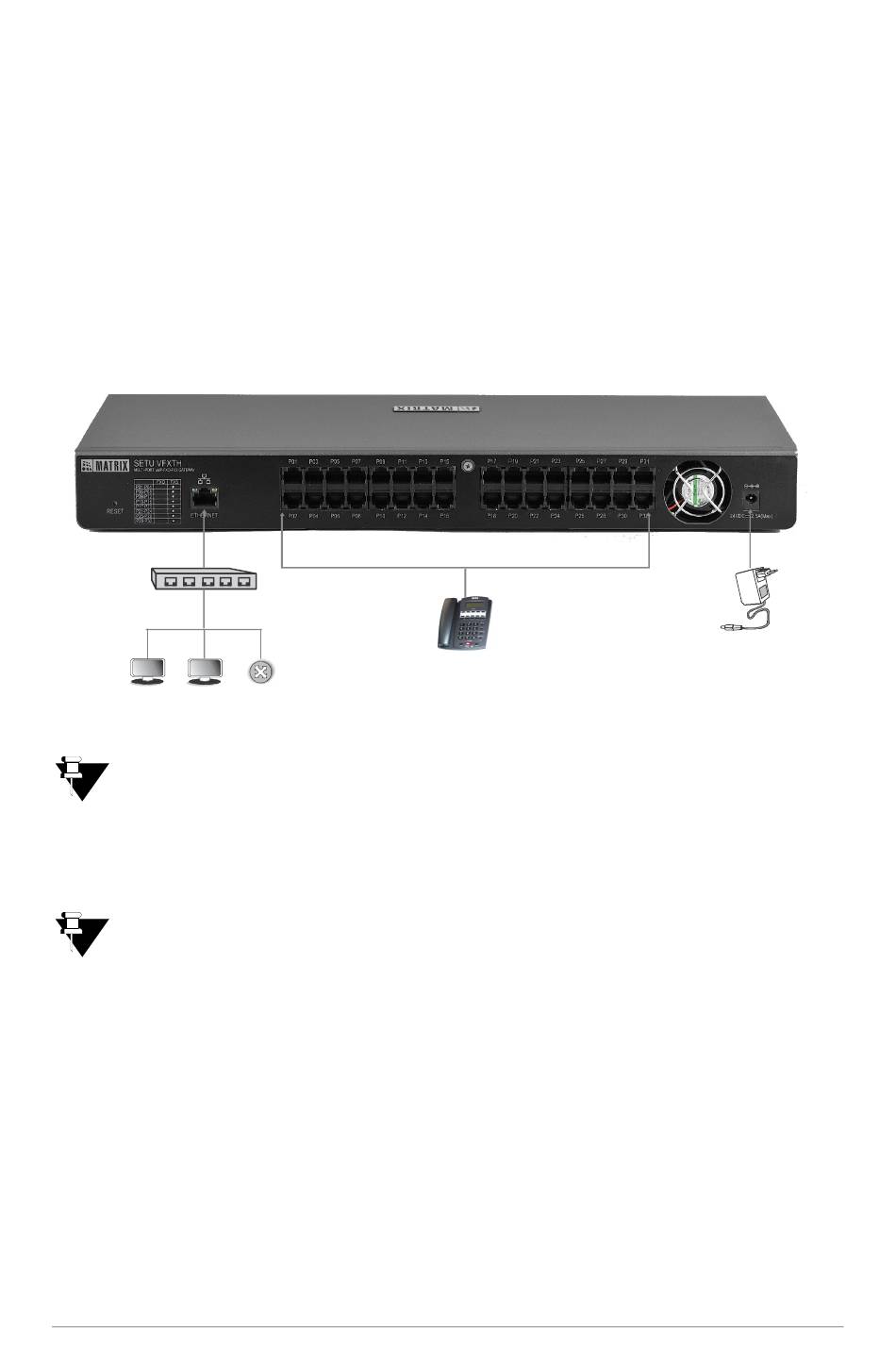

Connecting SETU VFXTH
SETU VFXTH0032 has 1 Reset Button, 1 Ethernet (WAN) Port, 32 FXS Ports, 32 SIP Trunks, a
Power Socket and 34 LEDs. Depending on the configuration, the number of FXO Ports, FXS Ports
and LEDs may vary.
LAN Switch/
Hub
Computers
If your SETU VFXTH supports only FXO Ports (SETU VFXTH3200), P01 to P32 will be used to connect
PSTN lines or a PBX. However, if you system supports both FXO and FXS Ports (SETU VFXTH0808)
then P01 to P08 (FXO Ports) will be used to connect PSTN lines or a PBX and P09 to P16 (FXS Ports)
will be used to connect telephone instruments or a Fax Machine or a PBX.
Connecting to the IP Network
Before you connect the system to WAN, we recommend that you first connect a computer to the
Ethernet Port of SETU VFXTH, configure the Basic Settings, and then connect to WAN.
• Use the Ethernet cable supplied for the Ethernet Port of SETU VFXTH to connect the system to
the Public network or Private Network.
If connecting to the Public IP Network,
• Plug one end of the Ethernet cable into the Ethernet Port of SETU VFXTH and the other
end into the DSL modem/Router.
Matrix SETU VFXTH Quick Start
Modem/
Router
Standard
Telephones
Power
Adapter
5
