Matrix SETU VFXTH Quick Start Manual page 10

Router/
Modem
IP
Computer

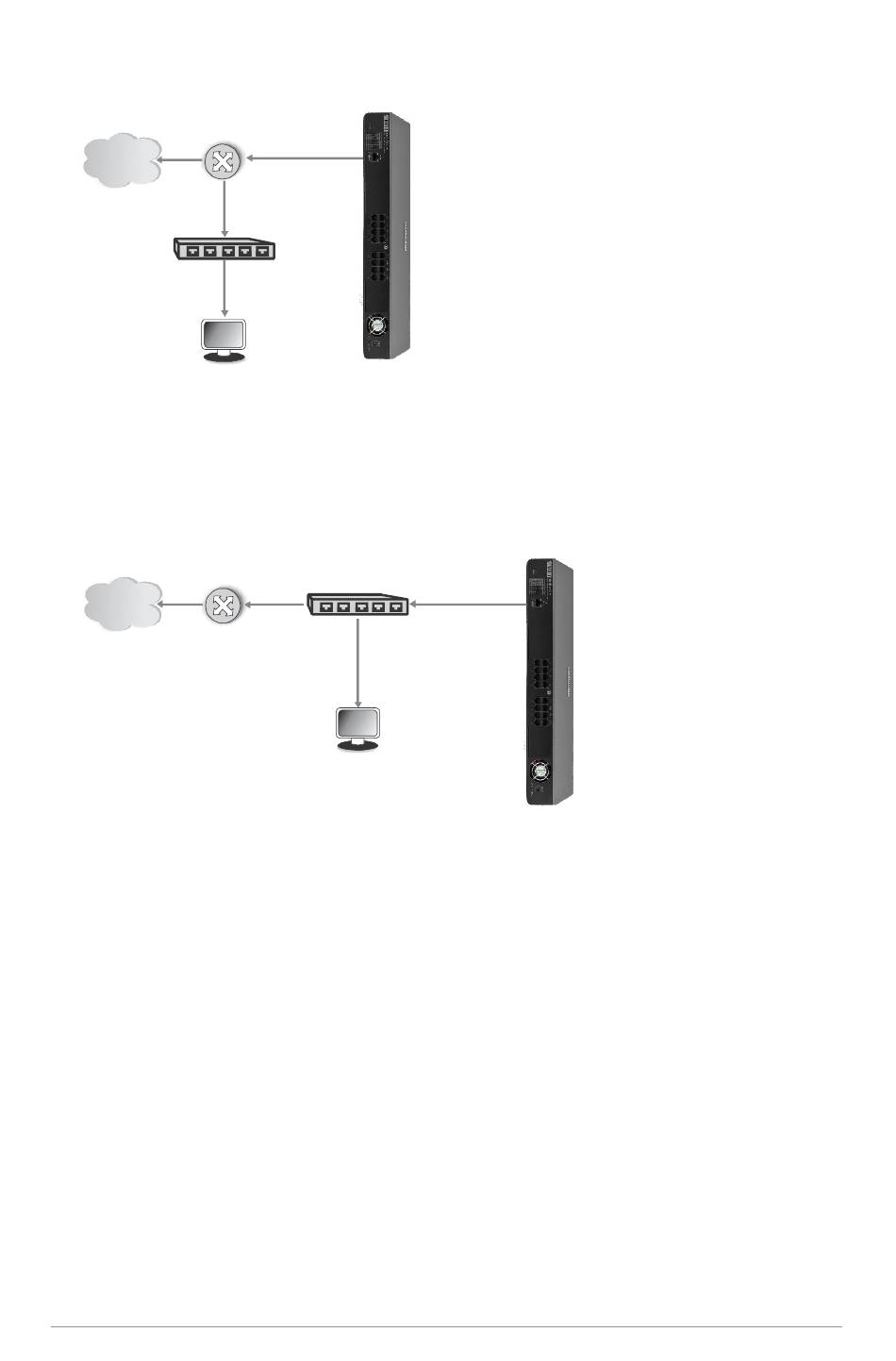

If connecting to a Private Network (Behind a NAT Router),
• Plug one end of the Ethernet cable into the Ethernet Port of SETU VFXTH and the other
end into the LAN Switch/Hub.
IP
Router/
Modem
The default IP Address of the Ethernet Port is: 192.168.1.100
The default Subnet Mask of the Ethernet Port is: 255.255.255.0
Connecting to the CO Network
• Connect the Trunk Lines from the CO Network to the FXO Ports of SETU VFXTH using
standard, good quality, twisted-wire pair of cables with RJ11 plugs.
You may also connect a PBX to the FXO port.
Connecting Telephone instruments
• Connect the analog single line telephone instruments to the FXS ports of SETU VFXTH using
standard, good quality, twisted-wire pair of cables with RJ11 plugs.
You may also connect a Fax machine or a PBX to the FXS port.
6
Ethernet
WAN
LAN Switch/
HUB
SETU VFXTH
LAN Switch/
HUB
Computer
Ethernet
WAN
SETU VFXTH
Matrix SETU VFXTH Quick Start
