Static Colors

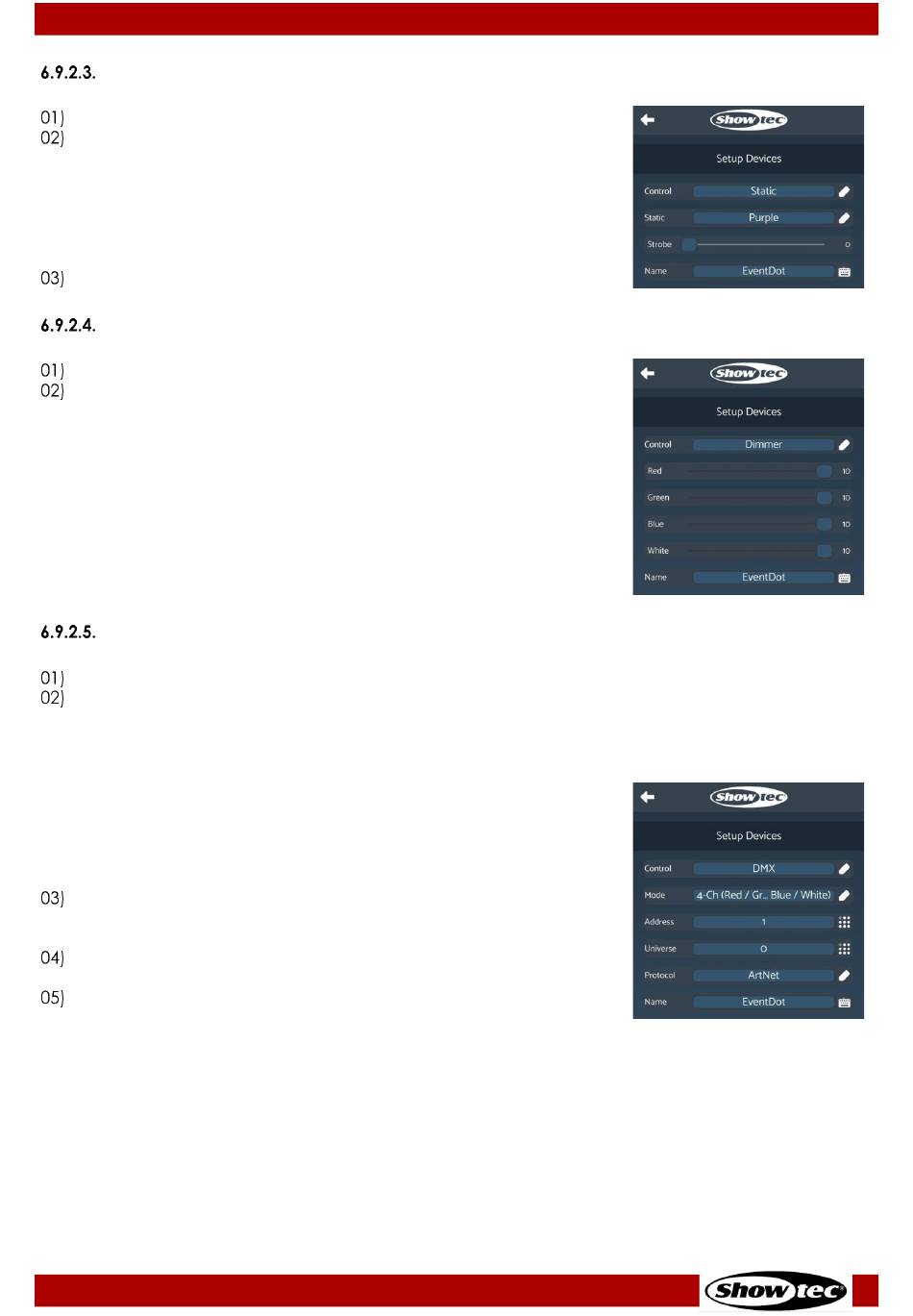

Select Static from the dropdown menu in the Control field.
Select the color from the dropdown menu in the Static field. There
are 15 static color presets available:
1. Red
2. Green
3. Blue
4. White
5. Amber
Slide the Strobe slider to add strobe effect.

Dimming Mode

Select Dimmer from the dropdown menu in the Control field.
Slide the Red, Green, Blue and White sliders to increase or
decrease the intensity of each color separately.

DMX Mode

Select DMX from the dropdown menu in the Control field.
Select the DMX personality from the dropdown menu in the Mode
field. There are 6 personalities available. See 6.10. DMX Channels
on pages 38–40 for complete description of the DMX channels.
● 1-Ch (Color)
● 2-Ch (Program / Speed)
● 4-Ch (Red / Green / Blue / White)
● 5-Ch (Dimmer / Strobe / Color / Program / Speed)
● 6-Ch (Dimmer / Strobe / Red / Green / Blue / White)
● 9-Ch (Dimmer / Strobe / Color / Program / Speed / Red /
Green / Blue / White)
Enter the DMX starting address of the device in the Address field.
The entry range is 1–508. See 5.3.1. DMX Addressing on page 17–
18 for more information.
Enter the universe value in the Universe field. The entry range is 0–
127.
Select the control protocol in the Protocol field. There are 2
options available: Art-Net and sACN.
Note:
If you want to control the device with the ColorCue app, select 4-Ch
DMX mode and Art-Net.
Product code: 44011
6. Orange
7. Yellow
8. Purple
9. Pink
10. Cyan
11. Light red
12. Light green
13. Light blue
14. Warm white
15. Cold white
