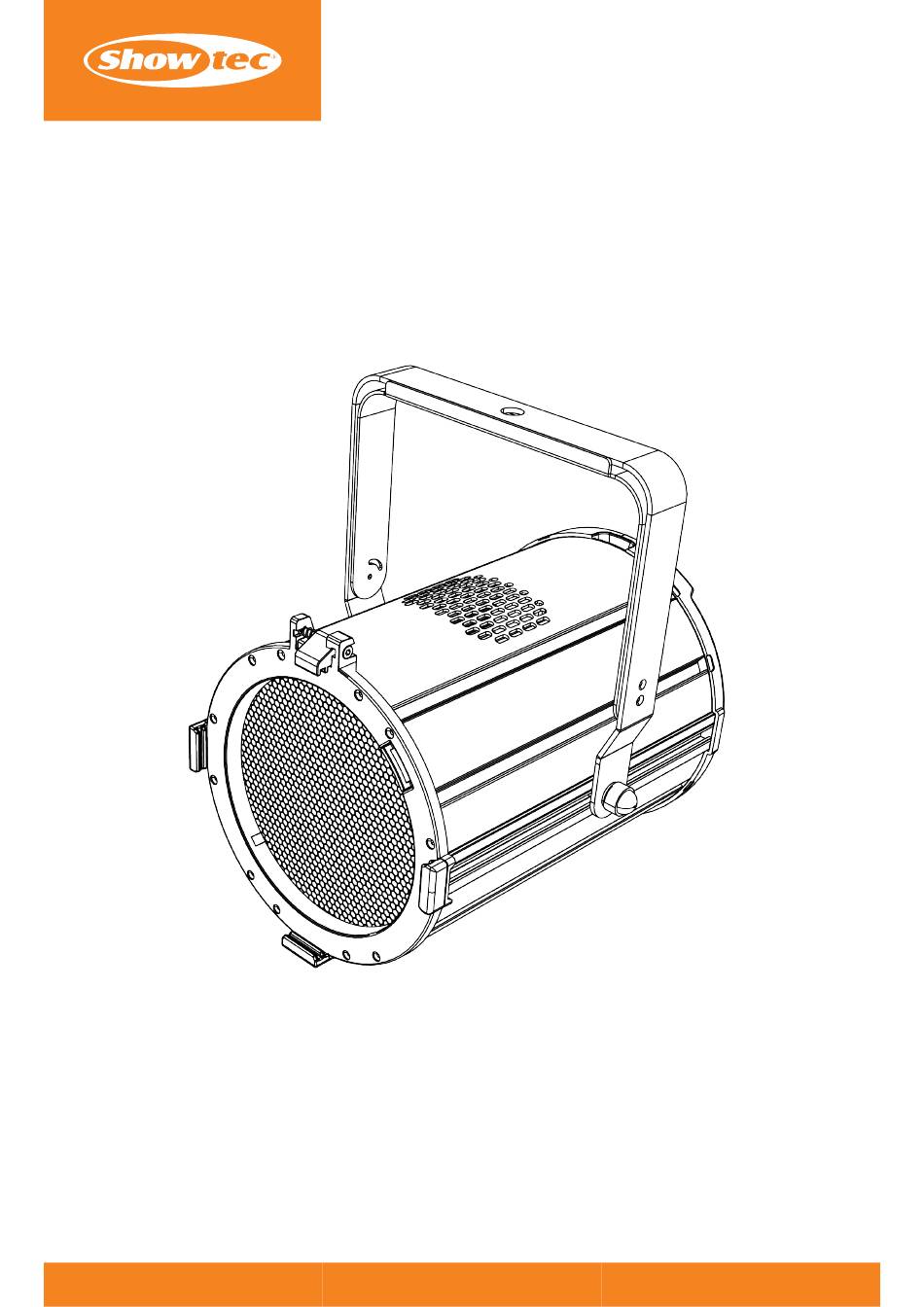

- Page 1 USER MANUAL ENGLISH V1.0 ACT Par 200W CW/WW Product code: 34066...
- Page 2 ACT Par 200W CW/WW Preface Thank you for purchasing this Showtec product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
ACT Par 200W CW/WW Table of contents 1. Introduction ............................ - Page 4 ACT Par 200W CW/WW 6.8. RDM Information .........................
-
Page 5: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: Figure 1 • • Showtec ACT Par 200W CW/WW • • 3x diffusers: 30°, 50° and 80° • •... -
Page 6: Symbols And Signal Words
ACT Par 200W CW/WW 1.5. Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in death or DANGER serious injury. -
Page 7: Safety
ACT Par 200W CW/WW Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. 2.1. - Page 8 ACT Par 200W CW/WW WARNING Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights. Attention Power supply • • Before connecting the device to the power supply, make sure that the current, voltage and frequency match the input voltage, current and frequency specified on the information label on the device.
-
Page 9: Requirements For The User
ACT Par 200W CW/WW Attention Do not expose the device to conditions that exceed the rated IP class conditions. This device is IP20 rated. IP (Ingress Protection) 20 class provides protection against solid objects greater than 12 mm, such as fingers, and no protection against harmful ingress of water. -
Page 10: Description Of The Device
Description of the Device The ACT Par 200W CW/WW is an indoor spotlight with a high CRI. It can produce cold white, warm white or anything in between. In addition to the control panel on the back, the ACT Par 200W CW/WW has 2 knobs to control the white color and intensity when using it in standalone mode. -
Page 11: Color Frame
ACT Par 200W CW/WW 3.3. Color Frame Figure 4 Safety eye – color frame Product code: 34066... -
Page 12: Product Specifications
ACT Par 200W CW/WW 3.4. Product Specifications Model: ACT Par 200W CW/WW Source: Light source type LED Light source quantity 1 Light source power 200 W LED color type WW / CW Luminous flux (total) 9246 lm 92 Minimum CCT 2800 K Maximum CCT 7200 K... -
Page 13: Optional Accessories
ACT Par 200W CW/WW Included Items: Included cables Power Pro Cable Included optics Diffusers Included accessories Color frame 3.5. Optional Accessories You can additionally purchase the following accessory: • • 34067 Barndoor for ACT Par 200W Contact your Highlite International dealer for more information. -
Page 14: Installation
ACT Par 200W CW/WW Installation 4.1. Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. If trussing systems are used, installation must be carried out only by instructed or skilled persons. Follow all applicable European, national and local safety regulations concerning rigging and trussing. -
Page 15: Rigging
ACT Par 200W CW/WW 4.4. Rigging To mount the device, follow the steps below: 01) Use a clamp to attach the device to the supporting structure. Make sure that the device cannot move freely. 02) Secure the device with a secondary suspension, for example a safety cable. Make sure that the secondary suspension can hold 10 times the weight of the device. -
Page 16: Angle Adjustment
4.6. Diffuser Installation The ACT Par 200W CW/WW can be used as a spotlight, a medium flood or a soft beam by installing one of the 3 included diffusers: 30°, 50°, or 80°. To install a diffuser, press the diffuser into the lens opening (03) of the device. Make sure that the diffuser is held in position by the diffuser clip (02). -
Page 17: Color Frame Installation
4.7. Color Frame Installation The ACT Par 200W CW/WW is delivered with a color frame. You can insert a color gel or a diffusion filter into the color frame. To install the color frame, follow the steps below: 01) Slide the spring-loaded barndoor clip (05) to the side and flip it backwards. -
Page 18: Barndoor Installation
ACT Par 200W CW/WW 4.8. Barndoor Installation An optional barndoor (see 3.5. Optional Accessories on page 12) is available for use with the ACT Par 200W CW/WW. To install the barndoor, follow the steps below: 01) Slide the spring-loaded barndoor clip (05) to the side and flip it backwards. -
Page 19: Connecting To Power Supply
Do not link more devices on one power link than the maximum recommended number. Maximum recommended number of devices: • • at 100–120 V: 5 devices ACT Par 200W CW/WW • • at 200–240 V: 10 devices ACT Par 200W CW/WW... -
Page 20: Setup
5.2. Stand-alone Setup When the ACT Par 200W CW/WW is not connected to a controller or to other devices, it functions as a stand- alone device. It can be operated manually via the control panel and via the manual controls. -
Page 21: Dmx Linking
ACT Par 200W CW/WW Figure 11 5.3.3. DMX Linking To connect multiple devices on one DMX data link, follow the steps below: 01) Use a 3-pin/5-pin DMX cable to connect the DMX OUT connector of the lighting controller to the DMX IN connector of the 1 device. -
Page 22: Dmx Addressing
04) Continue assigning the starting addresses of the remaining devices by adding each time 6 to the previous number. Make sure that you do not have any overlapping channels in order to control each ACT Par 200W CW/WW correctly. If two or more devices are addressed similarly, they will work similarly. -
Page 23: Operation
6.2. Control Modes The ACT Par 200W CW/WW can be operated with a DMX controller and as a stand-alone device. The ACT Par 200W CW/WW supports the following control modes: •... -
Page 24: Control Panel
ACT Par 200W CW/WW 6.3. Control Panel Figure 13 OLED display ENTER button DOWN button UP button MENU button • • Use the MENU button to exit the current submenu, to return to the main menu and to return to the start screen. -
Page 25: Menu Overview
ACT Par 200W CW/WW 6.5. Menu Overview Level 1 Level 2 Level 3 DMX Address 001–512 RAW – 2 Ch. Mode Basic – 5 Ch. Adv. – 6 Ch. DMX Functions (see 6.6.1. DMX Functions on page 25) Manual Defined... -
Page 26: Main Menu Options
ACT Par 200W CW/WW 6.6. Main Menu Options The main menu has the following options: DMX Functions Static CCT Fixture Settings Display Settings Manual Fixture Information Special Functions 01) Press the UP/DOWN buttons to navigate through the menu. 02) Press the ENTER button to open submenus. -
Page 27: Dmx Fail
ACT Par 200W CW/WW 6.6.1.3. DMX Fail In this pop-up submenu you can determine the behavior of the device in case there is no DMX signal. 01) Press the UP/DOWN buttons to select one of the following 3 options: •... -
Page 28: Fixture Settings
ACT Par 200W CW/WW 6.6.3. Fixture Settings In this menu you can adjust the fixture settings. 01) Press the UP/DOWN buttons to select one of the following 3 options: • • Dimmer Curve: There are 4 options available: Linear, Square Law, Inverse Square Law and S- Curve •... -
Page 29: Display Settings
ACT Par 200W CW/WW 6.6.4. Display Settings In this menu you can adjust the display settings of the device. 01) Press the UP/DOWN buttons to select one of the following 3 options: • • Display Inverse: The OLED display is rotated at 180° (Yes/No) •... -
Page 30: Special Functions
ACT Par 200W CW/WW 6.6.7. Special Functions In this menu you can reset the settings of the device to the default factory settings. 01) Press the ENTER button to open the pop-up submenu for the factory reset: 02) Press the UP/DOWN buttons to choose between No and Yes. If you choose Yes, the settings of the device will be reset to the default factory settings. -
Page 31: Dmx Channels
ACT Par 200W CW/WW 6.7. DMX Channels Basic Advanced Function Value Setting 2 CH 5 CH 6 CH Cool White Dimmer 000–255 From low to high intensity (0–100 %) Warm White Dimmer 000–255 From low to high intensity (0–100 %) Master Dimmer 000–255 From low to high intensity (0–100 %) -
Page 32: Rdm Information
ACT Par 200W CW/WW 6.8. RDM Information This device supports RDM (see 6.8.2. Supported RDM PIDs (Parameter IDs)). 6.8.1. RDM Details • • Responder ID: 29B4:0DDXXXXX • • Manufacturer's ID: Showtec (Highlite International B.V.) • • Manufacturer Label: Showtec •... -
Page 33: Troubleshooting
ACT Par 200W CW/WW Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. -
Page 34: Maintenance
ACT Par 200W CW/WW Maintenance 8.1. Safety Instructions for Maintenance DANGER Electric shock caused by dangerous voltage inside Disconnect power supply before servicing or cleaning. 8.2. Preventive Maintenance Attention Before each use, examine the device visually for any defects. Make sure that: •... -
Page 35: Corrective Maintenance
ACT Par 200W CW/WW 8.3. Corrective Maintenance The device does not contain user-serviceable parts. Do not open the device and do not modify the device. Refer repairs and servicing to instructed or skilled persons. Contact your Highlite International dealer for more information. -
Page 36: Disposal
ACT Par 200W CW/WW Disposal Correct disposal of this product Waste Electrical and Electronic Equipment This symbol on the product, its packaging or documents indicates that the product shall not be treated as household waste. Dispose of this product by handing it to the respective collection point for recycling of electrical and electronic equipment. - Page 37 ACT Par 200W CW/WW Product code: 34066...
- Page 38 ACT Par 200W CW/WW Product code: 34066...
- Page 39 ACT Par 200W CW/WW Product code: 34066...
- Page 40 Showtec is a brand of Highlite International B.V.
