- Page 1 MANUAL ENGLISH PowerBOX 3 Ordercode: 90660 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
PowerBOX 3 Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Connection with the mains............................4 Return Procedure ................................5 Claims ....................................5 Description of the device ..............................6 Frontside..................................6 Backside ..................................7 Installation ................................... 7 Set Up and Operation ............................... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • Showtec PowerBOX 3 Pro power cable 1,5 m • User manual •... - Page 4 For replacement use fuses of same type and rating only. • The user is responsible for correct positioning and operating of the PowerBOX 3. The manufacturer will • not accept liability for damages caused by the misuse or incorrect installation of this device.
-
Page 5: Operating Determinations
Improper installation can cause serious damage to people and property! The PowerBOX 3 can be placed on a flat stage floor or attached to any kind of truss, with the 90659 – PowerBOX clamp or the D9575B – Snap Fastener 22. -
Page 6: Return Procedure
PowerBOX 3 Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 7: Description Of The Device

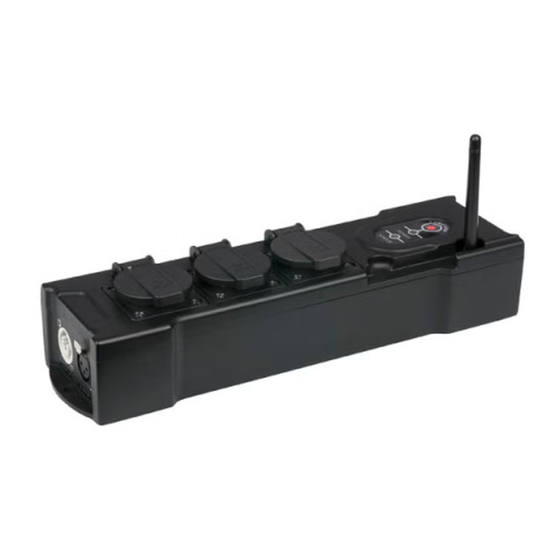

The Showtec PowerBOX 3 can be used as a power supply for lighting or back-line equipment. The PowerBOX 3 is equipped with 1 x Pro power connector IN and 2 x Pro power connector OUT. Apart from that, there are also 3 x Schuko power outputs, and a built-in Wireless 2,4GHz DMX receiver. -
Page 8: Backside
Linking 01) Power on the PowerBOX 3. 02) Make sure that the PowerBOX 3 is not linked to any transmitter. If the PowerBOX 3 is linked, it needs to be unlinked (see below). 03) If you want to link the PowerBOX 3 to a transmitter, please read the manual of the transmitter in question. -
Page 9: Unlinking
While linking/unlinking, observe the LED status indicator (07). 01) When the LED is OFF, the PowerBOX 3 is not linked to any transmitter. 02) When the LED is blinking slowly, the PowerBOX 3 is linked to a transmitter but does not receive any DMX signal. -
Page 10: Product Specification
PowerBOX 3 Product Specification Model: Showtec PowerBOX 3 Input voltage: 220-240V AC, 50Hz Power consumption: Power output: 10A RMS/16A peak Dimensions: 335 x 90 x 140 mm (LxWxH) Weight: 0,9 kg Operating and Programming: Signal pin OUT: Pin 1 (earth), pin 2 (-), pin 3 (+) - Page 11 PowerBOX 3 Ordercode: 90660...
- Page 12 ©2016 Showtec...
