10BASE-T Stackable Hubs
The System Configuration Menu also contains the Console/Telnet Display
Timeout parameter, which determines how long the console may sit idle
before the user is "logged out."
The hub sends out SNMP traps to network management stations whenever
certain exceptional events occur, such as when the hub is powered on or
when an SNMP request is made using an unknown community name. The
hub allows traps to be routed to up to four different network management
The following trap parameters can be set:
♦ IP Address: gives the IP address of the network management station
to receive the trap
♦ SNMP Community String: determines the SNMP community name
to be included in the trap request.

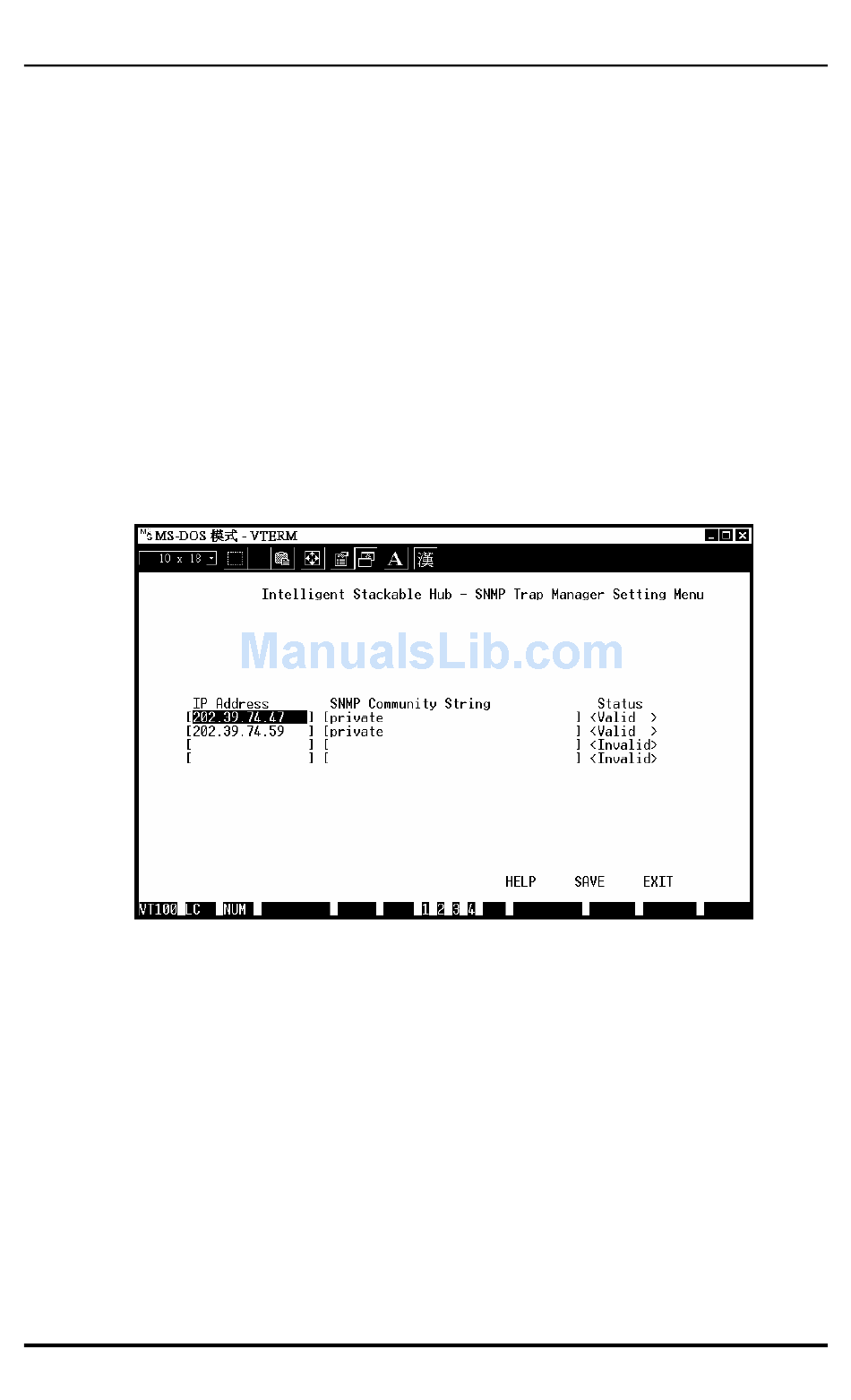

Figure 6 -8 SNMP Trap Manager Menu
Using the Console Interface
