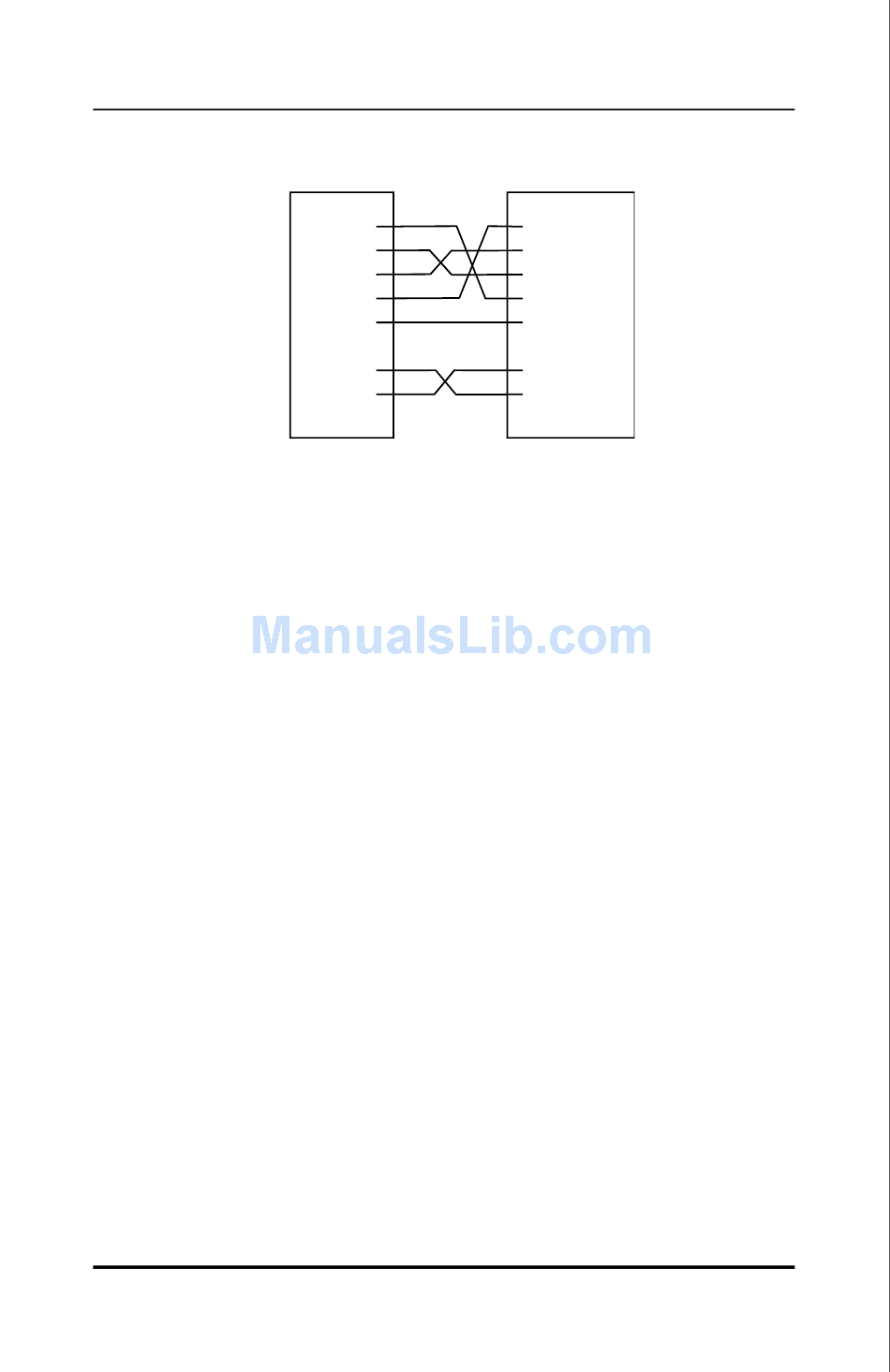

Figure D-7 Remote (Modem) Connection to 25-Pin Serial Port
Cables and Connectors
Console Port
(DCE, DB-9)
DCD (1)
RXD (2)
TxD (3)
DTR (4)
SG (5)
DSR (6)
RTS (7)
CTS (8)
- (9)
10BASE-T Stackable Hubs
Modem
(DCE, DB-25)
DCD (8)
RXD (3)
TxD (2)
DTR (20)
SG (7)
DSR (6)
RTS (4)
CTS (5)
D-5
