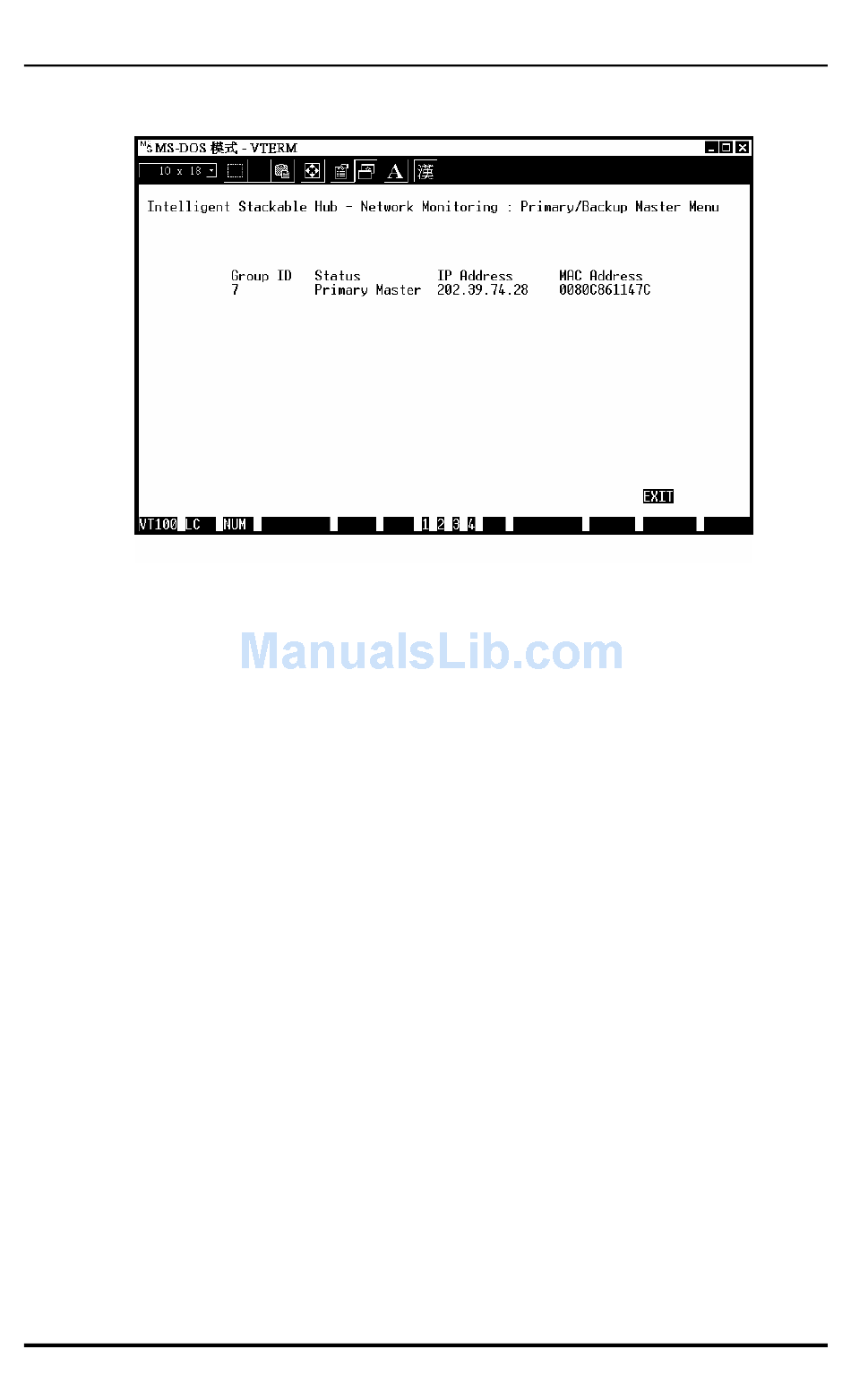

Figure 6 -13 Primary/Backup Master Menu

Controlling Hubs in the Hub Stack

The Group Configuration Menu screen, found within the Network
Monitoring menu, displays information about each of the hubs in the stack,
and allows you to make the Hub ID indicator flash.
The items displayed on this screen are:
♦ Group ID: indicates which hub (group) is being displayed.
♦ Group Serial Number: gives the serial number of the displayed hub.
♦ Group Description: gives a description of the given hub, showing
how many ports it has and what options are available, such as whether
or not it is a master hub.
♦ Group Role: shows what role the hub is currently serving in the hub
stack (Primary Master, Backup Master, or Slave).
Using the Console Interface
10BASE-T Stackable Hubs
6-17
