Port Monitoring

The Port Monitoring panel, shown in Figure 51, is used to gather information
about ports. The panel shows data traffic sent or received by the port being
monitored. You can define which port is being monitored and which port will do
the monitoring. You can define the packet types being monitored. Only one port
at a time can be monitored.

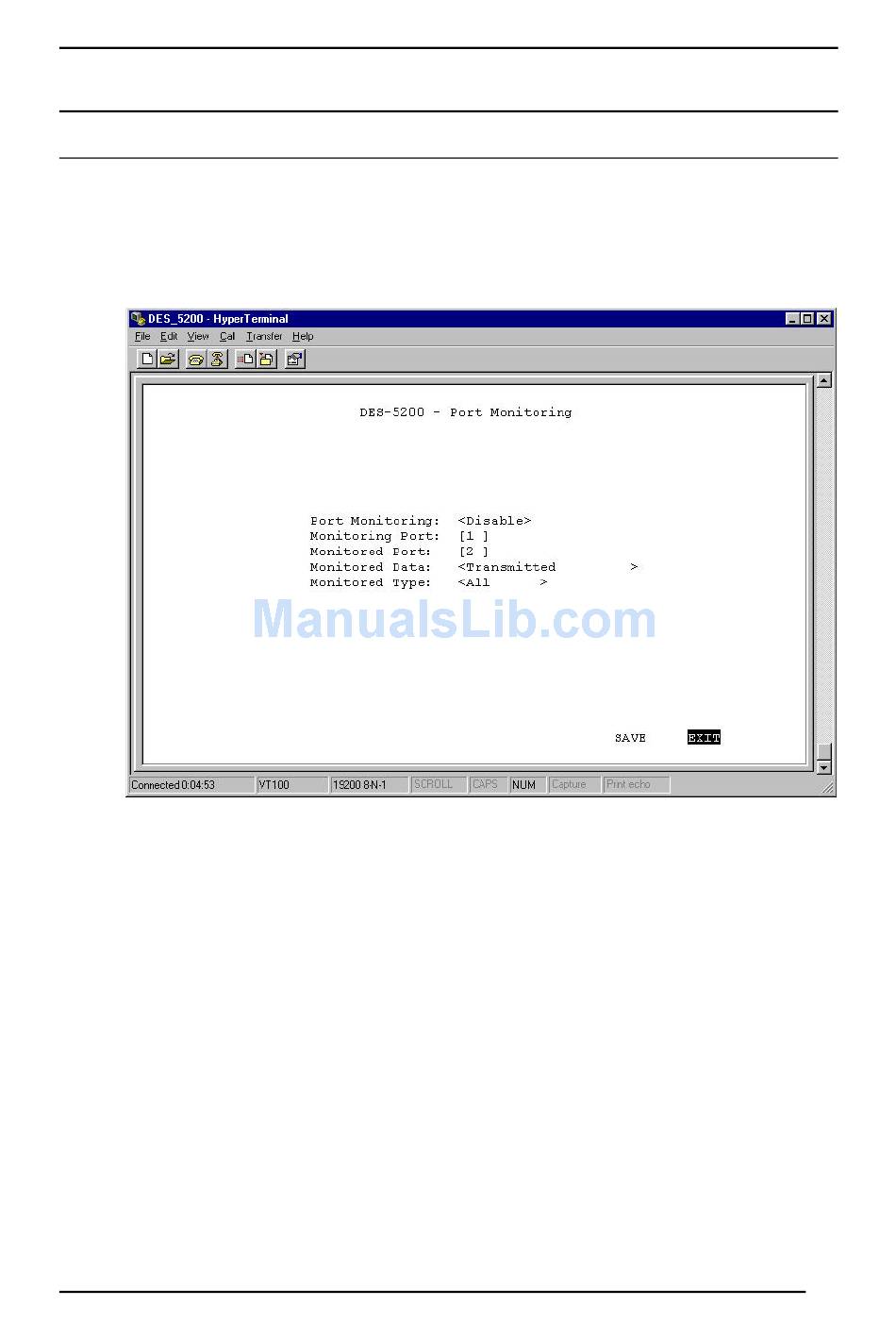

Figure 51: Port Monitoring

Port Monitoring

Enables or disables port monitoring. The default is disabled.
Monitoring Port
The port that receives the monitoring data.
Monitored Port
The port being monitored.
