Modify Trunking Port

The Modify Trunking port panel, displayed in Figure 49, enables you to Modify
Trunking Ports.

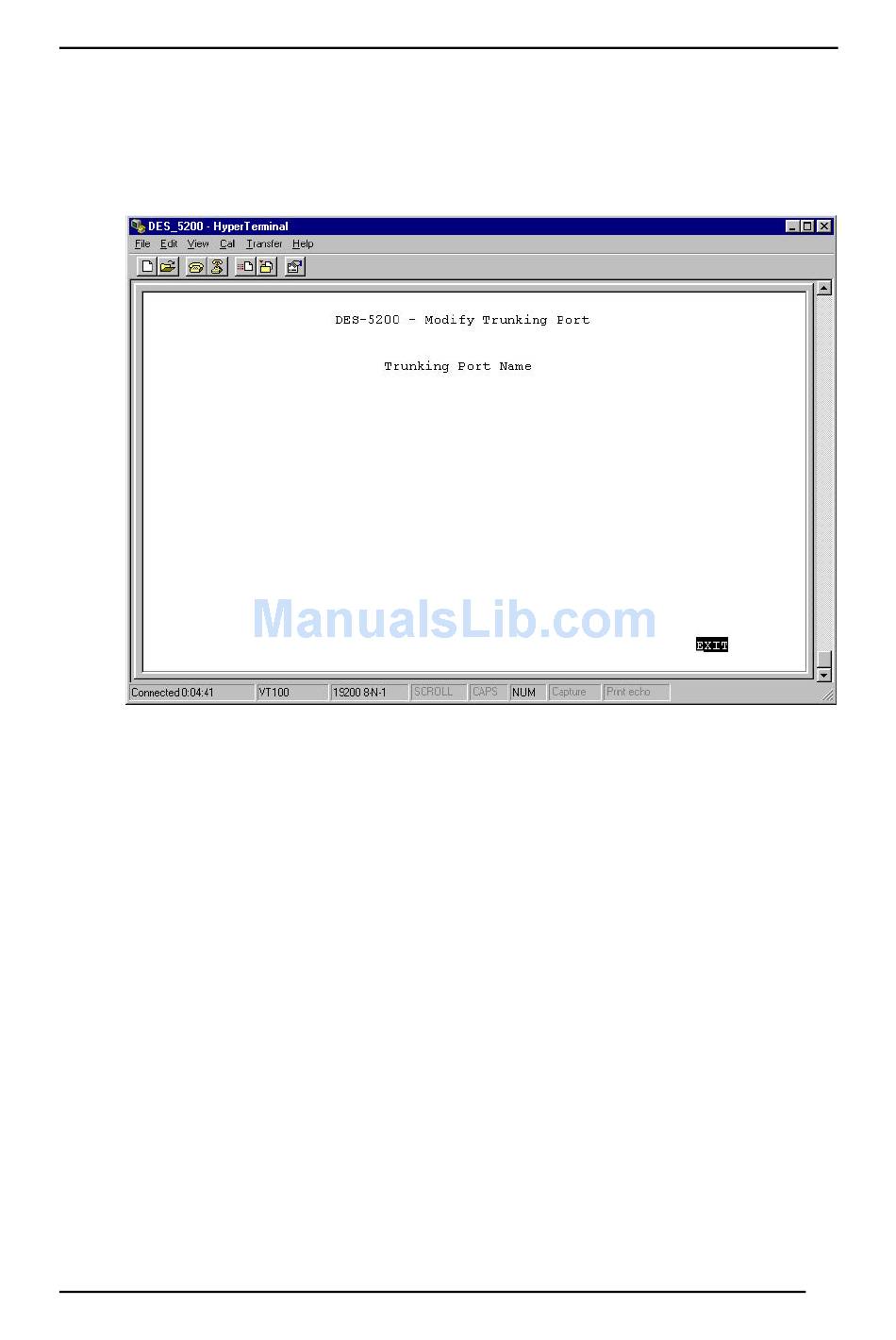

Figure 49: Modify Trunkig Port

Trunking Port Name

The names of all Trunked Ports appear in this column.
Follow these steps to modify Trunked Ports:
1.
2.
3.
4.
5.
Managing the DES-5200
Select the name of the appropriate Trunked Ports.
Press Enter.
Use the Modify Trunking Port panel to modify a Trunking Group.
Select the ports that you want to include in the Trunking Group or
delete from the Trunking Group. Toggle the space bar to change
the current setting. Available means the port is available for
inclusion in the Trunking Group. Selected means the port has been
selected as part of a Trunking Group. N/A indicates ports that are
not available for inclusion in any trunking group.
Select Save and press Enter to implement your changes.
