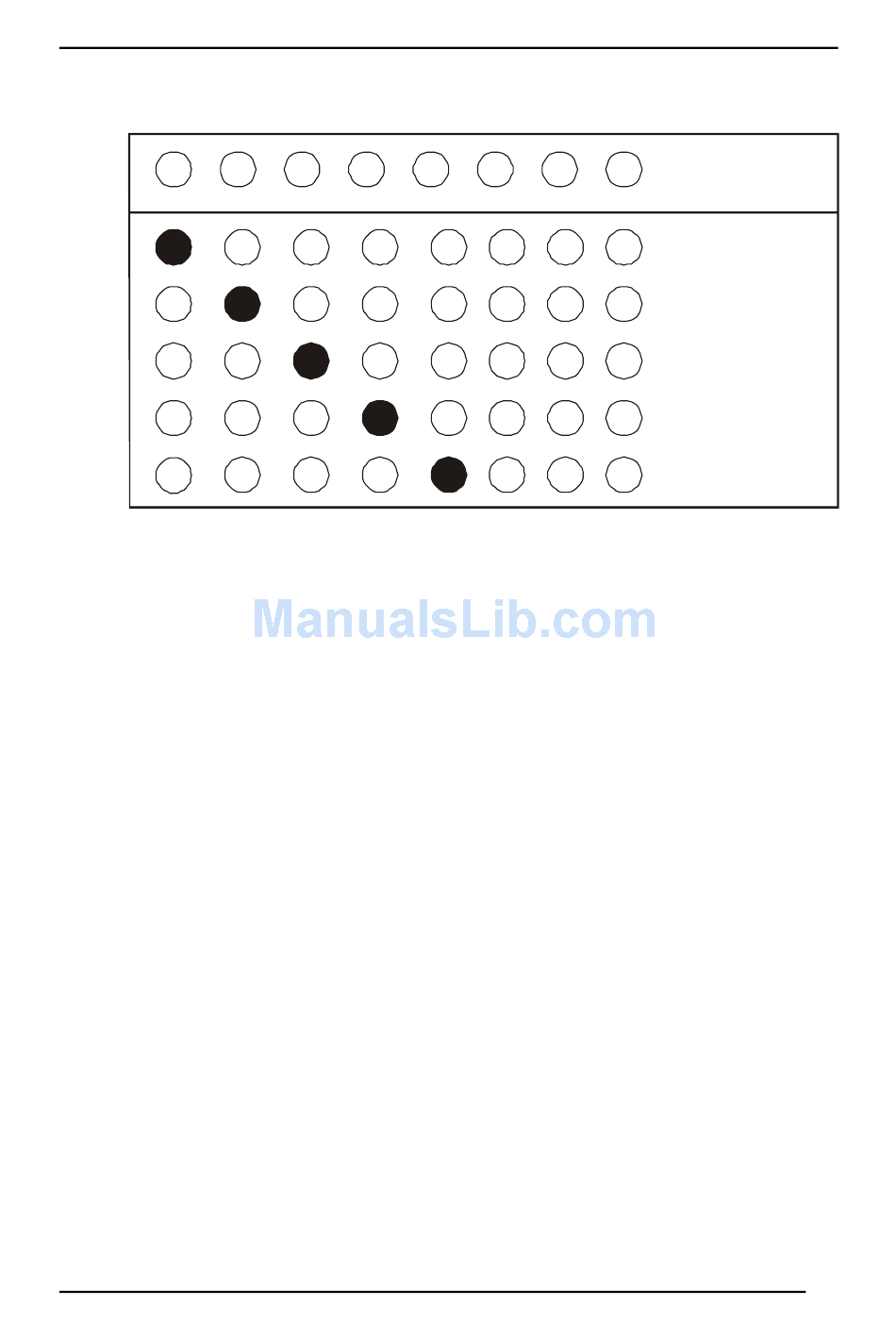

Table 16: Modular Status Error LED Indicator Chart
1
If the CPU module fails, the first LED on the Utilization panel lights. If a module
fails, the Utilization LED number indicates the slot the module is in.
Troubleshooting
3
2
4
5
6
7
Error Status
8
CPU Module Failure
Slot #1 Failure
Slot #2 Failure
Slot #3 Failure
Slot #4 Failure
143
