Fast Ethernet Switching System User's Guide

2-Port 100BASE-FX Module

Link

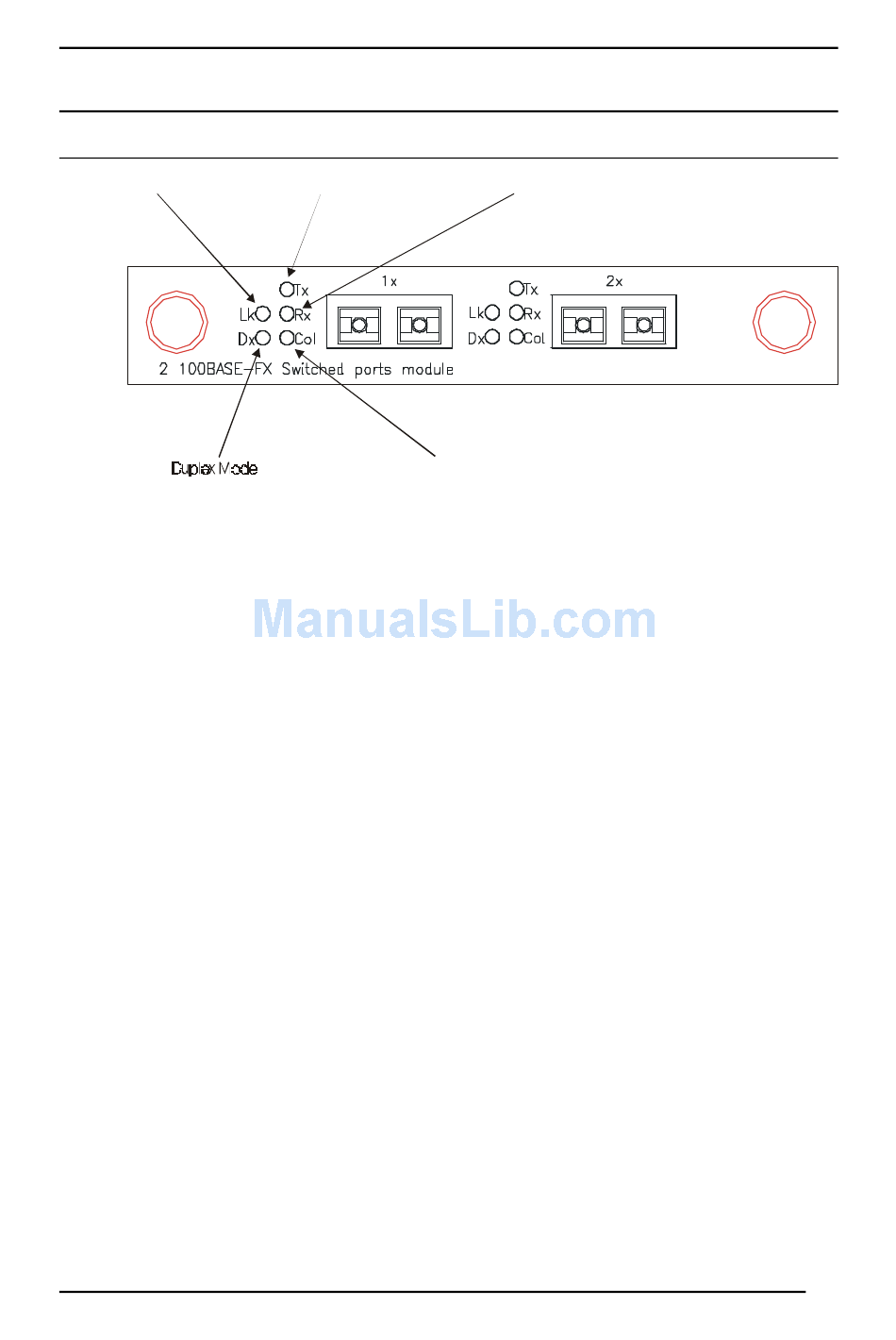

Figure 17: 2-Port 100BASE-FX Module
The LEDs on the 2-Port 100BASE-FX Module, displayed in Figure 17, are
different from the LEDs on the modules. The information given is the same but it
is presented differently. Refer to Table 10: FX Module LED.
Lk
Lk indicates there is a link. The Lk LED lights to indicate there is a link at the
port.
Dx
Dx means duplex mode. The Dx LED indicates the port's duplex mode. The ports
will not auto negotiate the duplex mode. The default value is half duplex. They
can be manually set for full duplex. The LED is lit when the port is in full duplex
and dark when the port is in half duplex.
Tx
Tx means transmitting. The Tx LED lights to indicate the port is transmitting data.
Rx
Rx means receiving. The Rx LED flashes when the port is receiving data.
Col
Col means collision. The Col LED lights amber when collisions occur at the port.
Collisions are normal on the network. You should only be concerned when a high
number of collisions happen at the port.
LEDs
T r ansmitting
Collision
R eceiving
