Fast Ethernet Switching System User's Guide

Rack Installation

The DES-5200 can be mounted in an EIA standard size, 19 inch rack. The
dimensions of the DES-5200 are 4.4 inches (112 mm) x 10.39 inches (264 mm) x
17.32 inches (440 mm). The DES-5200 can be placed in a wiring closet along
with other equipment.
Follow these steps to install the DES-5200 on a rack:
1.
Slide the DES-5200 into the rack and use the screws provided to secure the DES-
5200 to the rack. See Figure 8.
Connect the power cord and verify that the DES-5200 is receiving adequate
power.

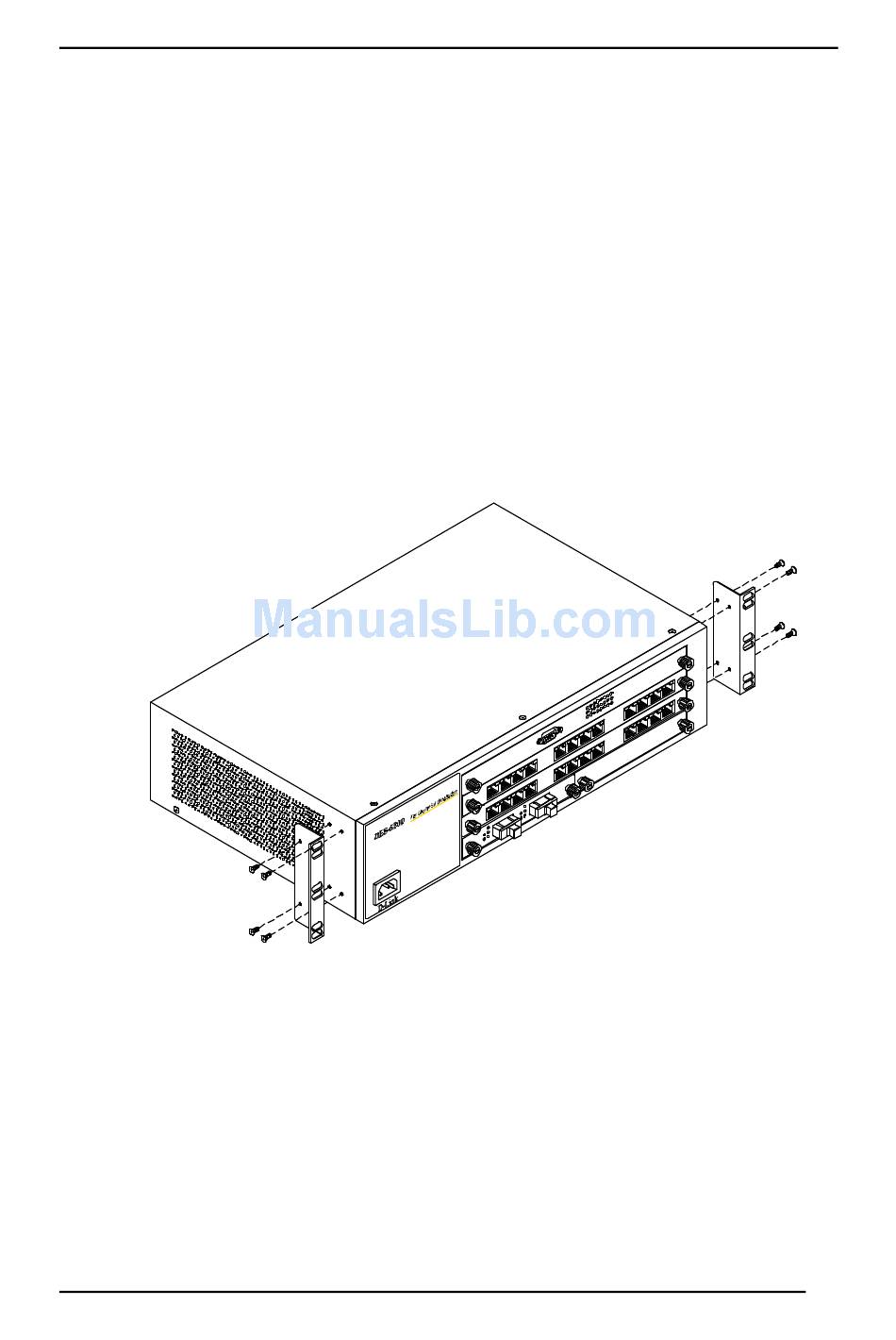

Figure 7: Attach Mounting Brackets
Installing the DES-5200
Attach a mounting bracket to each side of the DES-5200 with the
screws provided. See Figure 7.
14
