Fast Ethernet Switching System User's Guide
DES-5224TX

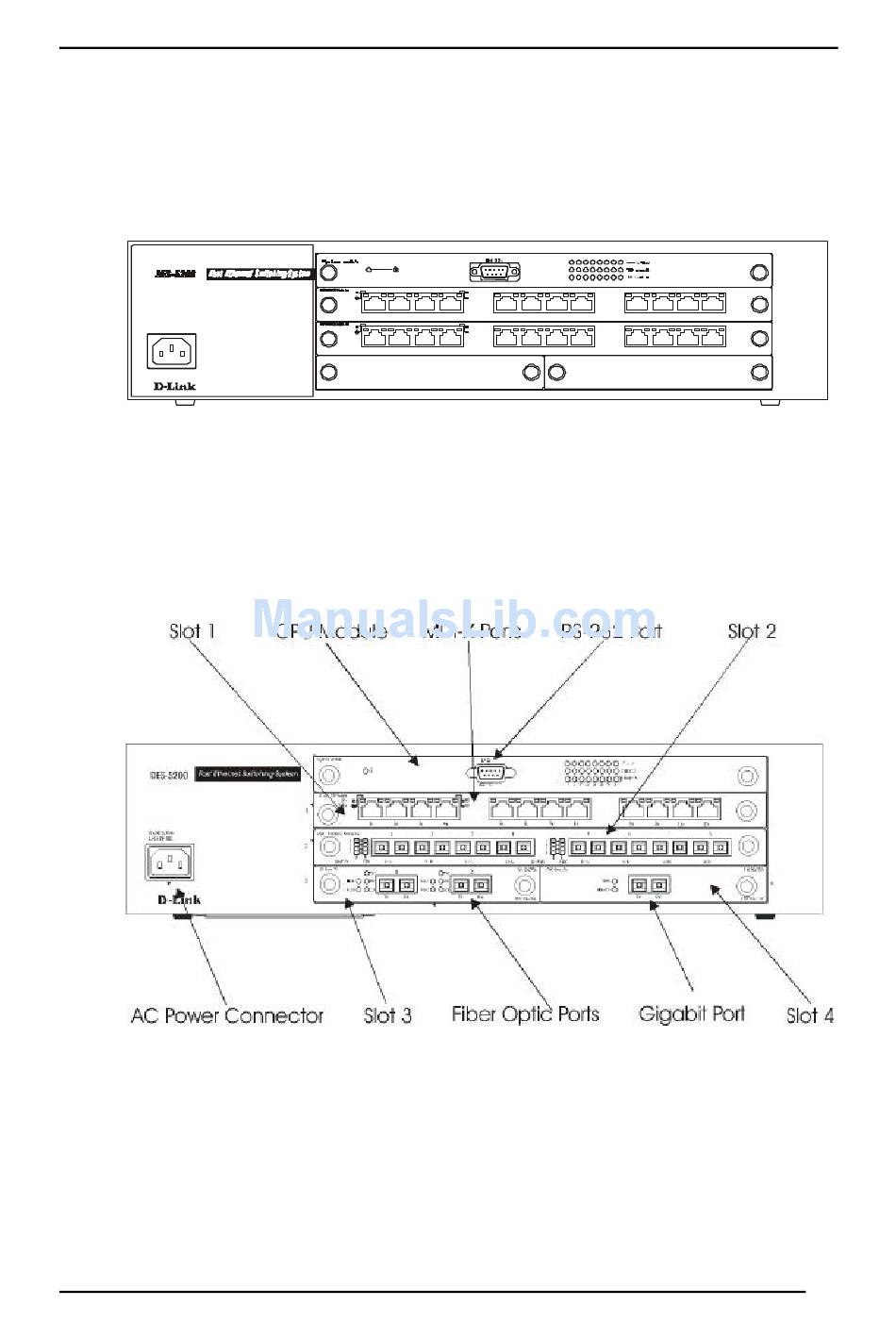

The DES-5224TX, displayed in Figure 1, is shown with 2 12-Port 10/100-TX
modules. The DES-5224TX is shown with two optional modules, one 2-Port
100BASE-FX in slot 3 and one 2-Port 10/100BASE-TX in slot 4.
AC LINE
100-240 VAC
50-60Hz
2.5A MAX.
Figure 1: DES-5224TX
DES-5220TF
The DES-5220TF, displayed in Figure 2, comes with one 12-Port 10/100-TX
module and one 8-Port 100BASE-FX module. The DES-5220TF is shown with
two optional modules, one 2-Port 100BASE-FX module in slot 3 and one
1000BASE-SX module in slot 4.
Figure 2: 5220TF
Introduction
1 0 0
L i n k
10
Tx/Rx
1x 2x 3x 4x 5x
1 0 0
L i n k
10
Tx/Rx
5x
1x 2x 3x 4x
6x 7x 8x 9x 10x 11x
6x 8x
7x 9x 10x 11x
12x
12x
