Create New VLAN

The Create New VLAN menu, displayed in Figure 43, is used to create a new
VLAN. The default value is that all ports belong to one VLAN. You can create up
to 31 separate VLANs. Ports can belong to two VLANs at the same time. Each
VLAN is a broadcast domain. If you have created a trunking group, you must
include the entire trunk group in the VLAN.

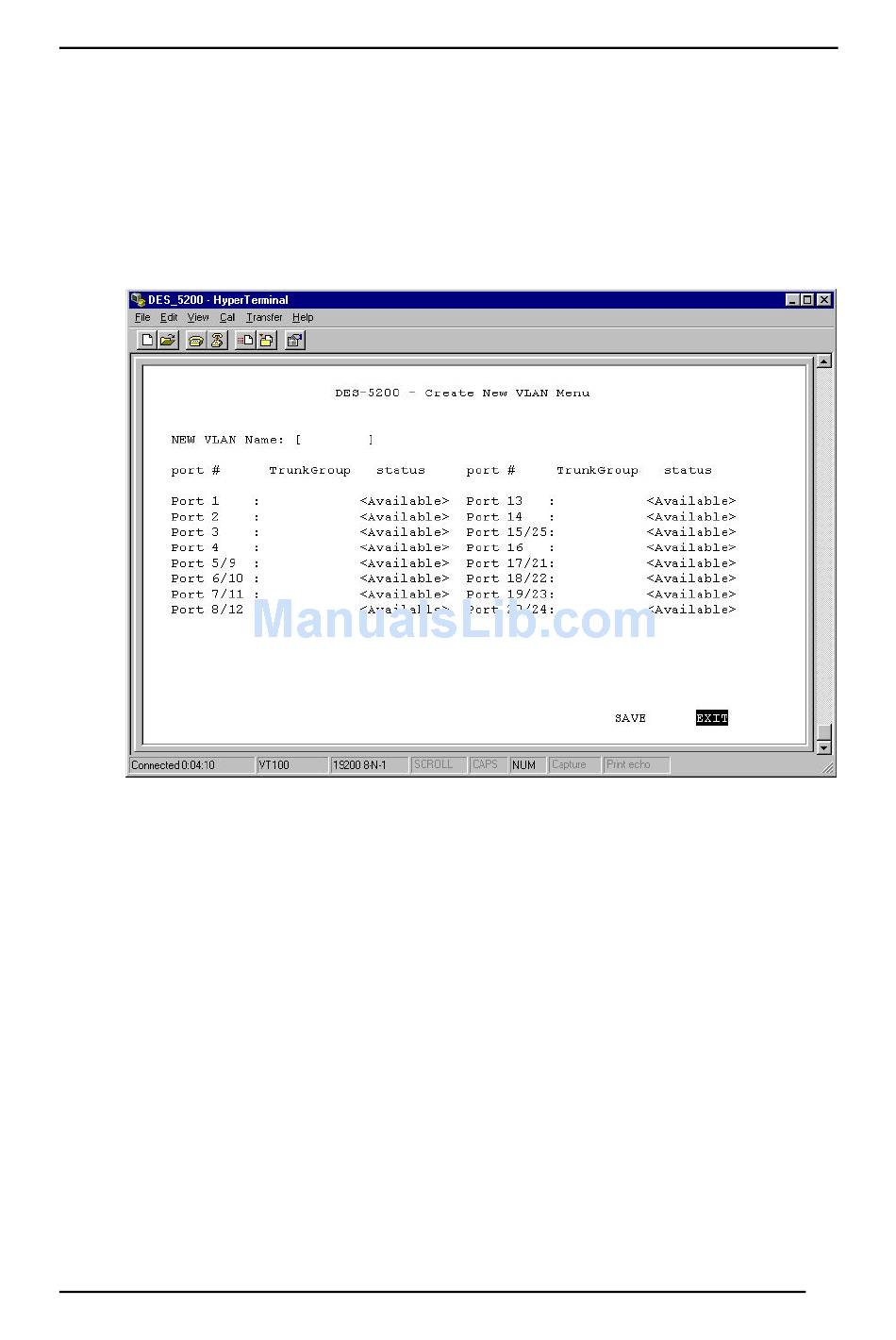

Figure 43: Create New VLAN Menu

New VLAN Name

Is the name of the VLAN you are creating. All VLANs must have a unique name.
Port #
Is the number of the port. The numbers on the panel match the ports on the DES-
5200.
TrunkGroup
This field identifies the trunk group that the port has been assigned to. The field is
open if the port has not been assigned to a Trunk Group.
Status
