Fast Ethernet Switching System User's Guide
Console Program

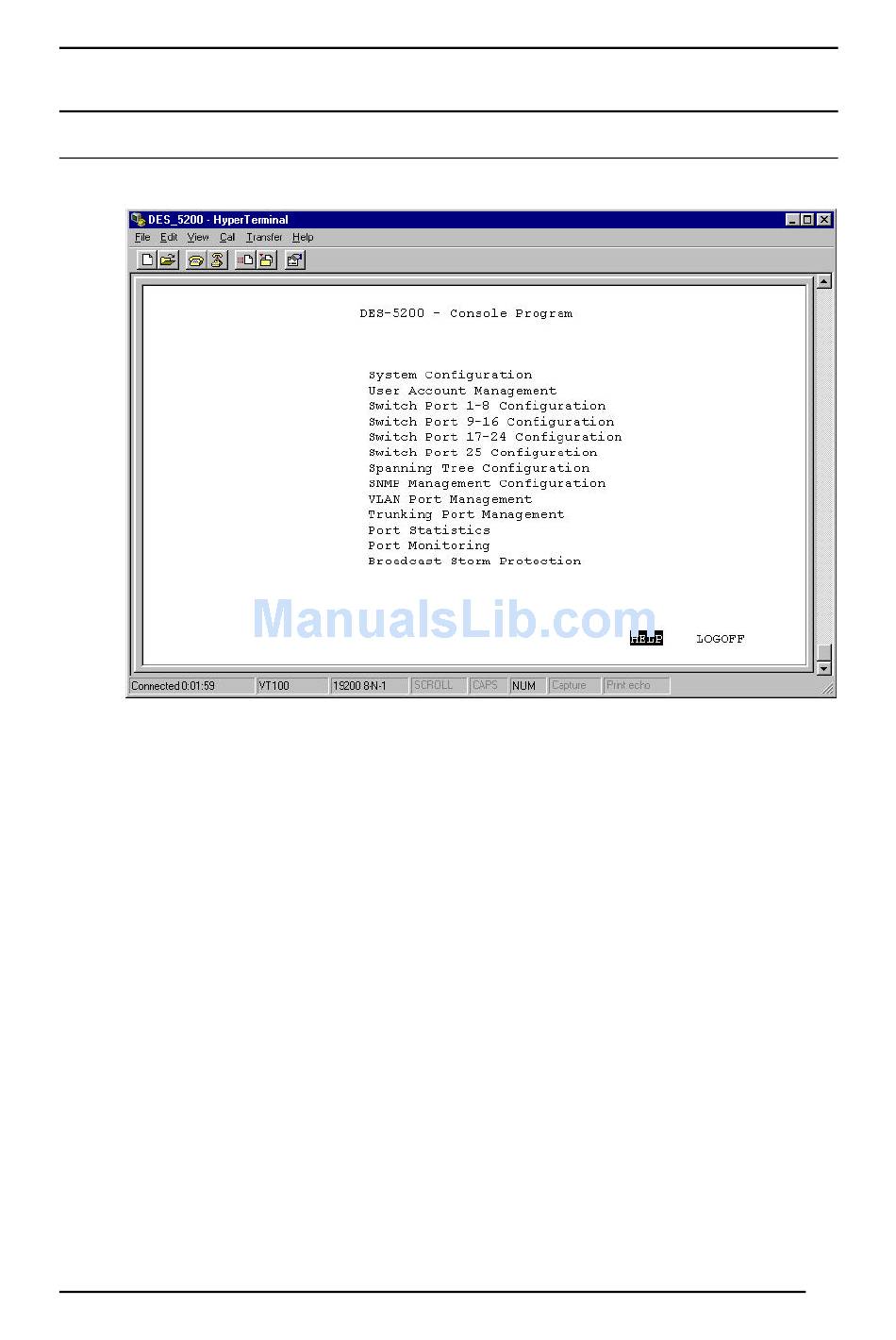

The Console Program, shown in Figure 21, is the main menu of the DES-5200.
Figure 21: Console Program
System Configuration
The System configuration menu shows general information about the DES-5200
and enables you to assign a LAN IP Address, Subnet Mask, LAN Default
Gateway and the contact information of the system administrator.
User Account Management
The User Account Management menu enables you to add users, delete users and
modify user account information.
Switch Port Configuration
The Switch Port Configuration menu enables you to configure individual ports.
You can set the speed, duplex mode, enable and disable ports and make other
changes. The panels and options may be different, depending on the DES-5200
model you purchased and the modules you have installed. Refer to Chapter 4,
LEDs, for an explanation of the differences between the modules.
Managing the DES-5200
43
