Analog Board #2 - Frick QUANTUM Maintenance Manual

S90-010 M
Page 46
FUTURE PID #1
FUTURE PID #2
FUTURE PID #3
ENTERING PROCESS
TEMPERATURE
TEMP. / PRESSURE
MONITORING
AUXILIARY ANALOG #1
TEMP. / PRESSURE
MONITORING
AUXILIARY ANALOG #2
TEMP. / PRESSURE
MONITORING
AUXILIARY ANALOG #3
TEMP. / PRESSURE
MONITORING
AUXILIARY ANALOG #4
TEMP. / PRESSURE
MONITORING
AUXILIARY ANALOG #5
TEMP. / PRESSURE
MONITORING
AUXILIARY ANALOG #6
TEMP. / PRESSURE
MONITORING
AUXILIARY ANALOG #7
TEMP. / PRESSURE
MONITORING
AUXILIARY ANALOG #8
TEMP. / PRESSURE
MONITORING
AUXILIARY ANALOG #9
SIDE LOAD /
ECONOMIZER
KW MONITORING

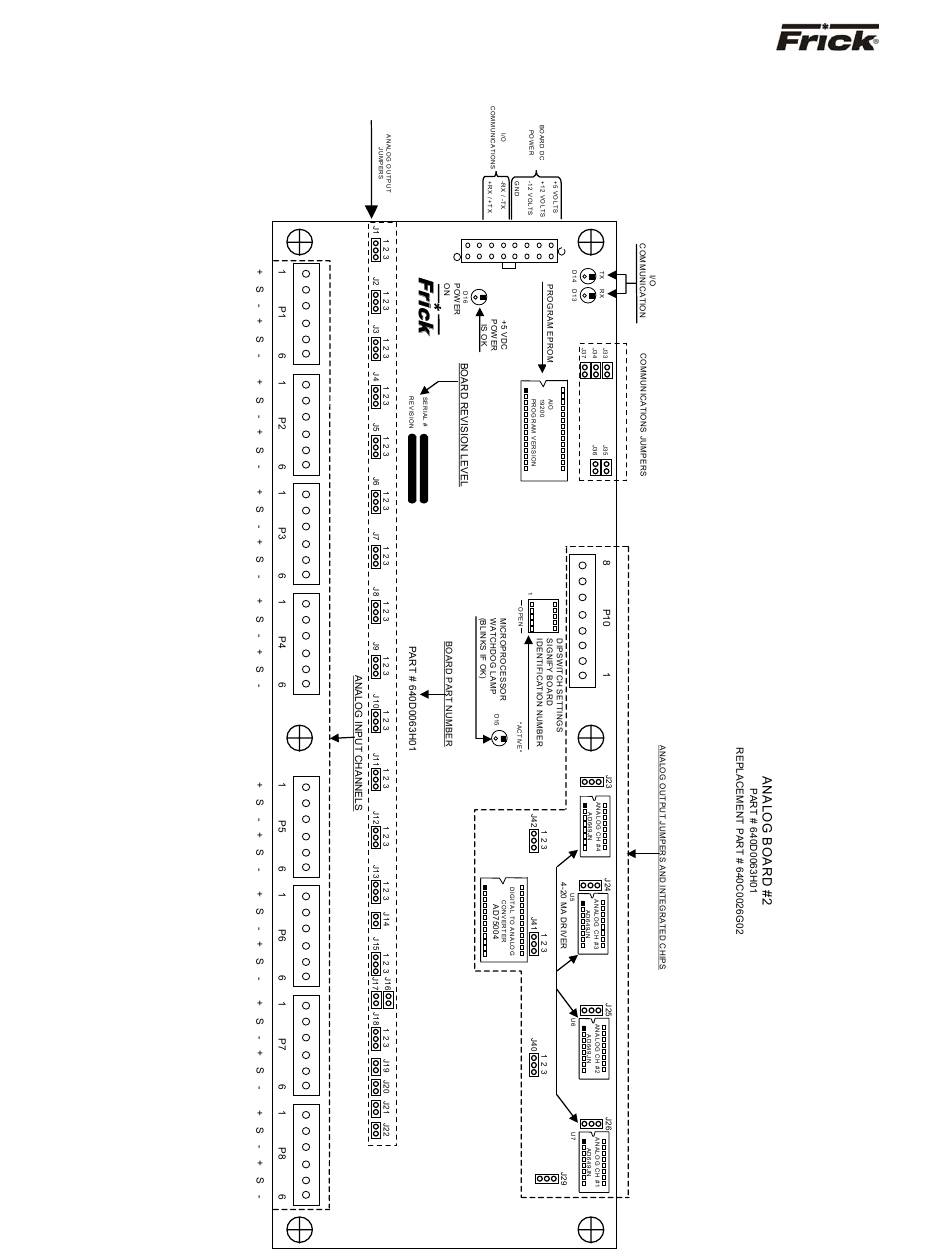

FRICK QUANTUM COMPRESSOR CONTROL PANEL

ANALOG BOARD #2

SPARE
MAINTENANCE
AMP794068-1 P9
1
U13
U15
1 2 3
PIN 8 = ANALOG OUTPUT #4
PIN 7 = GND
PIN 6 = ANALOG OUTPUT #3
PIN 5 = GND
PIN 4 = ANALOG OUTPUT #2
PIN 3 = GND
PIN 2 = ANALOG OUTPUT #1
PIN 1 = GND
1 2 3
U4
1 2 3
1 2 3
1 2 3
