Analog Board #1 - Frick QUANTUM Maintenance Manual

FRICK QUANTUM COMPRESSOR CONTROL PANEL
SUCTION TEMP.
DISCHARGE TEMP.
OIL TEMP.
SEPARATOR TEMP.
LEAVING PROCESS TEMP.
OIL PRESSURE
FILTER PRESSURE
DISCHARGE PRESSURE
SUCTION PRESSURE
BALANCE PISTON REG IF
REQUIRED
SYSTEM
DISCHARGE
REMOTE CONTROL SETPOINT
REMOTE 4-20 MA
SLIDE VALVE POSITION
SLIDE VALVE
SLIDE STOP
MOTOR AMPS
MAINTENANCE

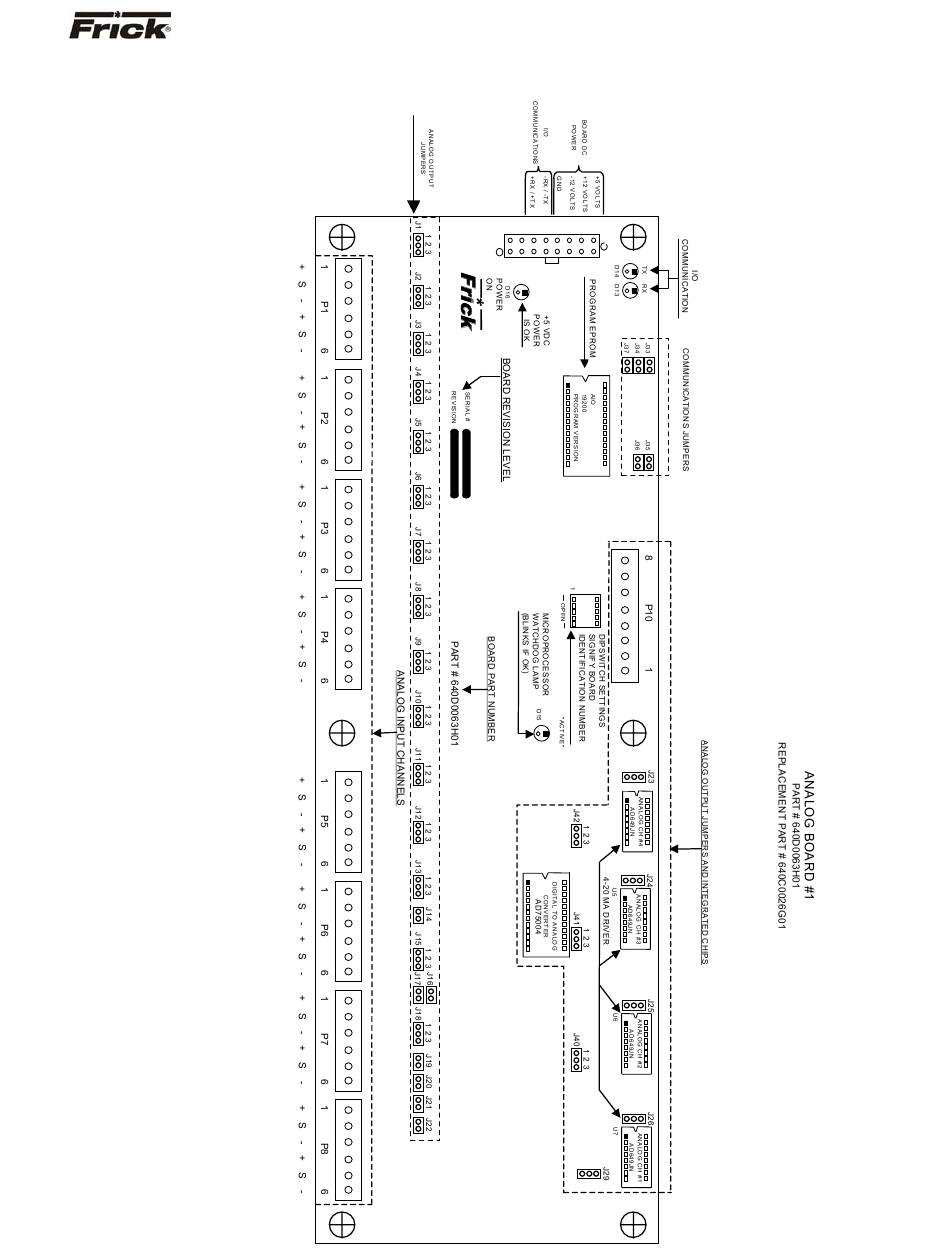

ANALOG BOARD #1

AMP794068-1
U13
U15
1 2 3
P9
1
PIN 8 = ANALOG OUTPUT #4
PIN 7 = GND
PIN 6 = ANALOG OUTPUT #3
PIN 5 = GND
PIN 4 = ANALOG OUTPUT #2
PIN 3 = GND
PIN 2 = ANALOG OUTPUT #1
PIN 1 = GND
1 2 3
U4
1 2 3
1 2 3
1 2 3
S90-010 M
Page 45
