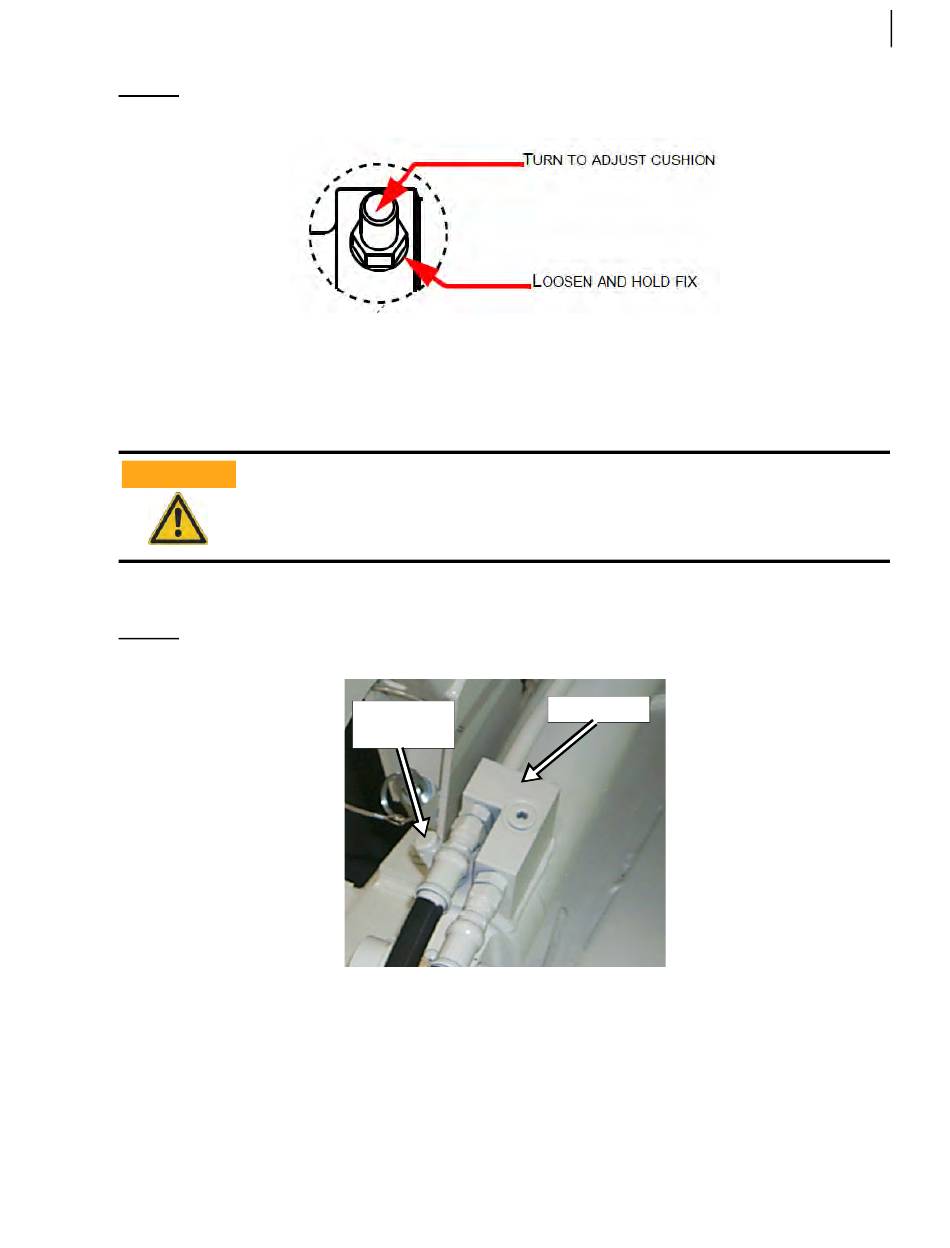

Figure 5-27
Lower cushion adjustment
Once the adjustment is done, tighten back the locknut.
13 c.
14.
Remove the bucket safety pins.
15.
Start the truck's engine.
16.
Turn ON the hydraulic pump.
WARNING!
Do not forget to fully open the hydraulic shut-off valve before starting the engine (see
Prior to Start Up on page 24).
17.
Move the bucket up and down a few times to test the lower-/upper-end cushioning and verify the
overall performance of the loading bucket mechanism.
Figure 5-28
Bucket cushion adjustment screw and holding valve
18.
Turn OFF the hydraulic pump.
19.
Turn OFF the engine.
Adjustment
screw
Loading Container Maintenance 61
Holding valve
