Adjusting Length of Mobile Roof Rods

The adjustment of the rods on the mobile roof is done to make sure the mobile roof position is
horizontally parallel to the adjacent roofs and its movement is free and smooth.
To adjust the length of the mobile roof rods:
1.
Ensure the roof is set horizontally parallel to the other roof structures on both ends, rear and
front, as well as on both sides.

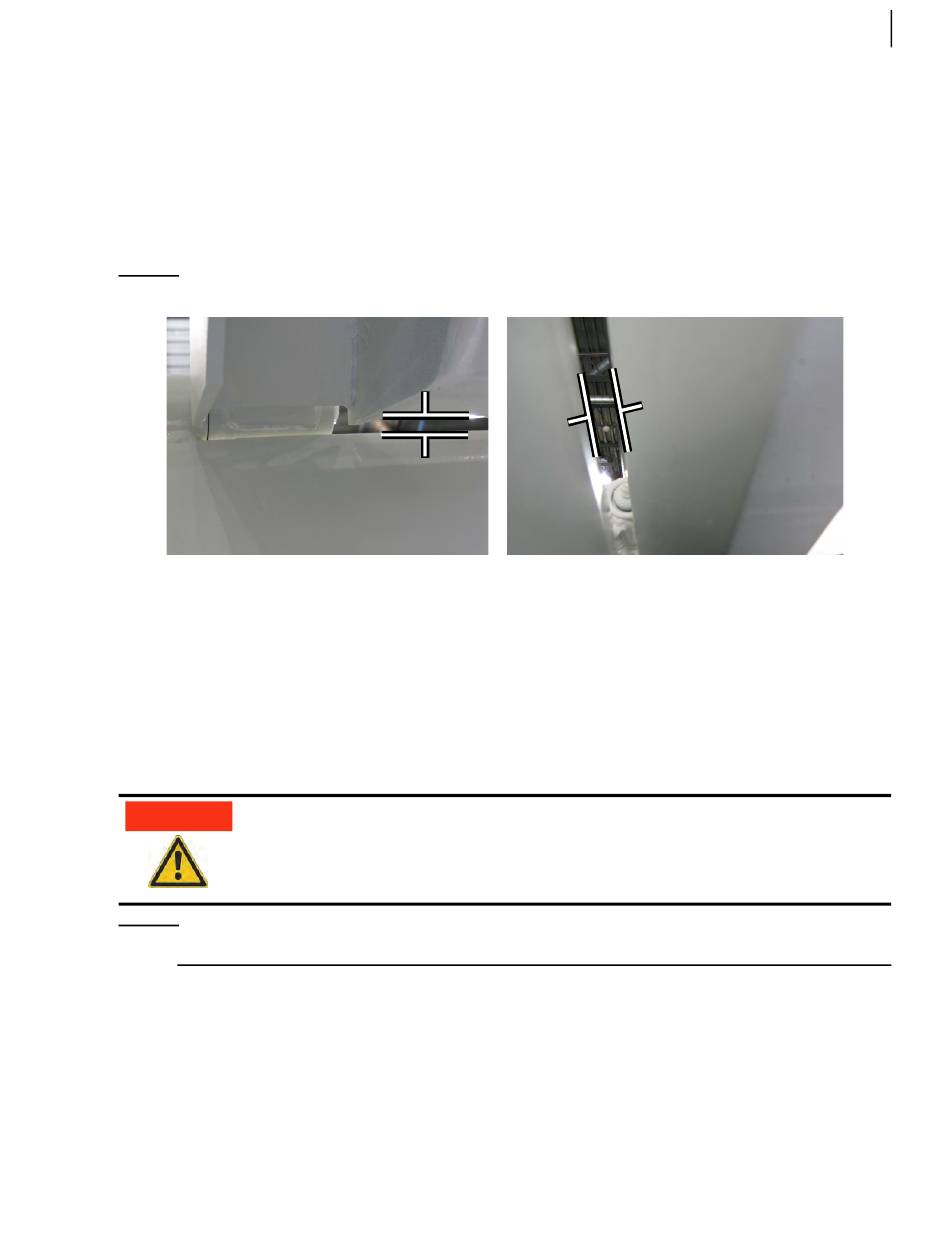

Figure 5-19 Setting roof parallel to other roof structures
2. Adjust the length of both rods to meet the requirement of horizontal alignment of the roof.

Replacing Loading Bucket Hydraulic Cylinders

When the hydraulic cylinders that operate the loading bucket need maintenance or replacement,
perform the following procedure.
To replace the loading bucket cylinders, do the following:
1.
Ensure the parking brake is applied.
DANGER!
At least 2 people are required for this procedure.
N : Perform this procedure one cylinder at a time.
OTE
2.
Start the truck's engine.
3.
Engage the hydraulic pump.
4.
Raise the bucket to the fullest.
5.
Disengage the hydraulic pump.
6.
Stop the engine.
7.
Apply the Lockout/Tagout procedure (refer to "Lockout/Tagout Procedure" on page 22).
Loading Container Maintenance 55
