52 Loading Container Maintenance

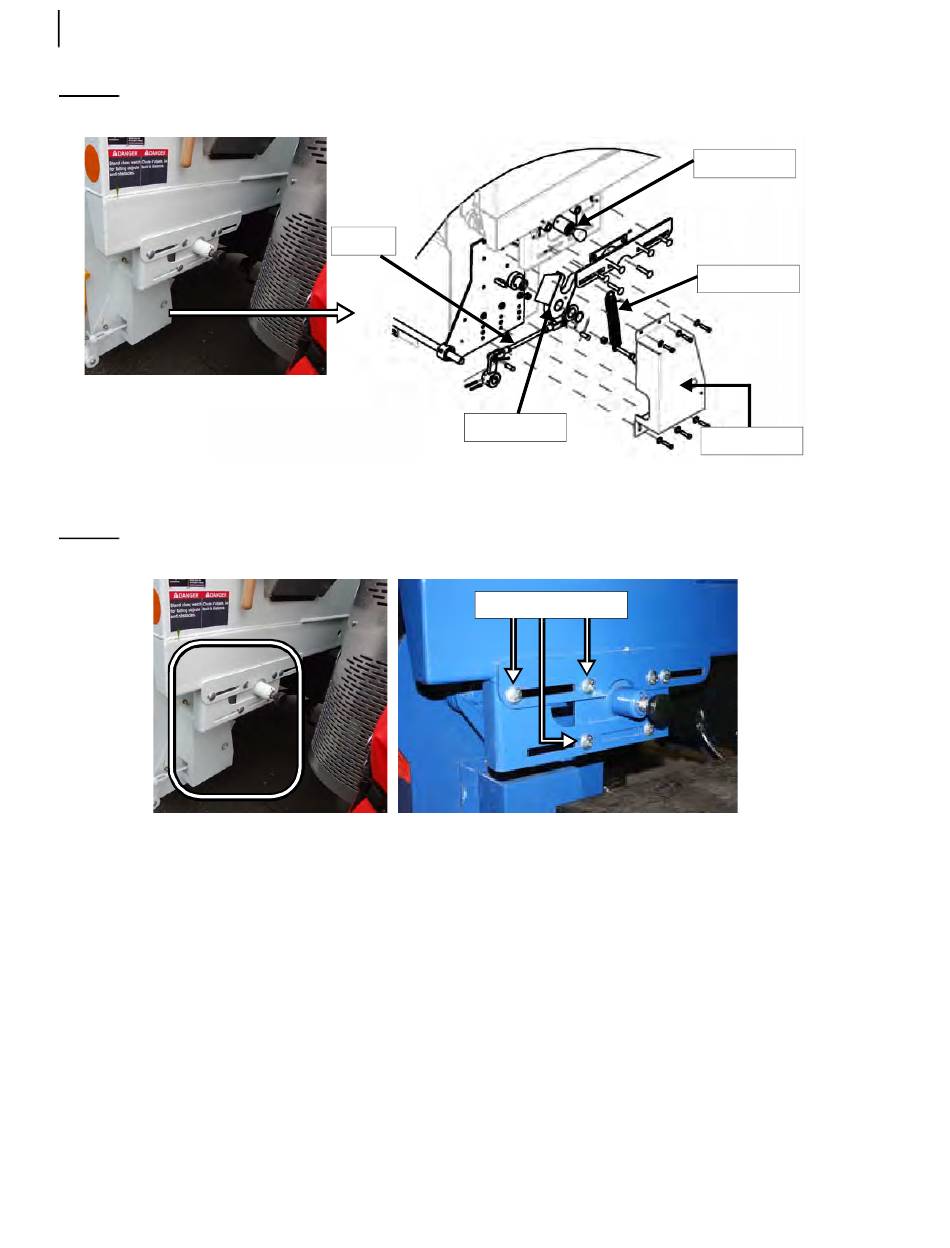

Figure 5-14 Components of the latch system
Verify that the overcenter locking system is properly locked before the bucket goes up. The shaft
must be lined up with the center of the latch mechanism.
Figure 5-15 Automatic Cart Latch System
Should the mechanism not be aligned and the latch (see Figure 5-16) not be in the fully up position,
apply the following adjustment procedure.
To adjust the automatic latch:
1.
Move the bucket to the same height as shown in Figure 5-15 (left picture).
2.
Apply the Lockout/Tagout procedure (see Lockout/Tagout Procedure on page 22).
3.
Use the adjustment screws (Figure 5-15, right picture) to align the shaft with the latch.
4.
Once the alignment is done, tighten the screws.
5.
Start the truck's engine.
Rod
Latch
Adjustment screws
Shaft handle
Spring
Cover
