Sliding The Drawer In And Out - ADC TrueNet 1U Installation And Cable Routing Instructions

ADCP-92-082 • Issue 2 • 10/2008
2.4

Sliding the Drawer In and Out

The panel has a tray release button and tray retainer clips designed to ensure that the drawer is
opened carefully and remains open until work in the drawer is competed. These items look the
same and operate the same on the 1U and 2U panels.
Use the following procedure to slide the drawer in and out (2U shown):
1. To release a closed drawer, press the release button down, as shown in
the drawer out to the first detent.
2. To free the drawer to open it fully, press in the retainer clips (one on each side) located as
shown in
3. To release an open drawer to close it, release the retainer clips (one on each side) located
as shown in
Page 8
© 2008, ADC Telecommunications, Inc.
Figure 7. Slide the drawer out until it locks into place.
Figure 8. Slide the drawer in until it locks into the closed position.
PRESS BUTTON DOWN
TO PULL TRAY OUT
TO FIRST DETENT

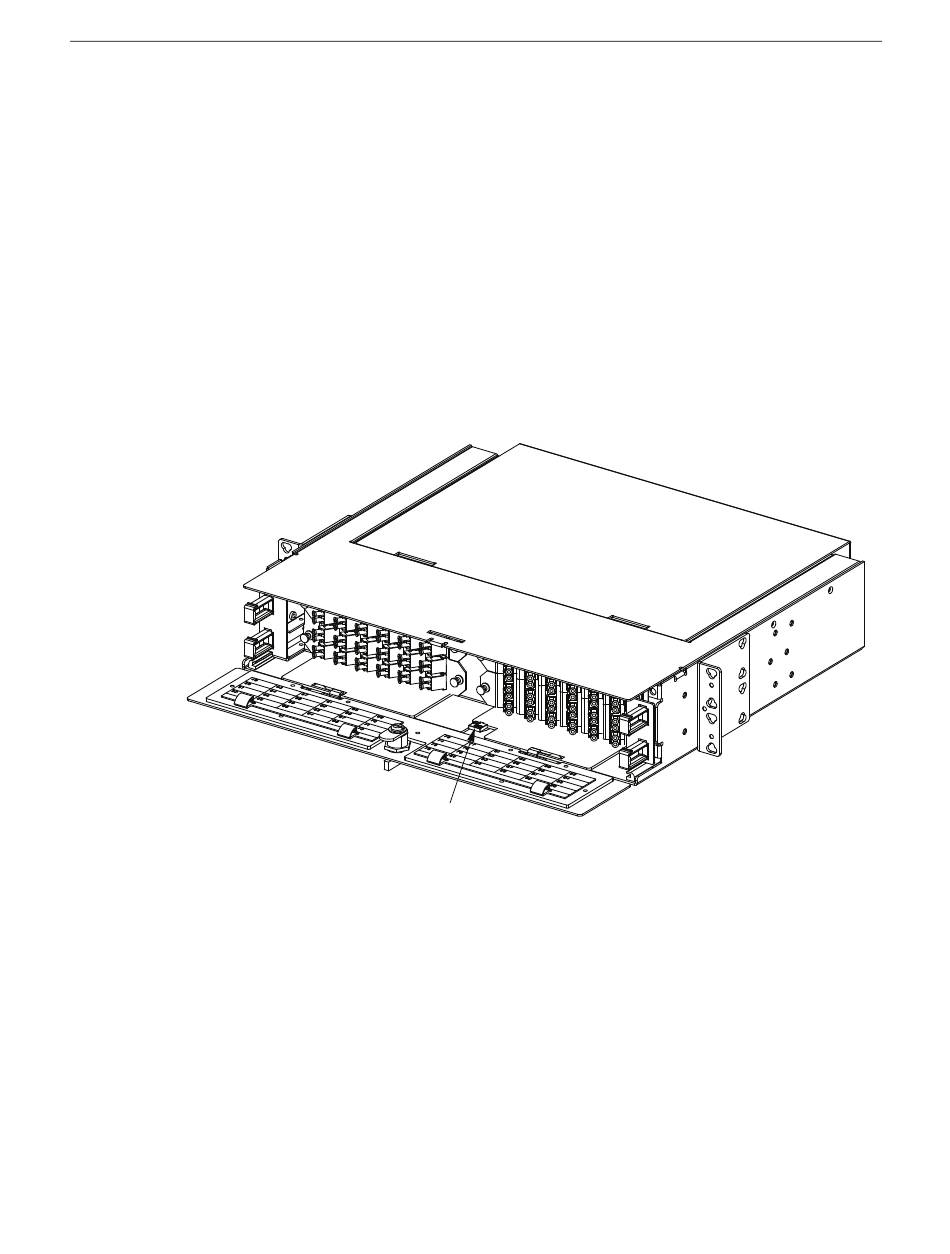

Figure 6. Releasing Closed Drawer to Open It
Figure 6, and slide
22100-A
