Routing Pigtails and OSP Fibers in Splice Tray

Route the pigtail and OSP fibers in the splice tray as shown in the
Use Velcro to secure the splice tray to the panel.
Note: For location of the velcro, refer to
PIGTAIL FIBERS
FROM ADAPTERS
USE LACING TO
SECURE SUBUNIT
USE LACING TO
SECURE SUBUNIT

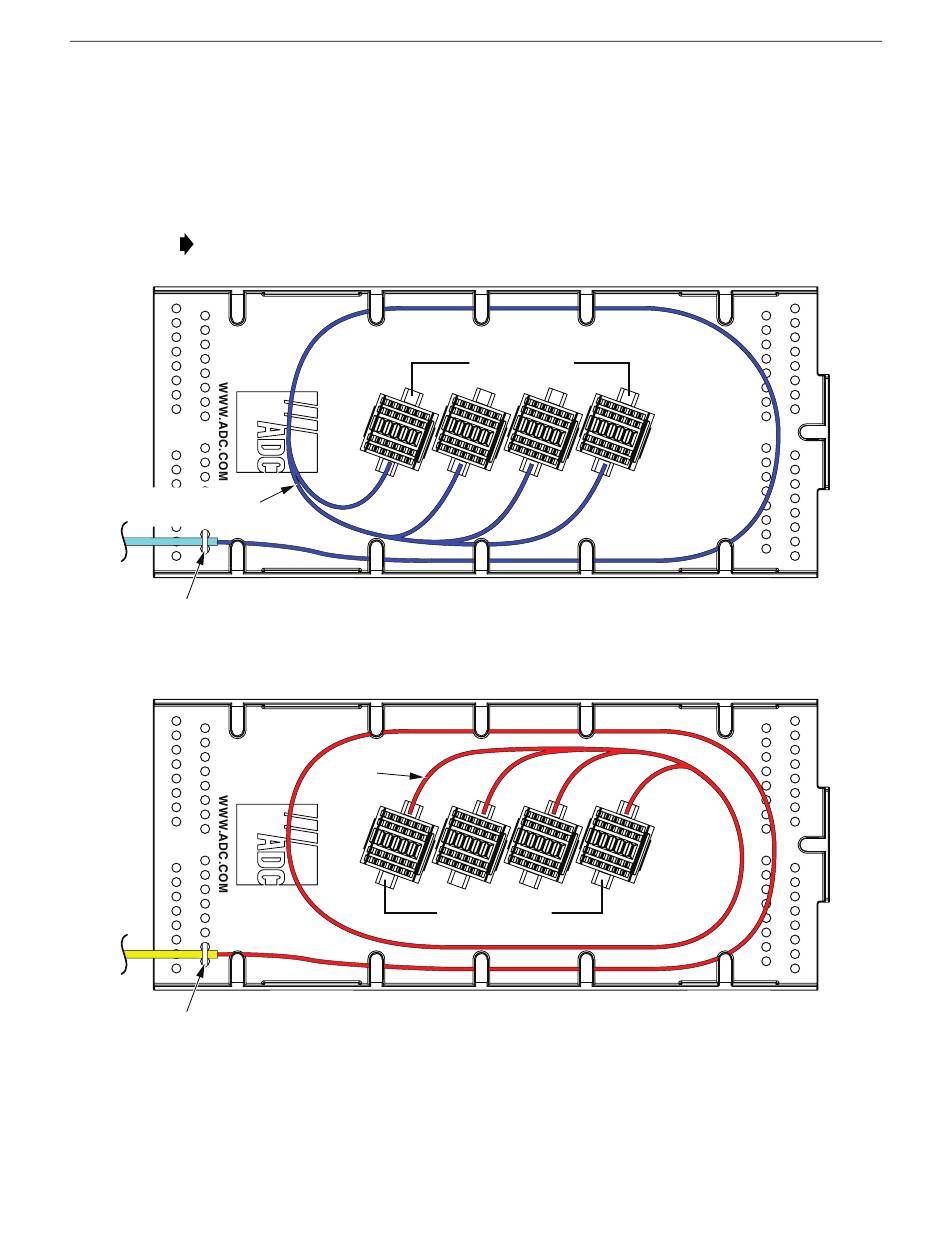

Figure 19. Routing Pigtails and OSP Fibers in Splice Tray
OSP
BREAKOUT
SIDE
PIGTAIL FIBER ROUTING
OSP
FIBERS
PIGTAIL
BREAKOUT
SIDE
OSP FIBER ROUTING
Figure
Figure 18 on the previous page.
