3 CABLE CLAMP INSTALLATION

3.1

Installing a Cable Clamp for OSP Cable

For both termination and splice panels and termination only panels, an OSP cable must be
installed and routed. The procedure is the same regardless of the type of panel being installed.
The OSP cable can enter the panel from the left or right side of the panel (as viewed from the
rear of the panel).

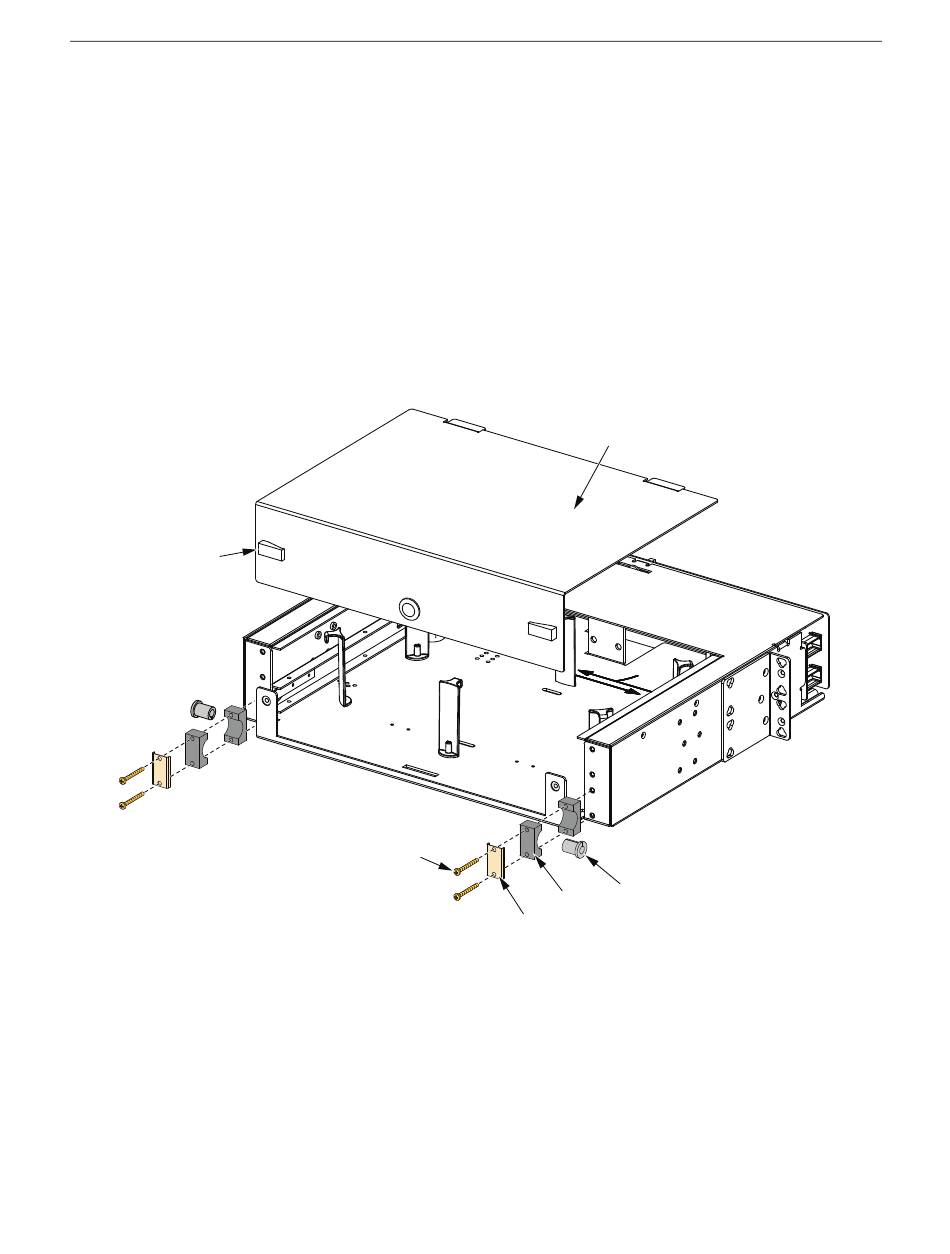

Determine the direction of cable entrance and install the cable clamp as shown in the example in
Figure 13.
SWELL
LATCH (2)
LEFT SIDE
OSP CABLE
ENTRANCE
SCREW (2)
Figure 13. Cable Clamp Assembly for OSP Cable
REAR COVER
CAN BE REMOVED
TO AID IN OSP
CABLE ROUTING
GROMMET
(SIZE DETERMINED
YOKE (2)
BY DIAMETER OF
OSP CABLE)
PLATE
RIGHT SIDE
OSP CABLE
ENTRANCE
© 2008, ADC Telecommunications, Inc.
ADCP-92-082 • Issue 2 • 10/2008
22055-A
Page 13
