ADCP-92-082 • Issue 2 • 10/2008
4.2.3

Routing OSP Cable, Left Side Entry (MPO Cassettes)

For left side cable entry in a panel with MPO cassettes, route the OSP cable from the cable
clamp position to the MPO casettes as shown in
the perspective of the front of the panel.
OSP CABLE
Page 22
© 2008, ADC Telecommunications, Inc.
CABLES SHOULD BE LONG
NOTE:
ENOUGH TO COMPLETELY
PULL OUT THE SLIDING TRAY
- DRAWER IN CLOSED POSITION
NOTE:
- TOP COVER NOT SHOWN, FOR CLARITY
- REAR COVER REMOVED

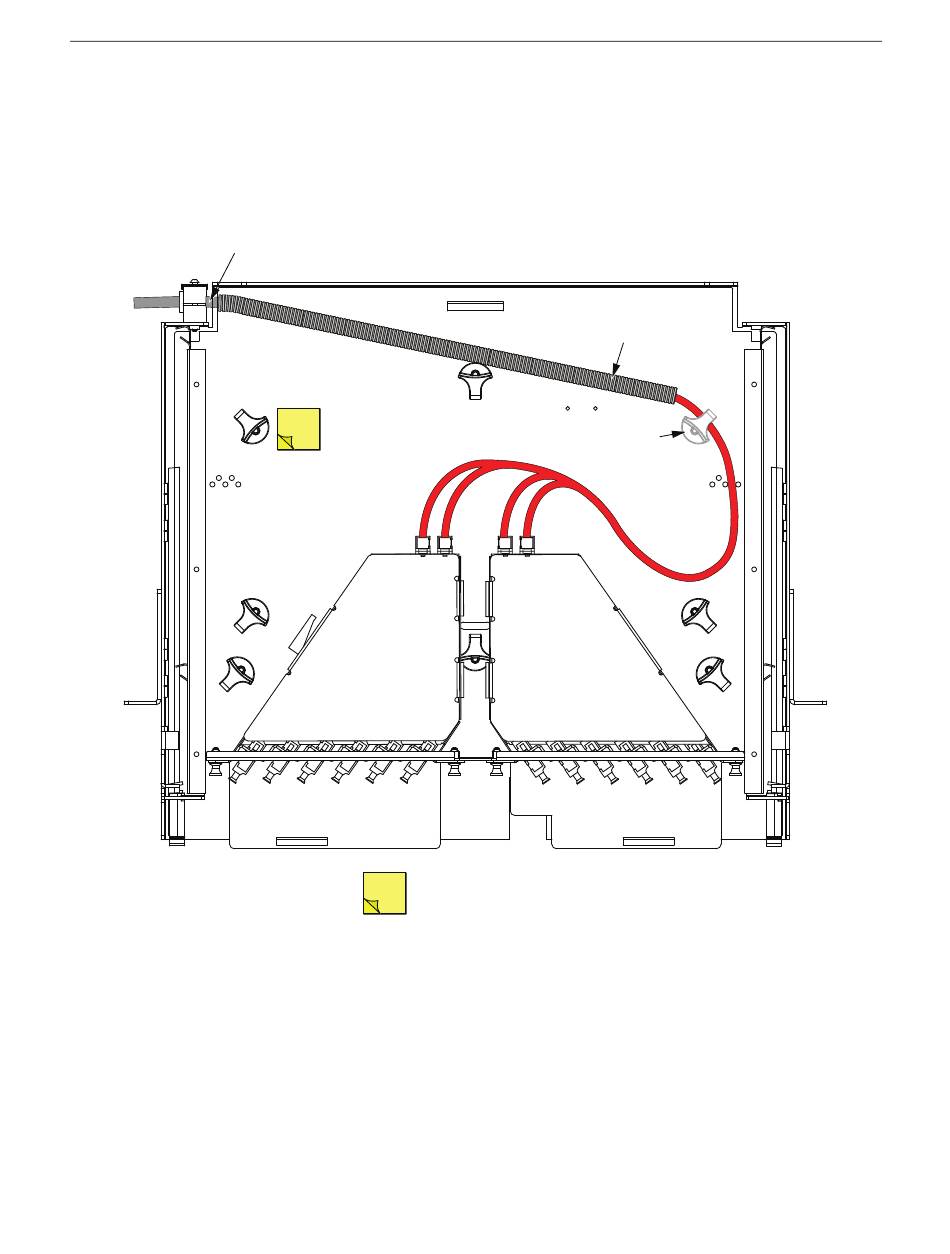

Figure 22. Routing OSP Cable, Left Side Entry (MPO Cassettes)
Figure 22. Note that "left" is defined here from
CONVOLUTED
TUBING
(PROVIDED)
REMOVE THIS
RADIUS LIMITER
FOR LEFT SIDE
ENTRY
22069-A
