4 CABLE ROUTING PROCEDURES
4.1
Termination and Splice Panel Procedures
4.1.1
Routing Pigtails
Typically, the termination and splice panel is shipped without adapter packs or pigtails and will
therefore need to be configured as required. Alternatively, the panel may have been ordered with
adapter packs pre-cabled with pigtails or with MPO cassettes already installed. If pigtails need
to be routed in the panel being installed, route the pigtails corresponding to the example shown
in
Figure 15
IF NECESSARY, PULL EACH 900 MICRON FIBER FROM
STUB END OF SUBUNIT, TO CORRECT LENGTH TO
ELIMINATE SLACK AT ADAPTER PACK.
for a right side adapter pack or
SLACK LOOP AROUND OUTSIDE OF
NOTE:
SPLICE TRAY IS NOT REQUIRED
RECOMMENDED CABLE
LENGTH FROM STUB END
TO CONNECTOR IS 108 INCHES
STUB
END

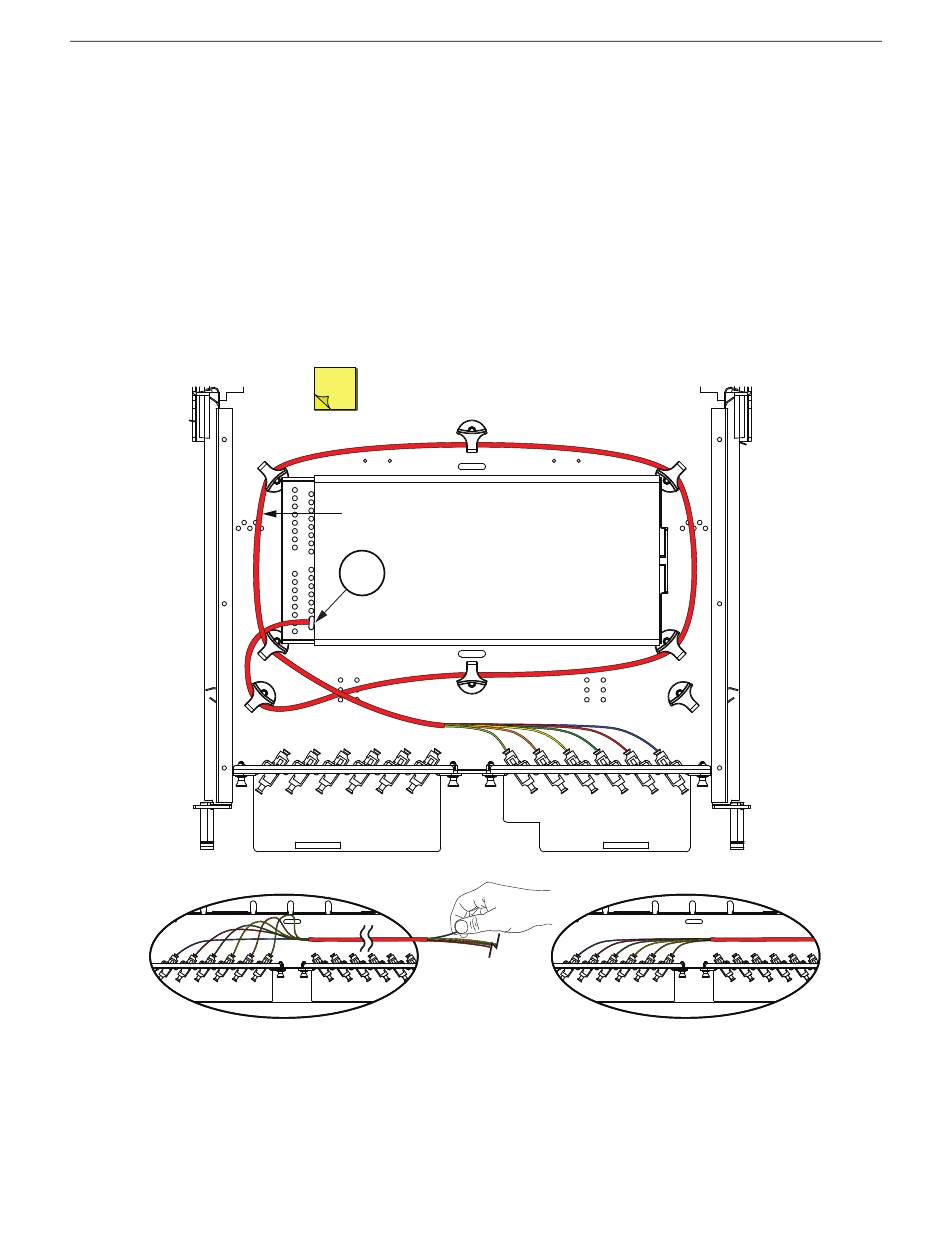

Figure 15. Routing Pigtails from Right Side (Top View)
Figure 16
for a left side adapter pack.
FOR SPLICE TRAY ROUTING,
SEE SECTION 3.3,
"SPLICE TRAY ROUTING"
CORRECT LENGTH AT ADAPTER PACK
ADCP-92-082 • Issue 2 • 10/2008
22072-A
Page 15
© 2008, ADC Telecommunications, Inc.
