Warning: Never install equipment in a wet location or during a lightning storm. When
installing or modifying communication lines, disconnect lines at the network interface before
working with uninsulated lines or terminals.
2.1

Selecting a Mounting Bracket Option

The 1U and 2U panels are shipped with mounting brackets configured for a 19-inch EIA/
WECO rack with a 5-inch recess. The mounting brackets can also be reconfigured for a 4-inch
rack recess.
5 INCH RACK RECESS
POSITION (AS SHIPPED)
1U FIBER PANEL
5 INCH RACK RECESS
POSITION (AS SHIPPED)
2U FIBER PANEL

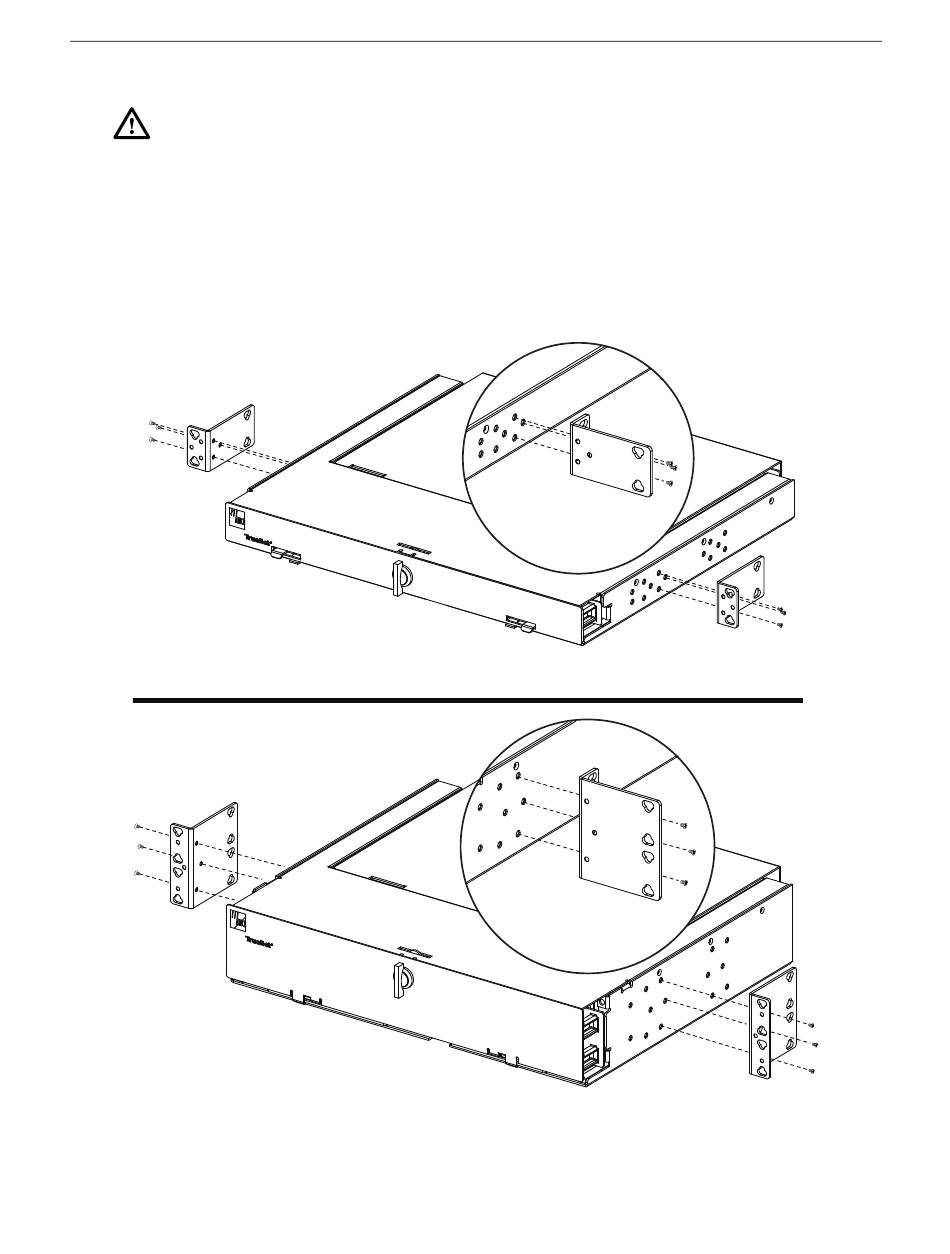

Figure 3 shows the available mounting options for both panels.
Figure 3. Selecting a Mounting Bracket Option
ADCP-92-082 • Issue 2 • 10/2008
ROTATE BRACKET
FOR 23-INCH
RACK MOUNTING
ROTATE BRACKET
FOR 23-INCH
RACK MOUNTING
© 2008, ADC Telecommunications, Inc.
22052-A
Page 5
