Routing Osp Cable, Right Side Entry (Mpo Cassettes) - ADC TrueNet 1U Installation And Cable Routing Instructions

4.2.4

Routing OSP Cable, Right Side Entry (MPO cassettes)

For right side cable entry in a panel with MPO cassettes, route the OSP cable from the cable
clamp position to the MPO cassettes as shown in
the panel.
CONVOLUTED
TUBING
(PROVIDED)
REMOVE THIS
RADIUS LIMITER
FOR RIGHT SIDE
ENTRY

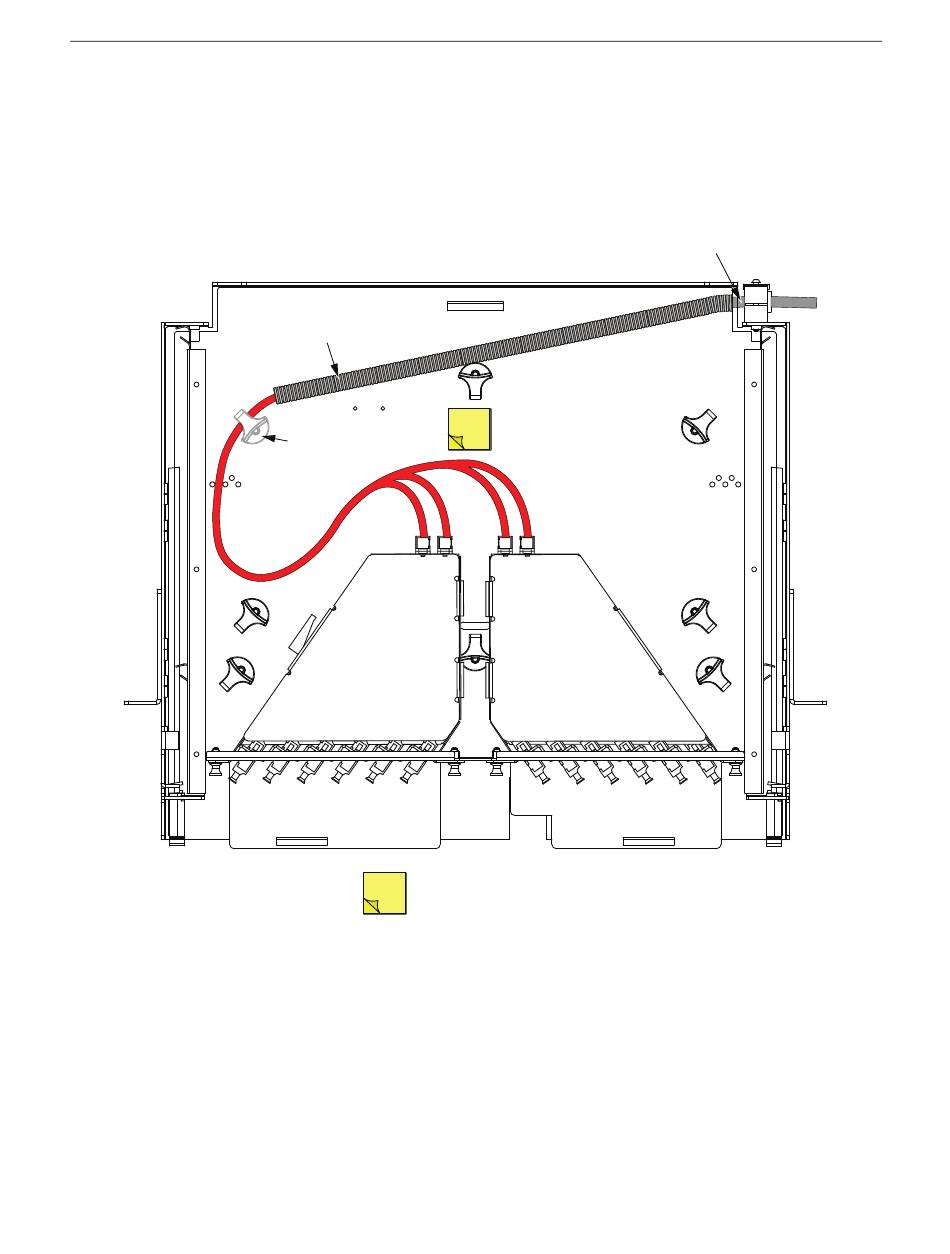

Figure 23. Routing OSP Cable, Right Side Entry (Adapter Packs)
Figure
CABLES SHOULD BE LONG
NOTE:
ENOUGH TO COMPLETELY
PULL OUT THE SLIDING TRAY
- DRAWER IN CLOSED POSITION
NOTE:
- TOP COVER NOT SHOWN, FOR CLARITY
- REAR COVER REMOVED
ADCP-92-082 • Issue 2 • 10/2008
23. "Right" is defined from the front of
OSP CABLE
22070-A
© 2008, ADC Telecommunications, Inc.
Page 23
