Termination Only Panel Procedures; Routing Osp Cable, Right Side Entry (Adapter Packs) - ADC TrueNet 1U Installation And Cable Routing Instructions

ADCP-92-082 • Issue 2 • 10/2008
4.2

Termination Only Panel Procedures

4.2.1

Routing OSP Cable, Right Side Entry (Adapter Packs)

For right side cable entry in a panel with adapter packs, route the OSP cable from the cable
clamp position to the splice tray as shown in
the perspective of the front of the panel.
Page 20
© 2008, ADC Telecommunications, Inc.
CONVOLUTED
TUBING
(PROVIDED)
APPROX. 9 INCHES
OF 900 um FIBER
EXPOSED
RECOMMENDED
BREAKOUT
LENGTH - 60 INCHES
TIE-DOWN
POINT
- DRAWER IN CLOSED POSITION
NOTE:
- TOP COVER NOT SHOWN, FOR CLARITY
- REAR COVER REMOVED

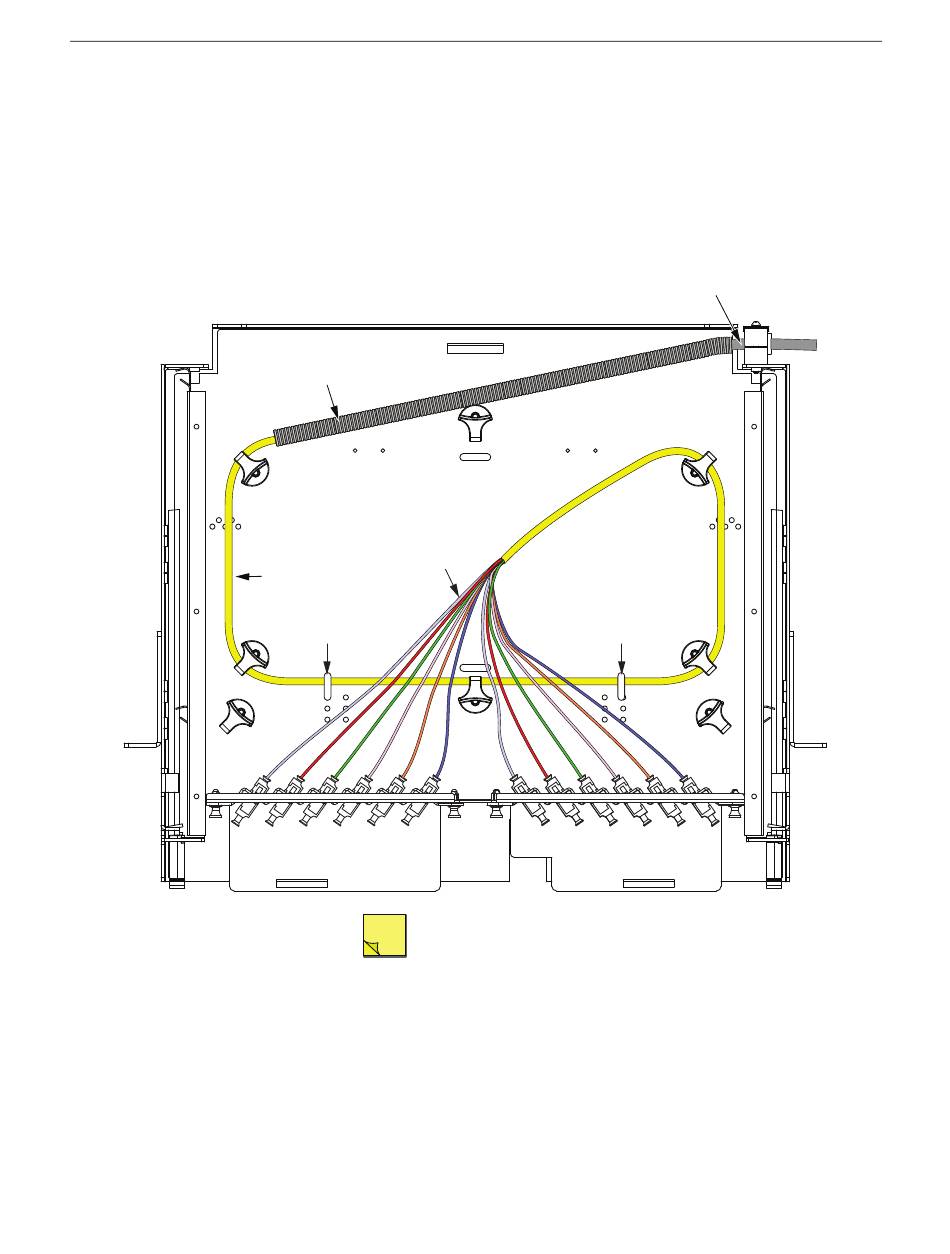

Figure 20. Routing OSP Cable, Right Side Entry (Adapter Packs)
Figure 20. Note that "right" is defined here from
OSP CABLE
TIE-DOWN
POINT
22068-A
