2.6

Installing Adapter Packs

The 1U panel accommodates two adapter packs. The 2U accommodates four adapter packs.
Adapter packs are installed in the same manner for both 1U and 2U panels. Adapter packs
installed on left side of panel are angled left while adapter packs installed on right side are
angled right. Install the adapter packs as shown in
INSTALL LEFT SIDE ADAPTER
PACKS WITH ADAPTERS ANGLED
TOWARD THE LEFT
NYLATCH PLUNGER FASTENERS MUST BE
PULLED OUT BEFORE INSERTING THE
ADAPTER PACK INTO MOUNTING HOLES
INSTALL ADAPTER PACKS
IN ORIENTATION SHOWN
MAKE SURE NYLATCH
PLUNGER FASTENERS
ARE PULLED OUT
"OUT"
POSITION
IN PANEL

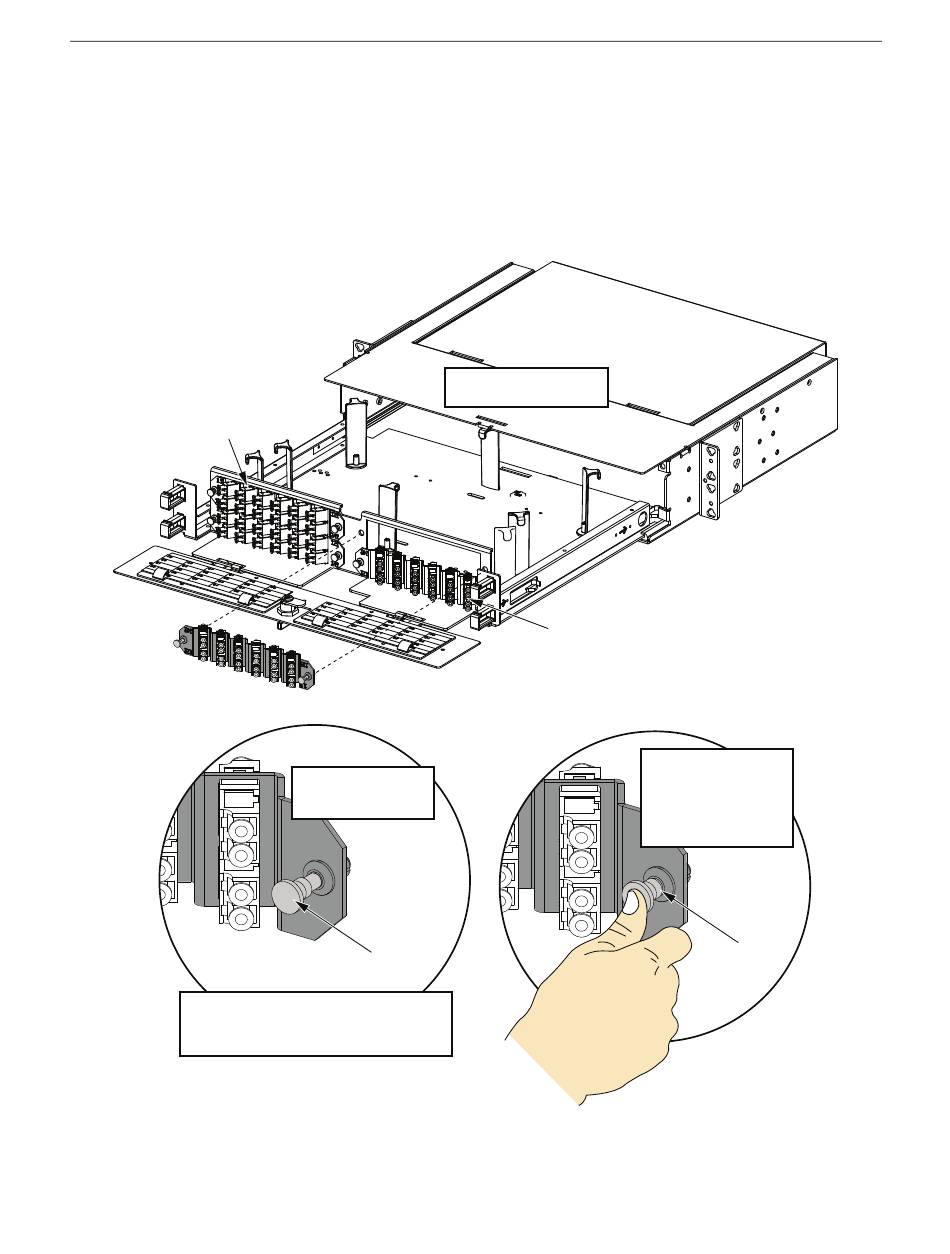

Figure 11. Installing Adapter Packs
ADCP-92-082 • Issue 2 • 10/2008
Figure 11 (2U shown).
INSTALL RIGHT SIDE ADAPTER PACKS
WITH ADAPTERS ANGLED TOWARD THE RIGHT
AFTER INSTALLING
ADAPTER PACK,
PUSH NYLATCH
PLUNGER FASTENERS
"IN" TO LOCK ADAPTER
PACK INTO PANEL
© 2008, ADC Telecommunications, Inc.
"IN"
POSITION
21568-B
Page 11
