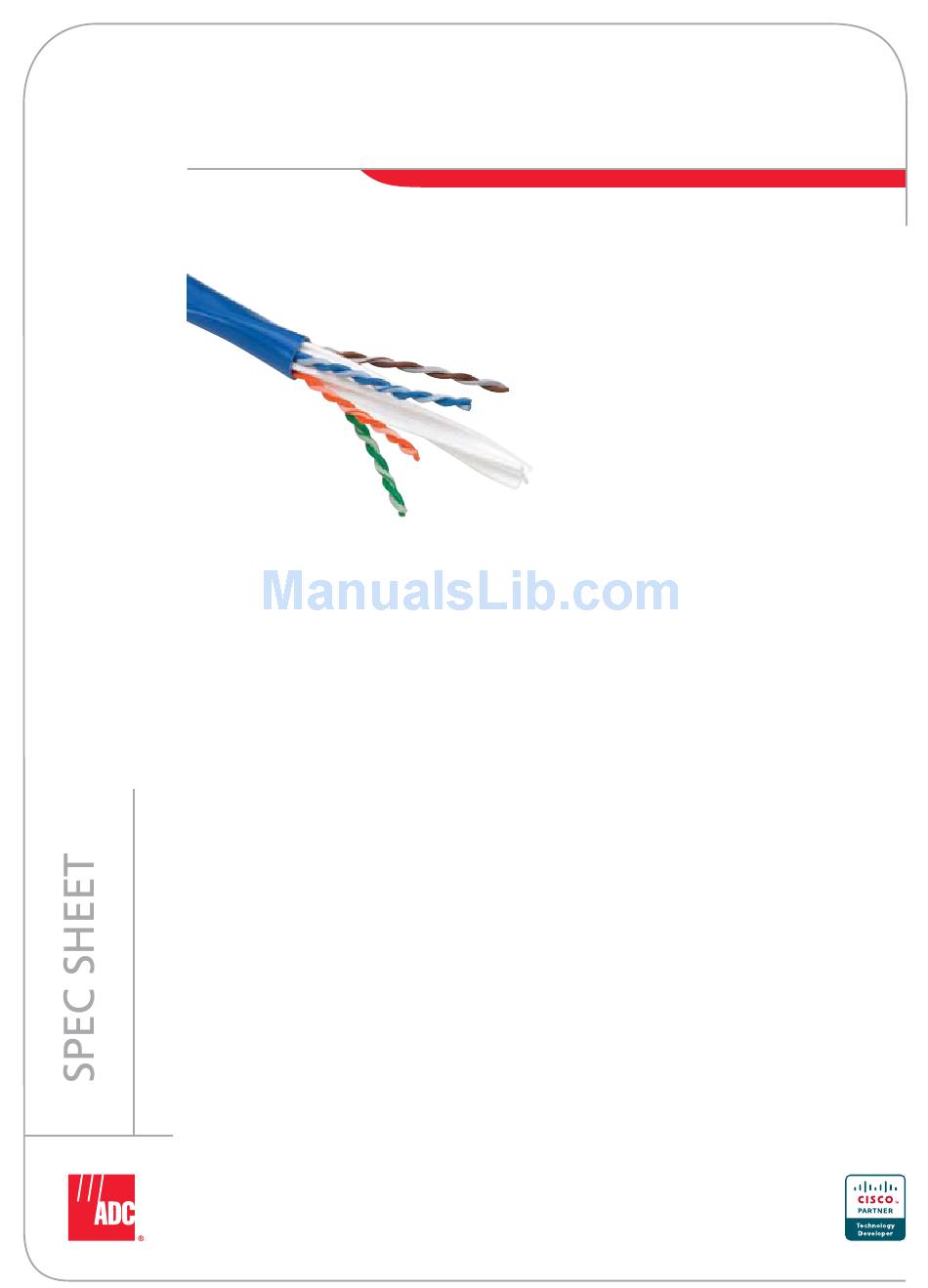

TrueNet
®
CopperTen
Four-Pair Riser Cable
®
An integral part of ADC's TrueNet
UTP structured cabling system to enable 10 Gigabit Ethernet over a full 100 meters. Installed
in high-performance networks worldwide, the system's patent-pending design minimizes
alien crosstalk and insertion loss and meets the performance requirements of IEEE 802.3an,
ISO 11801 Class EA and TIA/EIA-568-B.2-10 standards.
Features:
•
Patent-pending oblique elliptical offset filler minimizes alien crosstalk
•
Manufactured with lead-free materials
Compliances:
•
UL Subject 444
•
(UL)-C(UL) Type CMR/CMG
•
ICEA S-90-661
•
NEC 800 Type CMR
•
TIA/EIA 568-B.2-10 standard
•
ISO/IEC 11801 CLASS EA Category 6a horizontal cable requirements
w w w . a d c . c o m • + 1 - 9 5 2 - 9 3 8 - 8 0 8 0 • 1 - 8 0 0 - 3 6 6 - 3 8 9 1
Structured Cabling System, CopperTen
®
is the world's first
®
Advertisement
Related Manuals for ADC TrueNet Four-Pair Riser Cable
Summary of Contents for ADC TrueNet Four-Pair Riser Cable
- Page 1 CopperTen Four-Pair Riser Cable ® An integral part of ADC’s TrueNet UTP structured cabling system to enable 10 Gigabit Ethernet over a full 100 meters. Installed in high-performance networks worldwide, the system’s patent-pending design minimizes alien crosstalk and insertion loss and meets the performance requirements of IEEE 802.3an, ISO 11801 Class EA and TIA/EIA-568-B.2-10 standards.
-
Page 2: Specifications
TrueNet ® CopperTen Four-Pair Riser Cable ® Specifications CONSTRUCTION CHARACTERISTICS Conductor: Insulation: Separator: Jacket: Nominal Outer Diameter: MECHANICAL CHARACTERISTICS Bend Radius During Installation: Installed: Pull Tension: ELECTRICAL CHARACTERISTICS Conductor DC Resistance @ 20° C (68° F) (Max): DC Resistance Unbalance (Max): Mutual Capacitance @ 20°... - Page 3 TrueNet ® CopperTen Four-Pair Riser Cable ® FITTED IMPEDANCE FREq (Ohms) (MHz) SPEC 100 ± 5 100 ± 3 100 ± 3 100 ± 3 100 ± 3 100 ± 3 100 ± 3 31.25 100 ± 3 62.5 100 ± 3 100 ±...
- Page 4 Specifications published here are current as of the date of publication of this document. Because we are continuously improving our products, ADC reserves the right to change specifications without prior notice. At any time, you may verify product specifications by contacting our headquarters office in Minneapolis. ADC Telecommunications, Inc.
