Admonishments
Important safety admonishments are used throughout this manual to warn of possible hazards to
persons or equipment. An admonishment identifies a possible hazard and then explains what
may happen if the hazard is not avoided. These warnings are flagged by use of the triangular
alert icon (seen below) and are listed in descending order of severity of injury or damage and
likelihood of occurrence.
Danger: Danger is used to indicate the presence of a hazard that will cause severe personal
injury, death, or substantial property damage if the hazard is not avoided.
Warning: Warning is used to indicate the presence of a hazard that can cause severe personal
injury, death, or substantial property damage if the hazard is not avoided.
Caution: Caution is used to indicate the presence of a hazard that will or can cause minor
personal injury or property damage if the hazard is not avoided.

1 DESCRIPTION

The TrueNet 1U and 2U Panels can accommodate up to 48 and 96 terminations, respectively.
The TrueNet 1U and 2U Panels can be configured for termination and splice or termination only
(without splice trays).
RADIUS LIMITERS FOR
CABLE MANAGEMENT (8)
BULKHEAD
ACCOMMODATES
ADAPTER PACKS OR
MPO CASSETTES
CABLE CLIP
(1 PER SIDE)
HINGED
FRONT
COVER

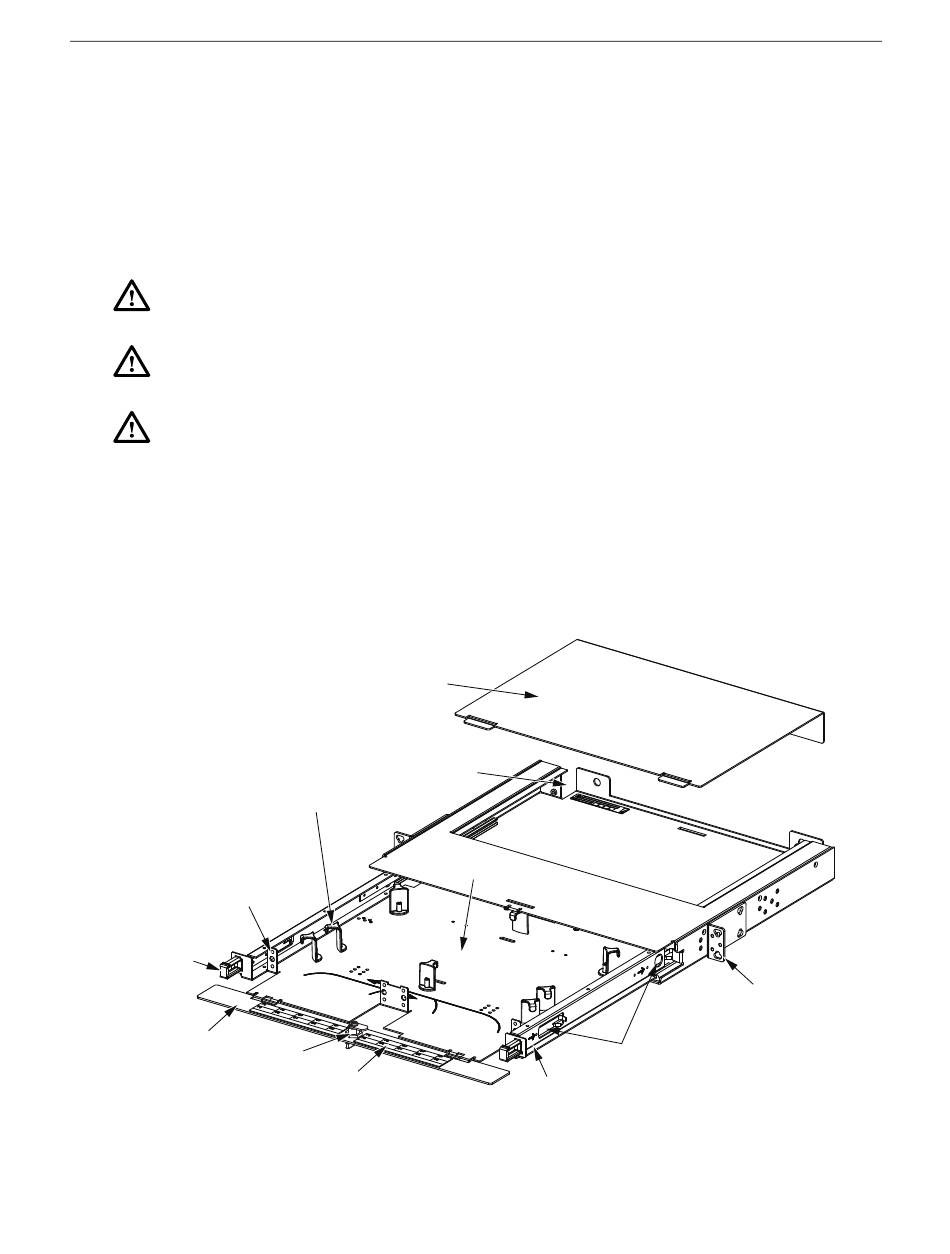

Figure 1 shows the external features of a typical 1U panel.
REMOVABLE REAR
COVER PROVIDES
EASY ACCESS FOR
CABLE ROUTING
AND MANAGEMENT
OSP CABLE ENTRY
(EITHER SIDE)
TRAY LOCATION
COVER
LATCH
DESIGNATION
LABEL (2)
Figure 1. TrueNet 1U Panel External Features
SPLICE
TRAY RETAINING
CLIPS (2 PER SIDE)
SLIDING
TRAY
ADCP-92-082 • Issue 2 • 10/2008
MOUNTING
BRACKET (2)
22074-A
