4.2.2

Routing OSP Cable, Left Side Entry (Adapter Cassettes)

For left side cable entry in a panel with adapter packs, route the OSP cable from the cable clamp
position to the splice tray as shown in
OSP CABLE
RECOMMENDED
BREAKOUT
LENGTH - 60 INCHES
TIE-DOWN
POINT

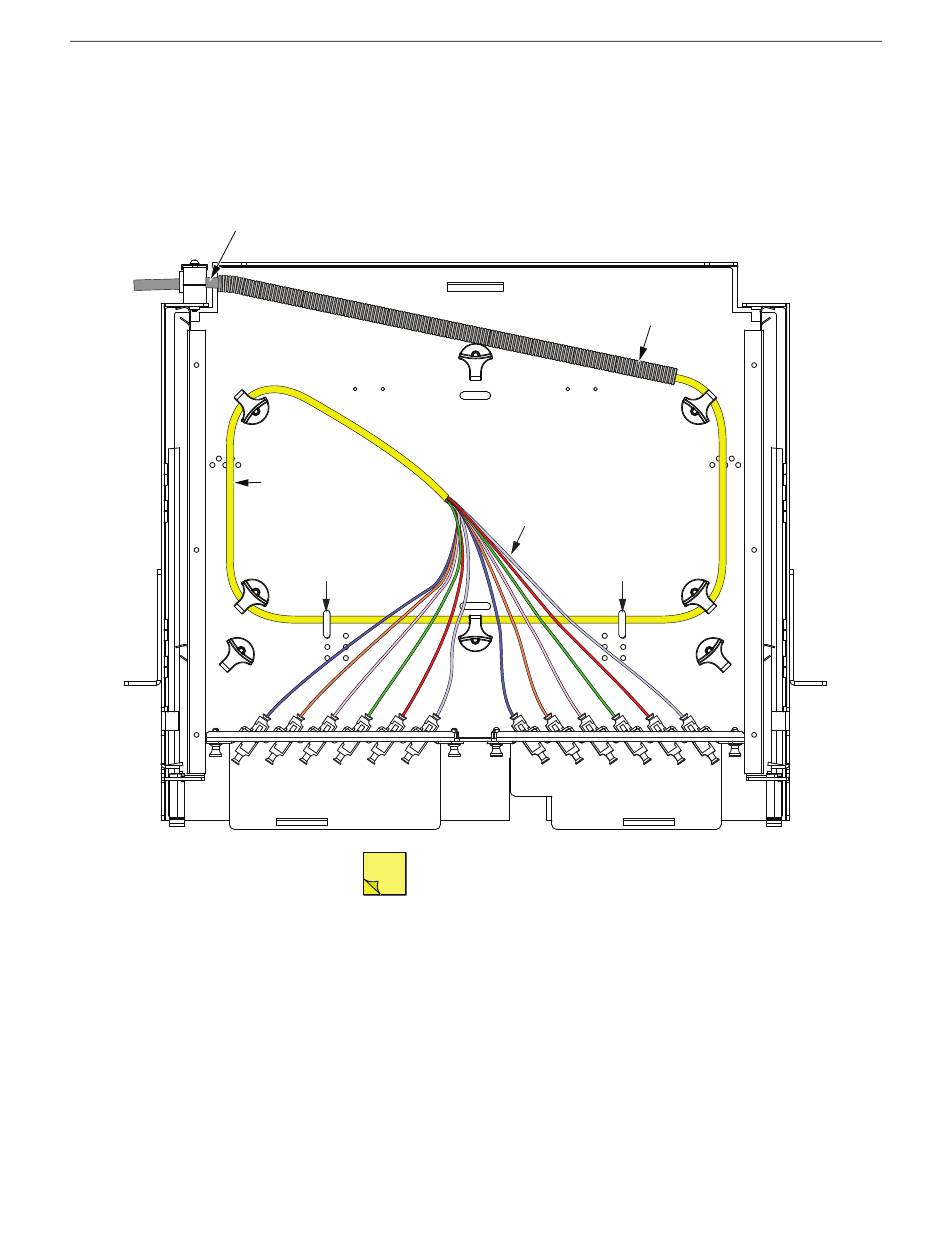

Figure 21. Routing OSP Cable, Left Side Entry (MPO Cassettes)
Figure 21. "Left" is defined from the front of the panel.
APPROX. 9 INCHES
OF 900 um FIBER
EXPOSED
- DRAWER IN CLOSED POSITION
NOTE:
- TOP COVER NOT SHOWN, FOR CLARITY
- REAR COVER REMOVED
ADCP-92-082 • Issue 2 • 10/2008
CONVOLUTED
TUBING
(PROVIDED)
TIE-DOWN
POINT
22067-A
