Routing MPO Trunk Cable, Left Side Entry (MPO Adapter Packs)

For left side cable entry in a panel with MPO adapter packs, route the MPO trunk cable from the
cable clamp position to the splice tray as shown in
the panel.
MPO TRUNK
CABLE
NOTE:

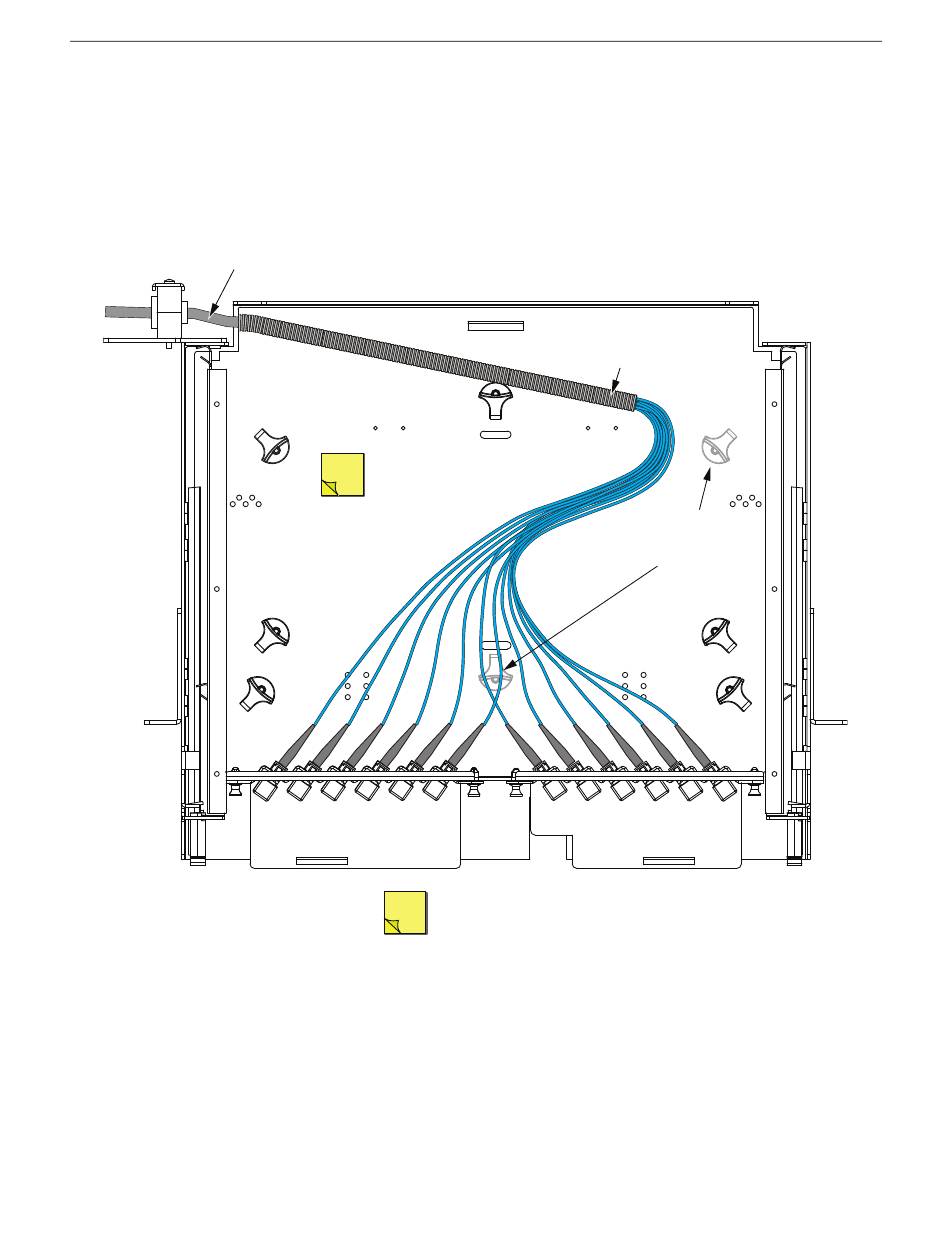

Figure 25. Routing MPO Trunk Cable, Left Side Entry (MPO Adapter Packs)
Figure
CABLES SHOULD BE LONG
ENOUGH TO COMPLETELY
PULL OUT THE SLIDING TRAY
- DRAWER IN CLOSED POSITION
NOTE:
- TOP COVER NOT SHOWN, FOR CLARITY
- REAR COVER REMOVED
ADCP-92-082 • Issue 2 • 10/2008
25. "Left" is defined from the front of
CONVOLUTED
TUBING
(PROVIDED)
REMOVE THESE
RADIUS LIMITERS
FOR LEFT SIDE
ENTRY
22181-A
