ADCP-92-082 • Issue 2 • 10/2008
2.7

Installing MPO Cassettes

The 1U panel accommodates two MPO cassettes, the 2U accommodates four. The procedure for
the 1U and 2U is the same. To install or remove an MPO cassette, pull the Nylatch plunger
fastener out, orienting the MPO as shown in
INSTALL LEFT SIDE MPO
CASSETTES WITH ADAPTERS
ANGLED TOWARD THE LEFT
NYLATCH PLUNGER FASTENERS MUST BE
PULLED OUT BEFORE INSERTING THE
MPO CASSETTES INTO MOUNTING HOLES
Page 12
© 2008, ADC Telecommunications, Inc.
INSTALL MPO CASSETTES
IN ORIENTATION SHOWN
MAKE SURE NYLATCH
PLUNGER FASTENERS
ARE PULLED OUT
"OUT"
POSITION
IN PANEL.

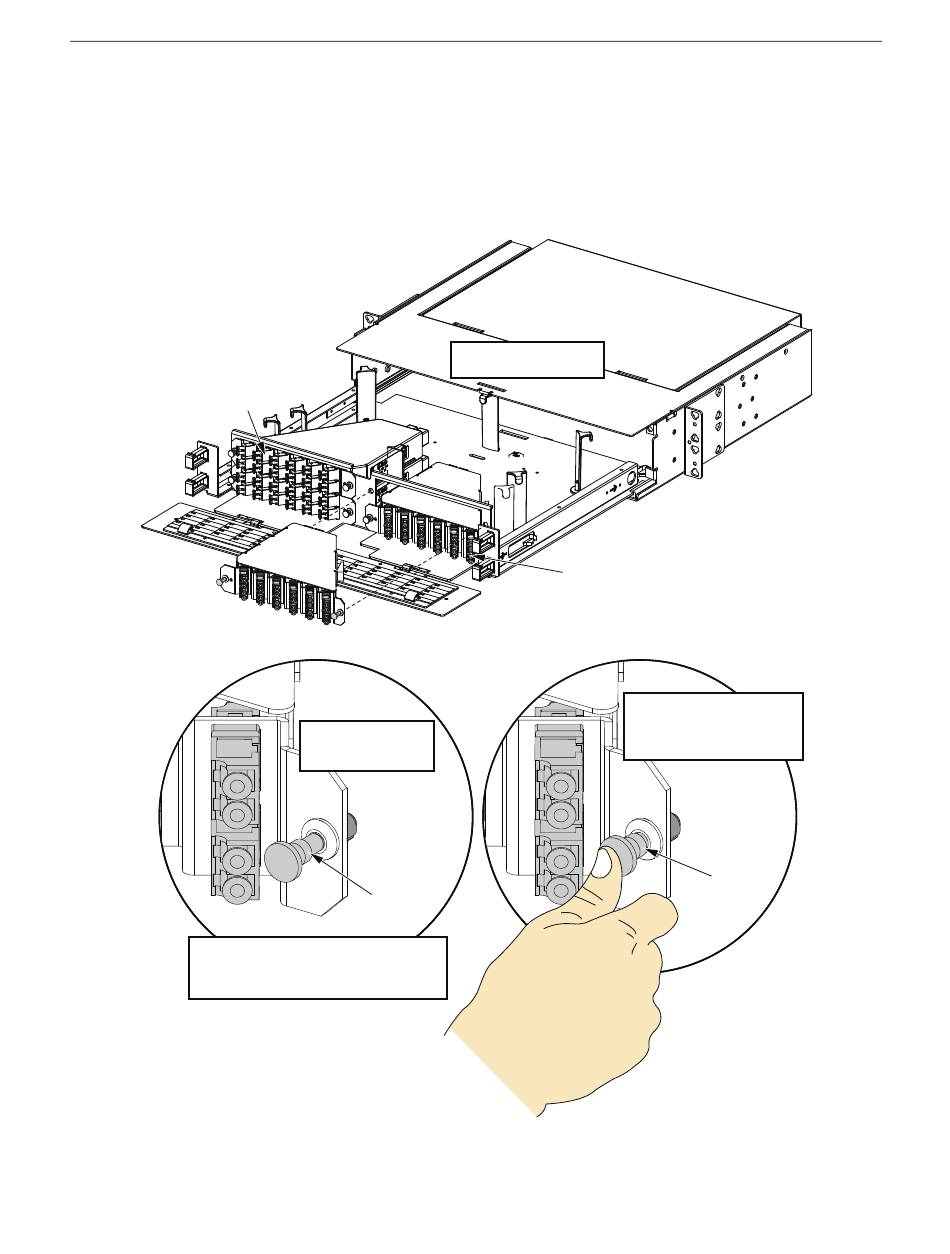

Figure 12. Installing MPO Cassettes
Figure 12.
INSTALL RIGHT SIDE MPO
CASSETTES WITH ADAPTERS
ANGLED TOWARD THE RIGHT
AFTER INSTALLING MPO
CASSETTE, PUSH NYLATCH
PLUNGER FASTENERS "IN" TO
LOCK CASSETTE INTO PANEL
"IN"
POSITION
22059-A
