Guide for installation and adjustments

18.1

Complementary Safety Devices Swing Doors

If there is any risk for finger jam, add finger protection strip at the hinge side for internal doors,
article No. 833334 or add finger protection roll for external doors, article No. 833333.
18.2

Swing Doors Opening and Closing Time

Adjust, as a minimum, the operator's opening and closing time according to the diagram below.
18.2.1

How to find the correct opening and closing time

• Measure the door width.
• If the door weight is unknown, follow the instructions in "Diagrams for door weight".
• Go into the diagram below to find the correct minimum opening/closing time "t".
Example: If the door width is 1,1 m and the door weight is 80 kg the minimum opening and closing
time will be ~4,3 seconds.

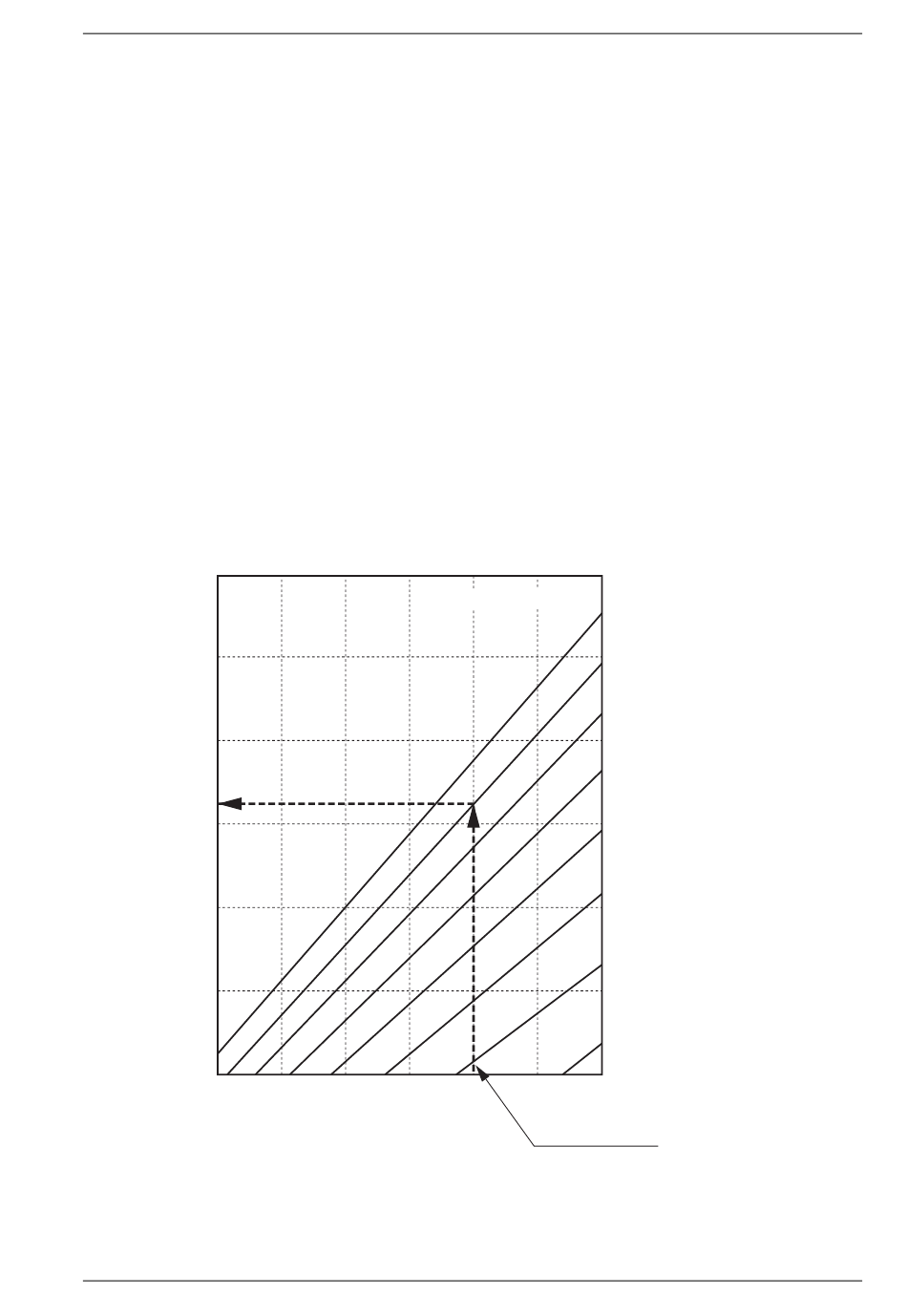

Minimum Swing Door Opening/Closing Time, t
6
5
4
3
0,7
Door Width in metres
1009728-en-9.0
for LE Compliance [s]
0,8 0,9 1
Issue 2021-02-24
18 Guide for installation and adjustments
Door Weight
100 kg
90 kg
80 kg
70 kg
60 kg
50 kg
40 kg
30 kg
1,1 1,2 1,3
Example
