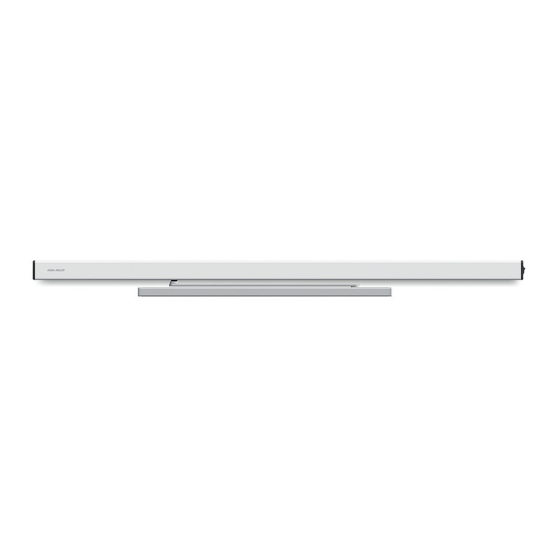

Assa Abloy SW60 Owner's Manual

Swing door operator
Hide thumbs Also See for SW60:
Table of Contents

Advertisement

Quick Links

Owner's Manual
Entrance Systems
Swing Door Operator
ASSA ABLOY SW60

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SW60 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Assa Abloy SW60

Summary of Contents for Assa Abloy SW60

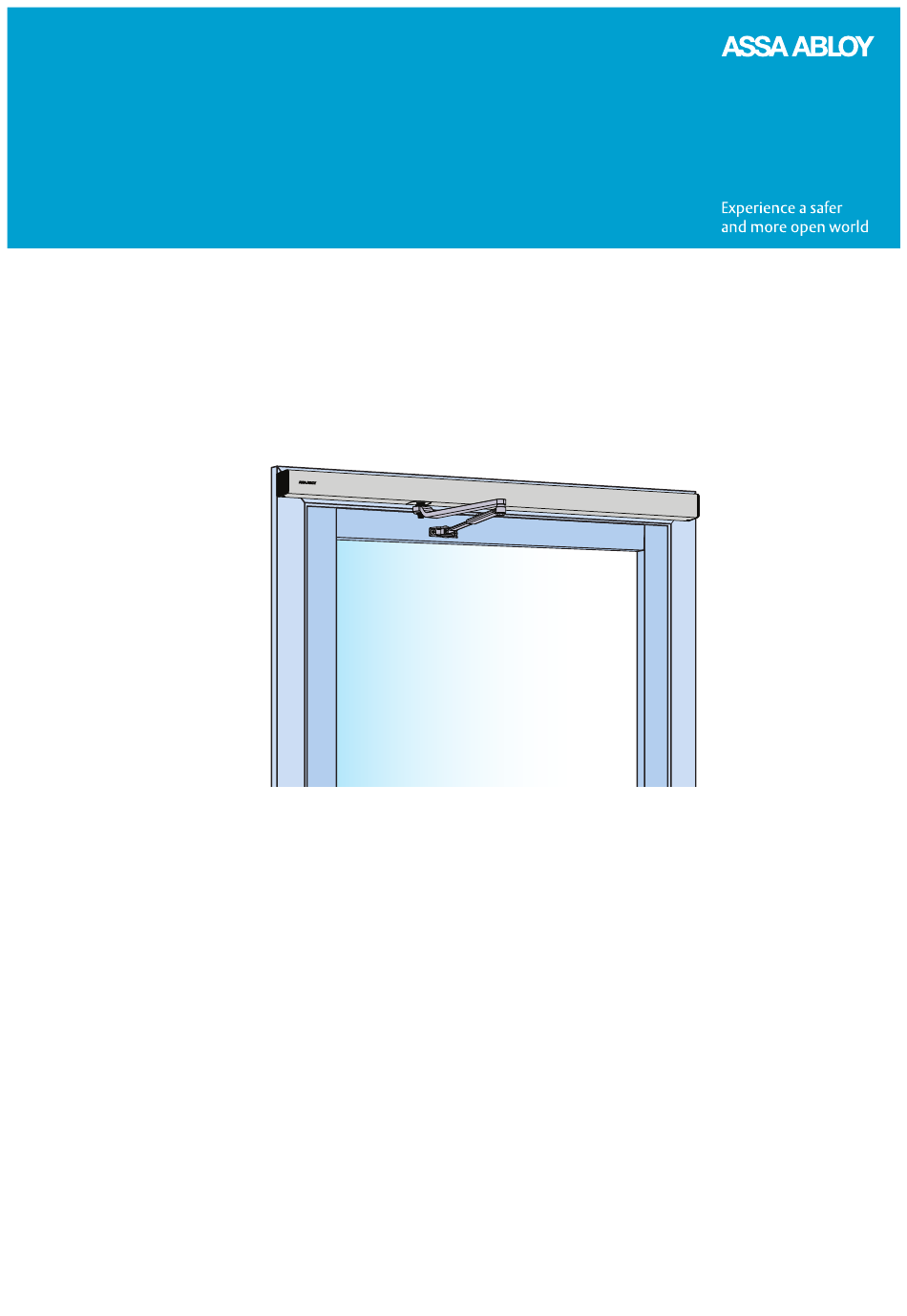

  • Page 1 Owner's Manual Entrance Systems Swing Door Operator ASSA ABLOY SW60...

  • Page 2: Table Of Contents

    Troubleshooting ..........................Service/Maintenance ......................... Other products from ASSA ABLOY Entrance Systems ............. ASSA ABLOY as word and logo are trademarks owned by the ASSA ABLOY Group © ASSA ABLOY Entrance Systems, 2021 Technical data subject to change without notice. Backtrack information: folder:Workspace Main, version:a637, Date:2021-02-03 time:11:19:02, state: Frozen Issue 2021-02-03 1019650-en-US-5.0...

  • Page 3: Instructions For Safe Operation

    Instructions for safe operation Failure to observe the information in this manual may result in personal injury or damage to equipment. To reduce the risk of injury to persons - use this oper- ator with single swinging only. Do not use the equipment if repair or adjustment is necessary.

  • Page 4: Congratulations On Your New Automatic Door

    Congratulations on your new automatic door ASSA ABLOY Entrance Systems has developed automatic doors for more than 50 years. State-of-the- art technology and carefully tested materials and components provide you with a superior product. As with all other technical products, your automatic door requires periodic maintenance and service.

  • Page 5: Warranty

    ASSA ABLOY Entrance Systems-authorized resellers shall extend this warranty to end-users only, but have no authority to extend a greater or different warranty on behalf of ASSA ABLOY Entrance Systems. A service agreement with ASSA ABLOY Entrance Systems will help secure the availability of a fully operational system and will give priority at call-out, thus minimizing the time that the equipment is unusable.

  • Page 6: Intended Use

    Intended use The ASSA ABLOY SW60 is an automatic swing door operator developed to make life easier for everyone who can benefit from automatic doors. The ASSA ABLOY SW60 is a low-energy operator using a DC motor and a gear-reduction system to drive an arm system, which opens the door. It is to be installed on the interior swing doors.
  • Page 7 Install the app Download the ASSA ABLOY Swing Door Manager app from the Google Play or App Store. Log in to the app with owner 1019650-en-US-5.0 Issue 2021-02-03...
  • Page 8 Learn Press Learn button on Scan QR code on the label CU for more than 4 that attached to the flat seconds. cable of CU. Note: If any issues with learning or could not connect to the door after learning, please check the connectin of mains power, installation of the unit or the arm system, then restart learning again.
  • Page 9 Add user by owner Note: Owner can add up to 7 users. Remove user by owner 1019650-en-US-5.0 Issue 2021-02-03...
  • Page 10 Log in to the app with user At the same time, owner click “Add user” and show the QR code. User scan the QR code from owner. The differences between owner and user Functions Owner User Factory reset Show users Add user Remove user Issue 2021-02-03...

  • Page 11: Door Mode Functionality

    Door mode functionality HOLD/AUTO/OFF switch Function Program HOLD The door can be held at any position when opening or closing. AUTO Impulses from activation units connected to inner impulse or outer impulse will initiate a door open cycle. The door can be opened with the inner / outer wall or jamb-mounted contact switches.
  • Page 12 Additional operational functions can be accessed through the app: Active Errors Active errors can be displayed. Active Events Active events can be displayed. Event Log Events and errors can be saved. Statistics Cycles of the actions can be calculated. Issue 2021-02-03 1019650-en-US-5.0...
  • Page 13 Push and go When the door is manually pulled / pushed to open, it will perform an open cycle. Push and go is not active in mode "Off / Closed". Power assist The “Power Assist” function will help the user to open the door manually. If “High”...

  • Page 14: Regular Safety Checks

    Let the door close after an impulse ensuring nothing prevents the door from sonnel. closing and locking (if regulations require it). Fire doors Take appropriate measures. Contact your ASSA ABLOY Entrance Systems representative. For contact information, see last page. Issue 2021-02-03 1019650-en-US-5.0...
  • Page 15 CLEANING The best way to remove dust and dirt from the ASSA ABLOY SW60 is to use water and a soft cloth or a sponge. A gentle detergent may be used. To maintain the quality of the surface treatment, the surfaces should be cleaned once/four months period.
  • Page 16 SIGNAGE according to ANSI/BHMA A156.19 Apply to both sides of the door. When using a wall switch, apply to both sides of the door. Apply the push decal to the push side and the pull decal to the pull side of the door. 75-20-102 75-20-102 ACTIVATE...

  • Page 17: General Accessories

    Check that nothing is jammed beneath the door. The door does not close Change the setting of the control switch. Check that nothing is jammed beneath the door. If the problem continues, please contact your ASSA ABLOY Entrance Systems representative. 1019650-en-US-5.0 Issue 2021-02-03...

  • Page 18: Service/Maintenance

    The table below shows the recommended interval in months, when to replace parts during preventive maintenance. Talk to your ASSA ABLOY Entrance Systems representative to learn more about our service offering.
  • Page 20 Building on the long-term success of the Besam, Albany and Megadoor brands, we offer our solutions under the ASSA ABLOY brand. Our products and services are dedicated to satisfying end-user needs for safe, secure, convenient and sustainable operations.
