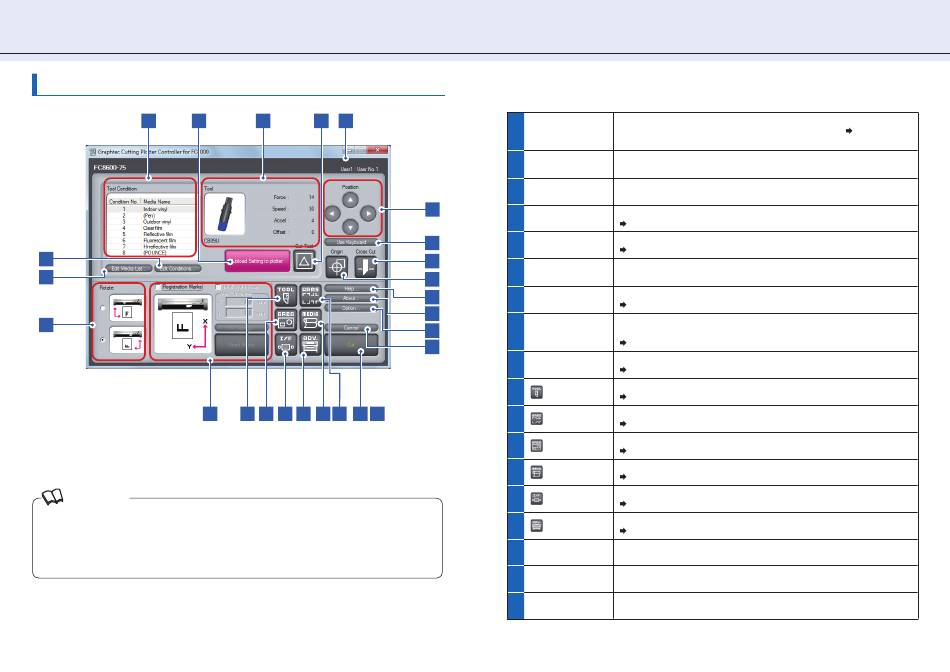

Nomenclature ( Main Screen)
3 6
4
5
8
9
You can select a tool condition suitable for the plotted media or run a test cutting or cutting by
specifying the position of the tool and the orientation of the media. You can also display the help and
version information of the controller or open the screen for advanced and optional settings.
Reference
Some of the buttons are assigned keyboard shortcuts. The shortcut keys are as follows:
−[Use Keyboard]→[F6]
−[Origin]→[F5]
−[Cut Test]→[F8]
2 7 1
10 12 14 15 13 11 17 18
1
User1/2: User Name
Settings Display
2
Area
3
Tool Condition
25
4
Edit Conditions
24
5
Edit Media List
23
Upload Setting to
6
22
plotter
21
7
Cut Test
20
19
8
Rotate
16
Registration
9
Marks Setting
10
( TOOL)
11
( ARMS)
12
( AREA)
13
( MEDIA)
14
( I/F)
15
( ADV.)
16
*1
Cancel
17
*1
Cut
18
*2
Close
9
1. In t ro d u c t io n t o t h e C o nt roller
Indicates the mode to which the plotter is set: User1 or User2. The
name that is set in [User Name] on the [Option] screen ( page 32) is
displayed as the user name.
Displays the settings (tool, force, speed, accel, and offset) for the tool
condition that is currently selected.
Lists tool conditions from Condition No. 1 through 8. Click a condition to
select it.
Opens the [Edit Conditions] screen.
2. Setting Tool Conditions [CONDITION] (page 11)
Opens the [Edit Media List] screen.
3. Managing Media List (page 16)
Overwrites the condition settings (tool conditions) in the plotter by the
settings (tool conditions) in the controller.
Runs a test cutting under the tool condition that you set.
Test Cutting Patterns (page 15)
Sets the plotting direction against the media or the direction to set the
media printed by the printer in the plotter.
Selecting Rotation (page 10)
Used for a cutting where the registration mark is scanned.
7. ARMS Setting [ARMS] (page 24)
Opens the [Tools Setting] screen.
4. Tools Setting [TOOL] (page 18)
Opens the [ARMS Setting] screen.
7. ARMS Setting [ARMS] (page 24)
Opens the [Area Parameters] screen.
5. Setting Area Parameters [AREA] (page 21)
Opens the [Media Setting] screen.
8. Media Setting [MEDIA] (page 28)
Opens the [Interface] screen.
6. Interface Setting [I/F] (page 23)
Opens the [Advance] screen.
9. Advance [ADV.] (page 30)
Cancels the setting and closes the controller.
Cuts the media based on the settings you made.
Cancels the setting and closes the controller.
