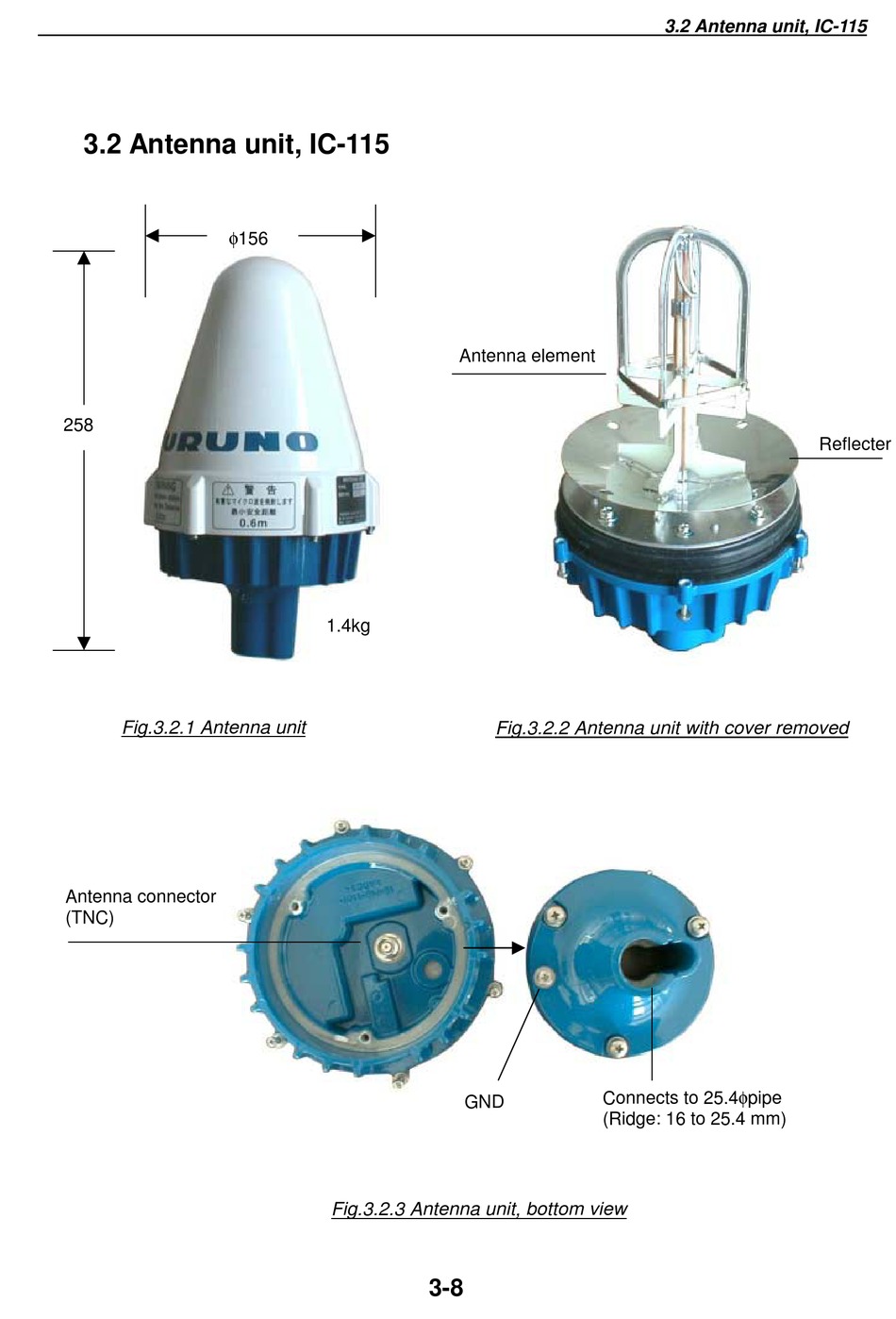

3.2 Antenna unit, IC-115

φ156
258
Fig.3.2.1 Antenna unit
Antenna connector
(TNC)
Antenna element
1.4kg
Fig.3.2.2 Antenna unit with cover removed
GND
Fig.3.2.3 Antenna unit, bottom view
3-8
3.2 Antenna unit, IC-115
Connects to 25.4φpipe
(Ridge: 16 to 25.4 mm)
Reflecter
