** Handling flat cable connector **
FDD connector
Note 1) Disconnecting flat cable from J6
To disconnect the flat cable, gently, set the locking tab to vertical position and then pull
out the cable from the connector. Excess force will damage the connector tab. To
connect the cable, reverse the above procedure.

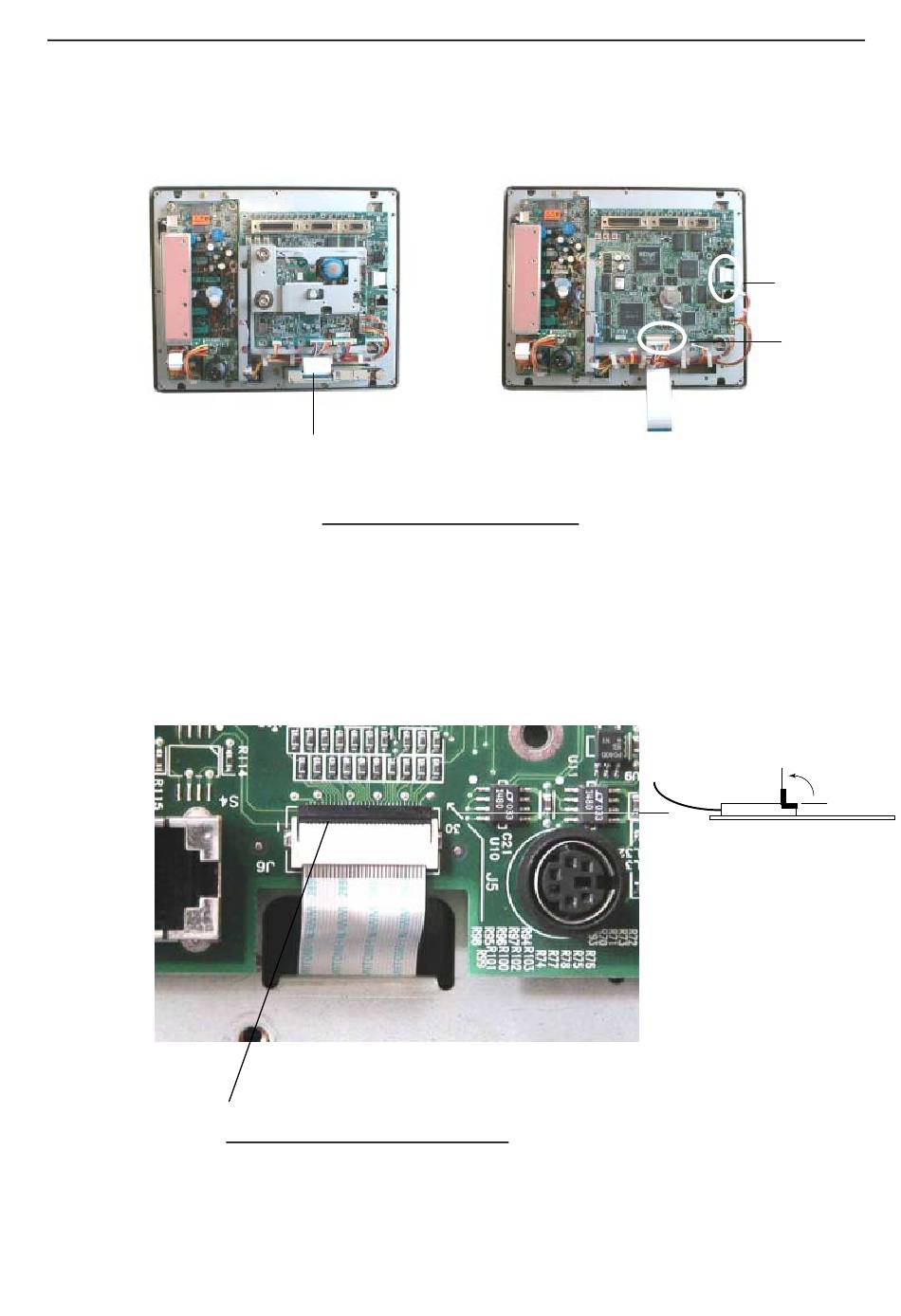

Fig.3.1.11 Flat cable connector, J6
Fig.3.1.10 Connector allocation
3-6
3.1 Terminal unit, IC-215
note1)
J6
note2)
J9
Slowly
Flat cabl
J6
p.c.b
