7.1 Status display

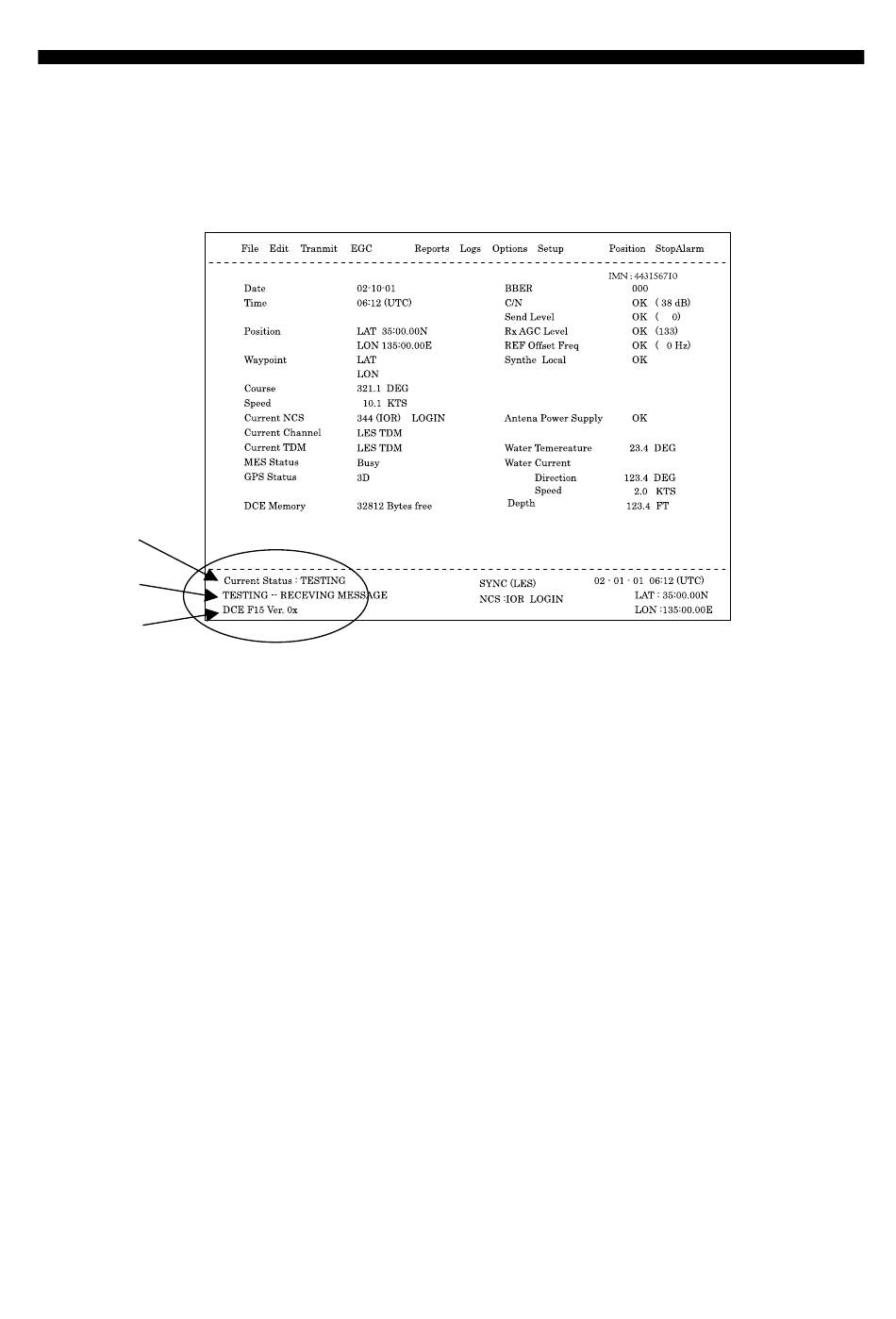

7.1.1 Display of bottom left

c
b
a
The display of "a" part
1. "DCE F15 Ver.0x": Normally displaying the version number of RF CON/CPU board.
2. "Running Report Program (POLL)": During Program Report by Polling.
3. When detecting the error, the following messages appear.
"TROUBLE: ANT power voltage abnormality"
"TROUBLE: ALARM UNIT Fault"
"TROUBLE: DMC Connection abnormality"
"TROUBLE: DISTRESS ALERT UNIT Fault"
"TROUBLE: Synthesizer UNLOCK"
"TROUBLE: Carrier Power Level"
"TROUBLE: GPS module"
"Memory full for received msg."
4. "TX ON": During transmitting.

Chapter 7. Messages

Note) "FFA" is added when the device is FFA version.
Note) This message is not displayed by FFA version.
Note) This message is not displayed by FFA version.
7-1
