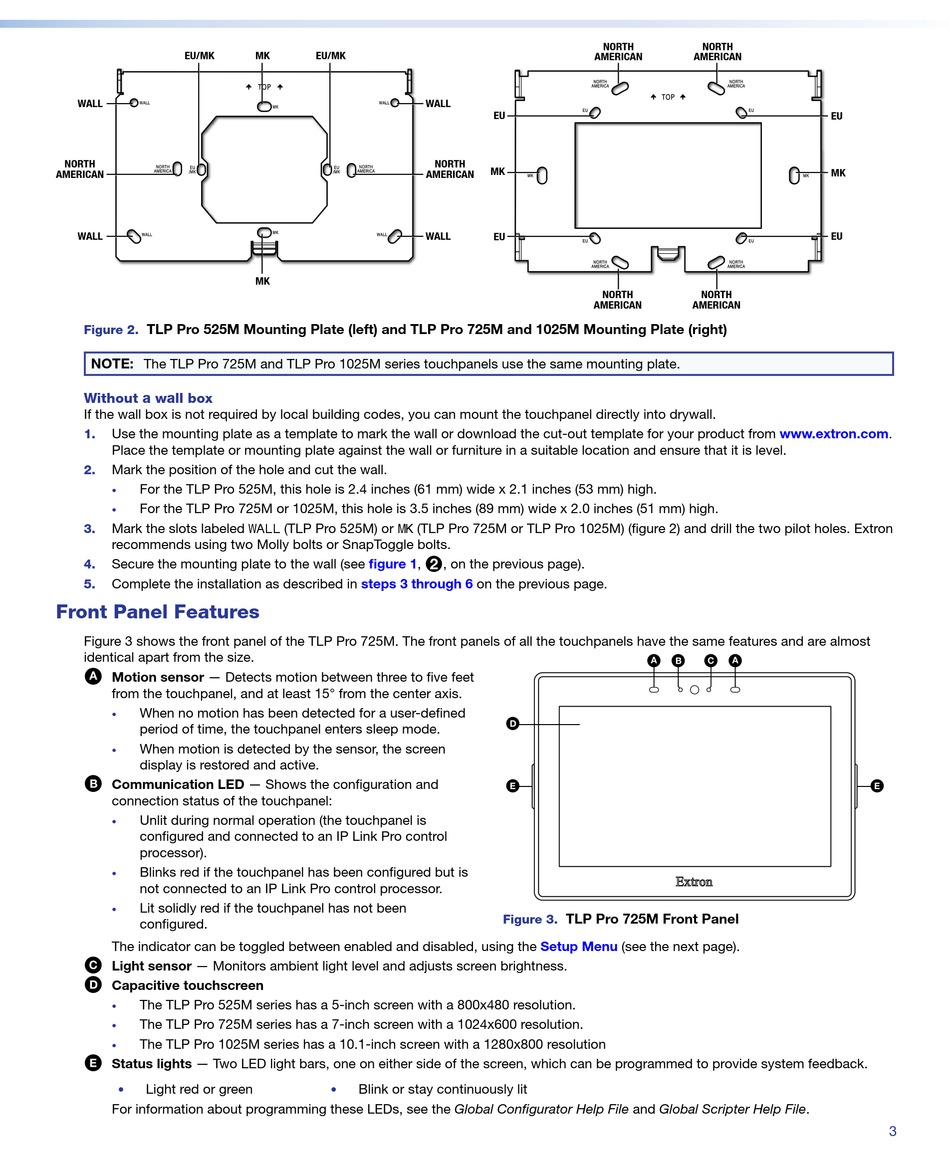

TLP Pro 525M Mounting Plate (left) and TLP Pro 725M and 1025M Mounting Plate (right)
Figure 2.
NOTE: The TLP Pro 725M and TLP Pro 1025M series touchpanels use the same mounting plate.
Without a wall box
If the wall box is not required by local building codes, you can mount the touchpanel directly into drywall.
Use the mounting plate as a template to mark the wall or download the cut-out template for your product from www.extron.com.
1.
Place the template or mounting plate against the wall or furniture in a suitable location and ensure that it is level.
Mark the position of the hole and cut the wall.
2.
For the TLP Pro 525M, this hole is 2.4 inches (61 mm) wide x 2.1 inches (53 mm) high.
•
For the TLP Pro 725M or 1025M, this hole is 3.5 inches (89 mm) wide x 2.0 inches (51 mm) high.
•
Mark the slots labeled WALL (TLP Pro 525M) or MK (TLP Pro 725M or TLP Pro 1025M) (figure 2) and drill the two pilot holes. Extron
3.
recommends using two Molly bolts or SnapToggle bolts.
Secure the mounting plate to the wall (see
4.
Complete the installation as described in
5.

Front Panel Features

Figure 3 shows the front panel of the TLP Pro 725M. The front panels of all the touchpanels have the same features and are almost
identical apart from the size.
A
Motion sensor — Detects motion between three to five feet
from the touchpanel, and at least 15° from the center axis.
When no motion has been detected for a user-defined
•
period of time, the touchpanel enters sleep mode.
When motion is detected by the sensor, the screen
•
display is restored and active.
B
Communication LED — Shows the configuration and
connection status of the touchpanel:
Unlit during normal operation (the touchpanel is
•
configured and connected to an IP Link Pro control
processor).
Blinks red if the touchpanel has been configured but is
•
not connected to an IP Link Pro control processor.
Lit solidly red if the touchpanel has not been
•
configured.
The indicator can be toggled between enabled and disabled, using the
C Light sensor — Monitors ambient light level and adjusts screen brightness.
D
Capacitive touchscreen
The TLP Pro 525M series has a 5-inch screen with a 800x480 resolution.
•
The TLP Pro 725M series has a 7-inch screen with a 1024x600 resolution.
•
The TLP Pro 1025M series has a 10.1-inch screen with a 1280x800 resolution
•
E
Status lights — Two LED light bars, one on either side of the screen, which can be programmed to provide system feedback.
Light red or green
•
For information about programming these LEDs, see the Global Configurator Help File and Global Scripter Help File.
