Panel Features

This section describes:
•
•
•

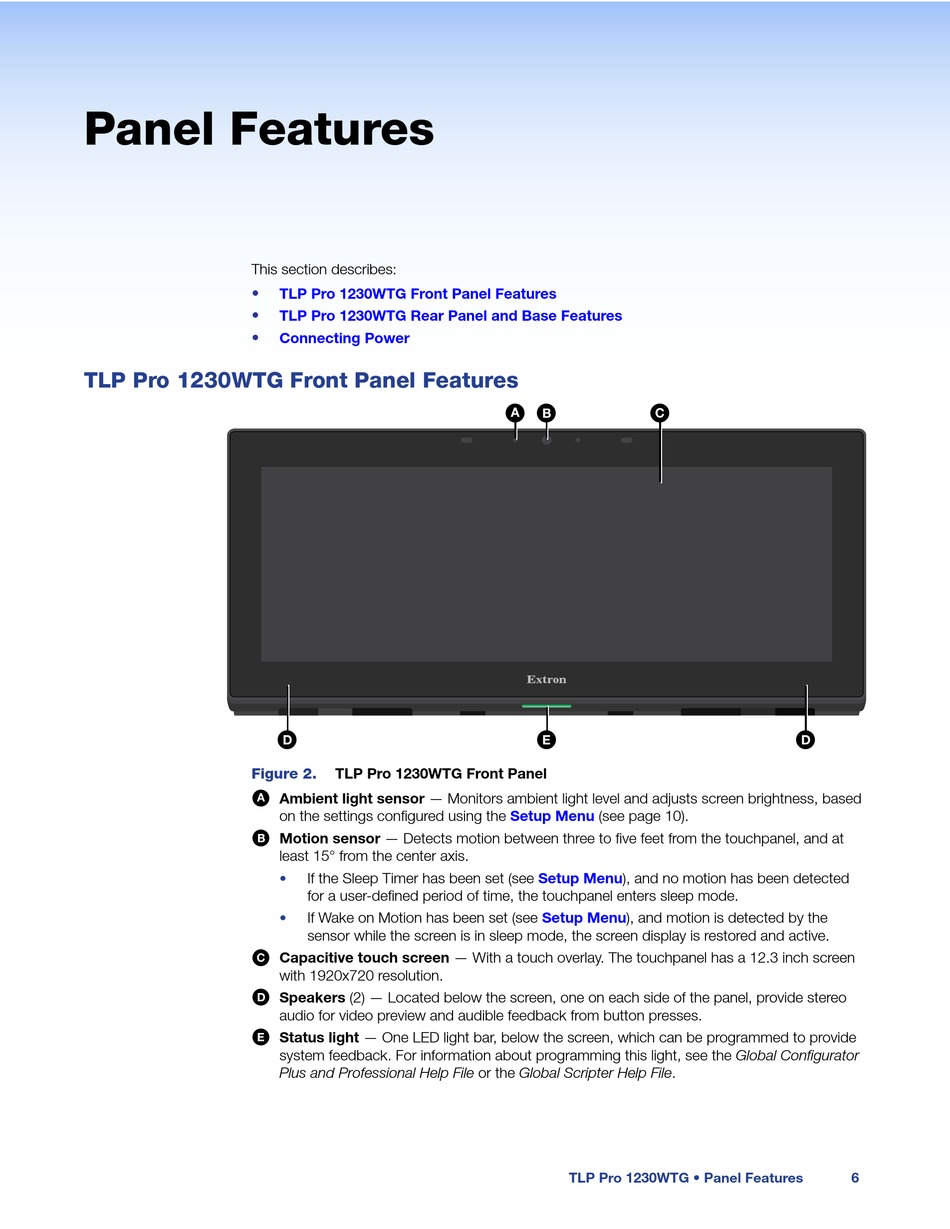

TLP Pro 1230WTG Front Panel Features

Figure 2.
A
B
C
D
E
TLP Pro 1230WTG Front Panel Features
TLP Pro 1230WTG Rear Panel and Base Features
Connecting Power
D
TLP Pro 1230WTG Front Panel
Ambient light sensor — Monitors ambient light level and adjusts screen brightness, based
on the settings configured using the
Motion sensor — Detects motion between three to five feet from the touchpanel, and at
least 15° from the center axis.
If the Sleep Timer has been set (see
•
for a user-defined period of time, the touchpanel enters sleep mode.
If Wake on Motion has been set (see
•
sensor while the screen is in sleep mode, the screen display is restored and active.
Capacitive touch screen — With a touch overlay. The touchpanel has a 12.3 inch screen
with 1920x720 resolution.
Speakers (2) — Located below the screen, one on each side of the panel, provide stereo
audio for video preview and audible feedback from button presses.
Status light — One LED light bar, below the screen, which can be programmed to provide
system feedback. For information about programming this light, see the Global Configurator
Plus and Professional Help File or the Global Scripter Help File.
A B C
E
Setup Menu (see page 10).
Setup Menu), and no motion has been detected
Setup Menu), and motion is detected by the
TLP Pro 1230WTG • Panel Features
D
6
