Wlan-Communications - Cleco CellCore CCBA Programming Manual

3.9

WLAN-Communications

In this menu, information about the WLAN connection is to be found. To configure WLAN settings, use the
LiveWire RF Configuration software. See Document P2372JH.
If the tool is programmed so that WLAN settings are assigned via DHCP, this will appear to the right near
the "-" symbol as long as no connection could be established.
>

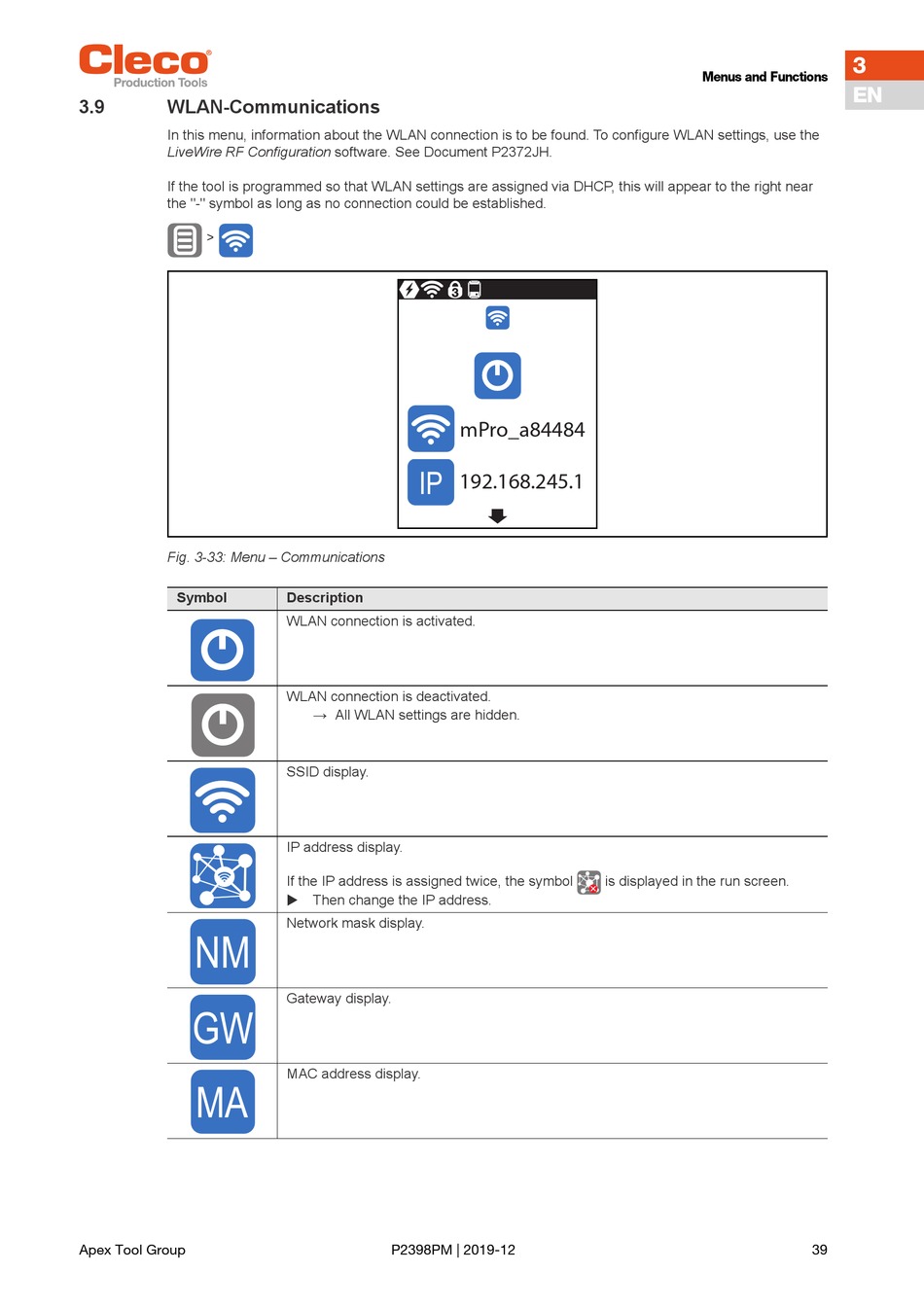

Fig. 3-33: Menu – Communications
Symbol
NM
GW
MA
Apex Tool Group
mPro_a84484
IP
192.168.245.1
Description
WLAN connection is activated.
WLAN connection is deactivated.
→ All WLAN settings are hidden.
SSID display.
IP address display.
If the IP address is assigned twice, the symbol
 Then change the IP address.
Network mask display.
Gateway display.
MAC address display.
P2398PM | 2019-12
Menus and Functions
is displayed in the run screen.
3
EN
39
