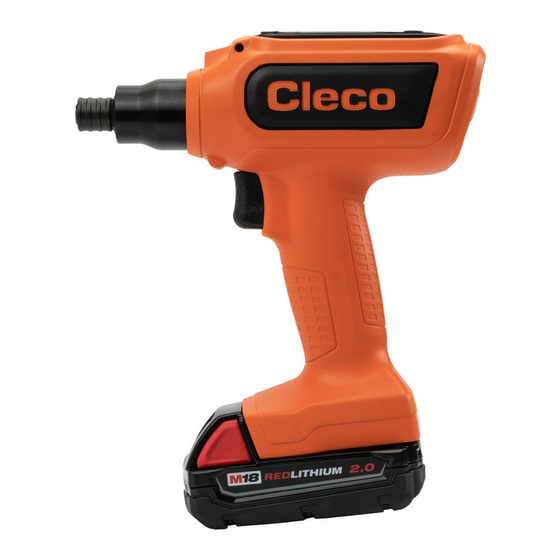

Cleco CellCore CCBPW04Q Pocket Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
CellCore Demo
Pocket Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the CellCore CCBPW04Q and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cleco CellCore CCBPW04Q

Summary of Contents for Cleco CellCore CCBPW04Q

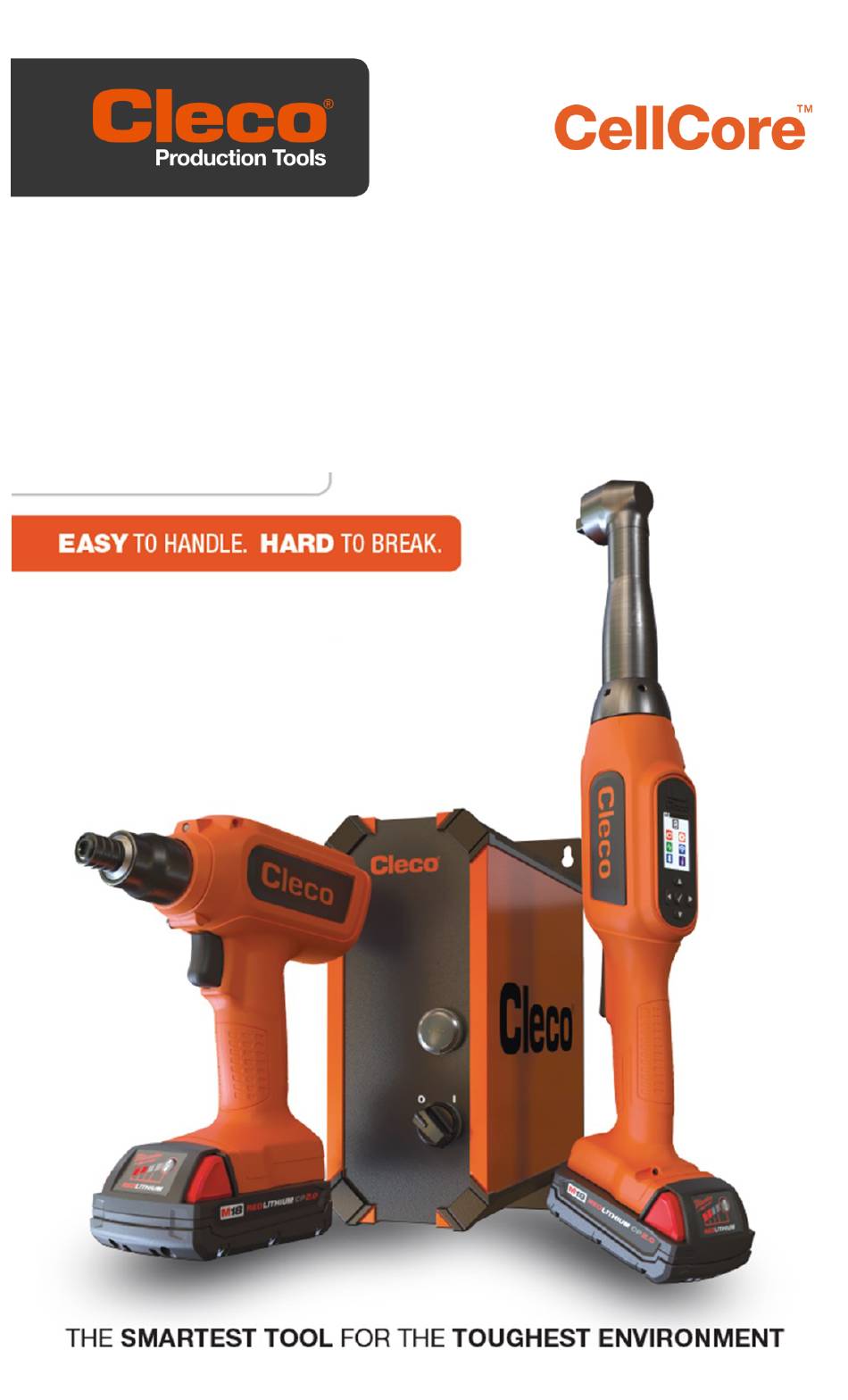

  • Page 1 CellCore Demo Pocket Guide...

  • Page 2: Inventory Check

    1. Inventory Check Do you have the essentials?  Tool  Battery  Charger  Don’t forget the small items!  Test joint, socket, C-clamp, controller and ac-  cess point (if applicable) Does it look presentable?  Free of dirt, grime, smudges, rust, and ...
  • Page 3 2. Walk the Line Do this the day of the demo  Listen  What are their pain-points?  Ergonomics  Speed  Reliability  Programming  Accuracy requirement? CellCore is 2.0 cm/  cmk @ +/- 10%; designed specifically for quality critical applications in MVI, but cus- tomer requirements may vary Observe...
  • Page 4 3. Talk About The Durability & Reliability 500k Cycles Maintenance Free  Increase uptime with more maintenance free  cycles Assembly Line Tough  Drop tested up to 5 feet  Accuracy guaranteed for life of the tool  2.0 Cm/Cmk at +/- 10% accuracy ...
  • Page 5 4. Talk About The Ergonomics Pistol tools start at 2.16lb (.98kg)  Up to 23% lighter than LiveWire  Right Angle tools start at 3.75lb (1.7kg)  Up to 35% lighter than LiveWire  2.0 Ah batteries weighs 0.94lb (.43kg) ...
  • Page 6 5. Talk About the Ease of Use FastApps can be programmed on the tool through  intuitive user interface Up to 10 FastApps can be stored on each tool and  selected from the run screen with the push of a but- User interface is icon based for multi-lingual plants ...
  • Page 7 6.Talk About the Multi-Color Worklight Multicolor LED worklight illuminates workpiece with  OK/NOK indication Green—OK  Red—NOK  Blue—Batch OK  Offers additional operator feedback for error pre-  vention Programmable in 4 different modes:  Light disabled  Tool light on during partial trigger pull ...
  • Page 8 Talk About The Stay Alive Function Tool will stay connected and on while the battery is  being changed (up to 15 seconds) Saves boot time  Saves reconnect to wifi time  Prevents tool from losing batch count  EASY TO HANDLE.
  • Page 9 Talk About The Versatility Tool can be ran with or without a controller  With a controller:  Operates identical to LiveWire series  Can connect to legacy mPro controllers  (Primary, Hybrid and Master) Connect up to 16 tools on an mPro 400 con- ...
  • Page 10 Talk About The mPro200 Controller 10 cordless tools pair to one controller  Compatible with CellCore, LiveWire and I-Wrench  Compact size (LxWxH) (12.6” x 4.4” x 13.4”)  VGA output to remotely mount a monitor or screen  Connections: ...
  • Page 11 Tool Programming Overview The  button is the universal “OK” or select  button Holding the left arrow will take you back one  screen Holding the up arrow will take you to the  run screen Reverse can be activated from the run screen by ...
  • Page 12 Demo Sheet - Tool Programming 1 1. From the run screen, press the right button to go to the main menu 2. Highlight the “FastApps” button and press the check () button . NOTE: The cursor shows the current se- lection with a blue box around the icon 3.
  • Page 13 Demo Sheet - Tool Programming 2 4. Select application 1 and press the  button 5. Highlight the direction of rotation sym- bol and select Clockwise (CW) or Counter -Clockwise (CCW). Press and hold the left button to go back to the previous screen.
  • Page 14 Demo Sheet - Tool Programming 3 7. Using the directional keys, set the tar- get torque value in Nm (default). Cleco recommends setting the torque value to 5Nm on the pistol and 10 Nm on the right angle unless the test joint is fixtured in a vice.
  • Page 15 Demo Sheet - Tool Programming 4 10. You’re finished! The tool will automatically program the limit and shiftdown values with the default values seen below. You can custom- ize these values with the advanced programming screen. To learn more about advanced programming and all of the other settings in the tool, please view the manual P2398PM-EN.
  • Page 16 CellCore Programming Tree EASY TO HANDLE. HARD TO BREAK.
  • Page 17 Product Snapshot – Quick Reference EASY TO HANDLE. HARD TO BREAK.
