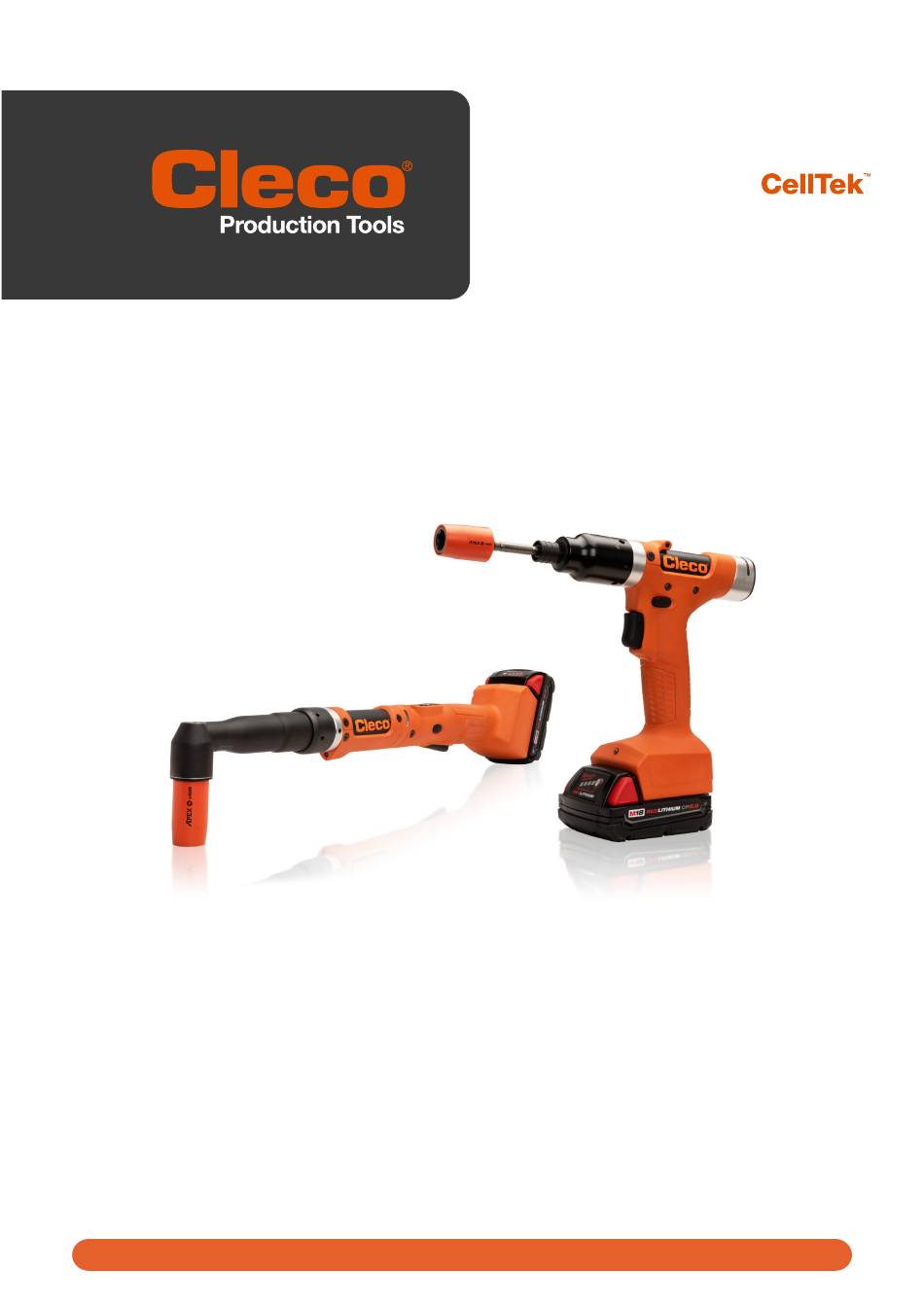

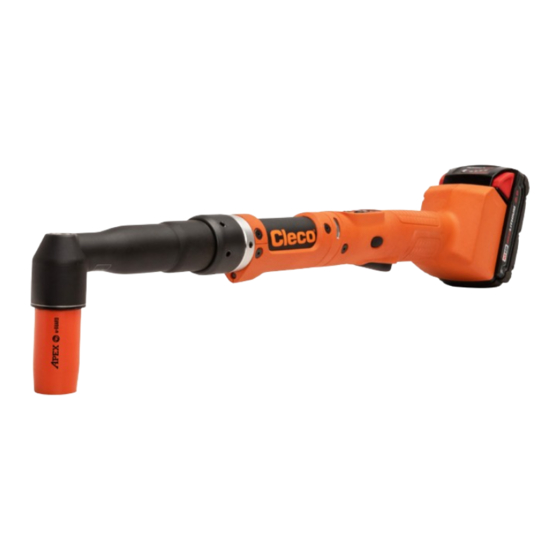

- Page 1 Quick Installation Guide P2545KA-EN 2022-12 | REV C CTBA & CTBP Data Transmission For additional product information visit our website at www.ClecoTools.com...
- Page 2 Apex Tool Group reserves the right to modify, supplement, or improve this document or the product with- out prior notice. Trademark Cleco Production Tools is a registered trademark of Apex Brands, Inc. Apex Tool Group 670 Industrial Drive Lexington, SC 29072...
-
Page 3: Table Of Contents
Content About this document ................4 Other documents ......................4 Symbols in the text ......................4 System Layout ..................5 WLAN communication ....................5 2.1.1 Tool Data ........................5 2.1.2 Country-specific channel settings ................... 6 2.1.3 Cell planning for access point ..................7 Bluetooth communication .................... -
Page 4: About This Document
About this document About this document This document is intended for qualified employees responsible for installation and maintenance (adminis- trators, installers, maintenance technician, service, operator). It contains information for save, appropriate installation and handling. This document is not sufficient for planning complex •... -
Page 5: System Layout
System Layout System Layout The communication between the controller and the tool is possible via WLAN or Bluetooth. The tool can communicate with a mPro200GC-AP or mPro400GCD controller. To communicate with the controller, the tools must be in the mPro mode. WLAN communication The system layout described is based on communication via WLAN. -
Page 6: Country-Specific Channel Settings
System Layout Feature Data Sensitivity -95 dBm (typ. @ 1 Mbps DSSS, 2.4 GHz) -66.3 dBm (typ. @ 40 MHz MCS7 MM 4K) -92.5 dBm (typ. @ 6 Mbps OFDM, 5 GHz) -69.3 dBm (typ. @ 40 MHz MCS7 MM 4K, 5 GHz) Modulation CCK/DSSS/OFDM 802.11ac/n Spatial... -
Page 7: Cell Planning For Access Point
System Layout Band Channel Frequency in World Europe USA/ Canada World 5.620 – – 5.640 – – 5.660 – – 5.680 – 5.700 – Legend x: Approved and available -: Not permissible, blocking necessary o: Permissible with limited power to 20 dBm (SRD) 2.1.3 Cell planning for access point Each channel operates with a frequency range of 22 MHz. -
Page 8: Bluetooth Communication
System Layout SSID 2 SSID 3 SSID 4 SSID 5 SSID 7 SSID 6 SSID 8 SSID 9 Fig. 2-4: Idealized radio cells = Range of use of the tools, channel 60 Bluetooth communication Tool Standard CTBA & CTBP Bluetooth 4.2 P2545KA | 2022-12 | REV C Apex Tool Group... -
Page 9: Before Initial Operation
Before Initial Operation Before Initial Operation Requirements To set up the controller, the following items are required: Laptop/PC • Ethernet cable • Software S168691 mProRemote Professional • • Software S168688 LiveWire Utilities Monitor with VGA connector, keyboard and mouse (optional) •... -
Page 10: Initial Operation
Initial operation Initial operation The CellClutch tool and the tightening sequence are configured with the CLPC100 software. Configuring the access point 4.1.1 mPro200GC-AP In the factory setting, the IP address and the subnet mask of the controller are specified with a default value (Ethernet 1): Parameter Default value... -
Page 11: Mpro400Gcd
Initial operation Parameter Description Activate WLAN Communi- If the checkbox is activated, WLAN is enabled on the controller. cation The bluetooth function is deactivated. SSID Enter the SSID for the WLAN name (access point) to which a connection is to be established. -
Page 12: Configuring Rf Settings
Initial operation Configuring RF settings The tool RF settings can be configured with a laptop/PC. Perform the following steps only when WLAN communication is to be established. For Bluetooth communication see chapter 4.3 Configuring Bluetooth settings, page 14. Micro-B USB cable Tool Laptop/PC Fig. - Page 13 Initial operation Fig. 4-6: Communication with tool tab Parameter Description SSID Enter SSID. SSID must be identical to the access point. Encryption Select WPA/WPA2-PSK TKIP or WPA/WPA2-PSK AES. Encryption must be identical with access point. Network key Enter the network key. The network key must be identical to the access point.
-
Page 14: Configuring Bluetooth Settings
Initial operation Parameter Description Wireless channel There are two setting options: Auto The corresponding channel is automatically searched for. • The channels are unlocked and can be selected manually. • <Scan channels> Scan radio channel. The button is not active if a channel is selected at Wire- less channel. -
Page 15: Installing The Tool
Initial operation This tab is only displayed for the series mPro200GC(-AP) controller. Fig. 4-7: Bluetooth AP Configuration tab In the Bluetooth AP Configuration tab are the following adjustment possibilities: Parameter Description Activate Bluetooth Commu- If the checkbox is activated, bluetooth is enabled on the controller. nication The WLAN function is deactivated. - Page 16 Initial operation Parameter Description Group Name ► Select Tool Group. Name ► Select Tool Group. Type ► Select Cordless Tools. ► Select CellClutch. IP address / hostname ► Enter the IP address that has been assigned to the tool using the LiveWire Utilities software.
- Page 18 POWER TOOLS SALES & SERVICE CENTERS Please note that all locations may not service all products. Contact the nearest Cleco® Sales & Service Center for the appropriate facility to handle your service requirements. Sales Center Service Center NORTH AMERICA | SOUTH AMERICA...
